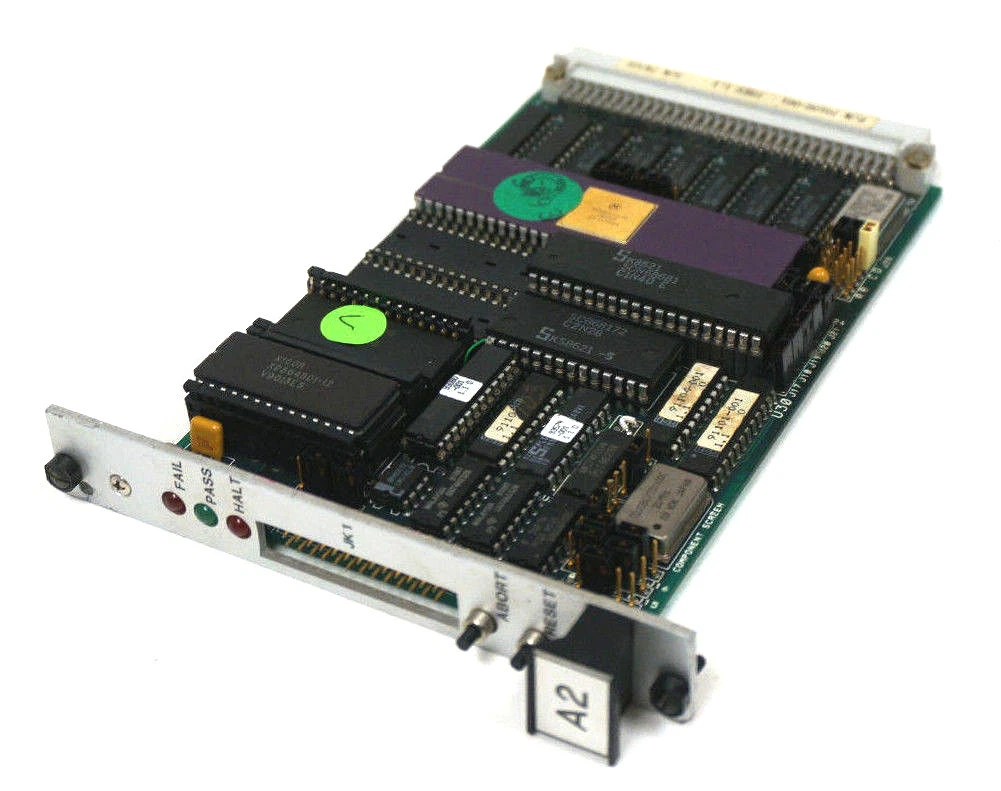

XYCOM 70600-001 PC board 70600001 REV 1.4

Precautions

Installation environment: The PC board should be installed in a dry, well ventilated, and dust-free environment, avoiding installation in places with corrosive gases, large amounts of dust or water vapor, to prevent electronic components from being corroded or damaged. At the same time, it is important to ensure that the installation location has good heat dissipation conditions to avoid affecting the performance and lifespan of the PC board due to high temperatures.

Static protection: When installing, disassembling, or maintaining PC boards, operators must wear protective equipment such as anti-static wristbands to avoid damage to the precision electronic components on the board caused by human static electricity. During the operation, direct contact with electronic components and circuits should be avoided as much as possible.

Power requirements: Strictly follow the working voltage range specified by the PC board to ensure the stability and purity of the power supply. Using inferior or non compliant power sources may cause the PC board to malfunction or even damage the board.

Software operation: When performing software operations such as program downloads and parameter settings, it is necessary to follow the steps in the operation manual to avoid program errors or system failures caused by improper operation. Before updating software versions, it is recommended to back up important data and programs.
