Allen Bradley Ultra3000 Servo Motor Replacement Guide

Summary of Replacement Operation Steps

When it is necessary to replace the faulty motor or cable on site, please follow the following procedure:

Record original system information

Driver model (e.g. 2098-DSD-020-SE)

Motor model (e.g. MPL-A220T-xx2xAA, pay attention to connector type)

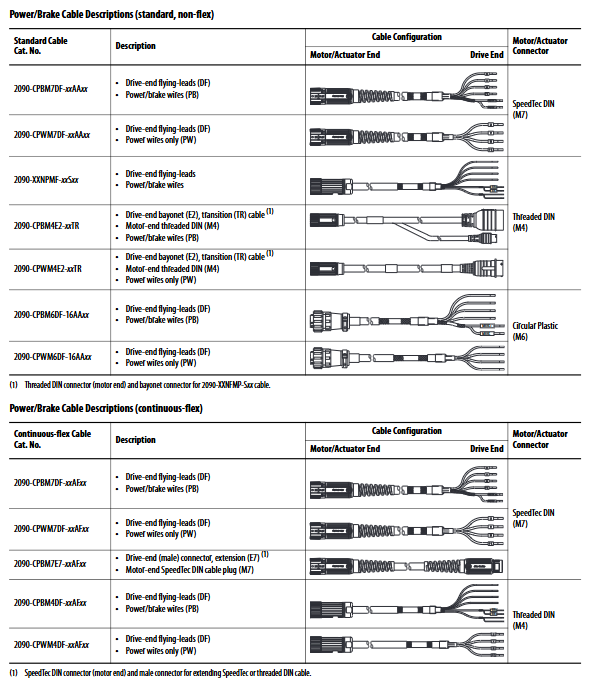

Cable model (power and feedback, pay attention to length and flexibility level)

Application load parameters (speed, acceleration, duty cycle, ambient temperature)

Select replacement component

If the motor connector is a bayonet type, upgrade to DIN type and order the matching cable at the same time.

Check the power level of the driver: The continuous locked rotor current of the new motor should be ≤ 90% of the rated current of the driver to leave a margin.

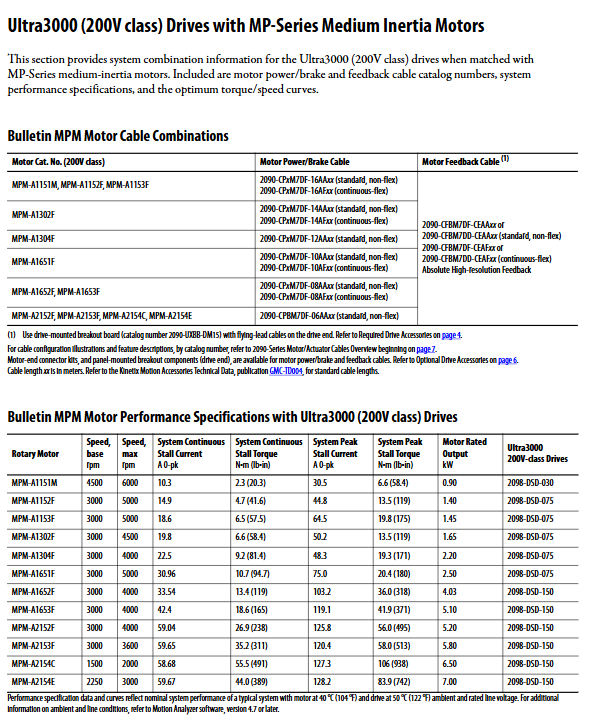

Verify the torque/speed curve using Motion Analyzer.

Check attachment compatibility

Driver terminal board: 2090-UBB-DM15 (feedback), 2090-U3CBB-DM44 (I/O)

If using fly wire cables, ensure that the terminal board is installed.

If an external braking resistor (such as 2090-SRxxx-xx) is used, confirm that the resistance values match.

Physical installation

Cut off all power and wait for the driver bus to discharge.

Dismantle the old motor and cables, and mark the line sequence.

Install a new motor (pay attention to coupling alignment and bolt torque).

Connect new cables: power lines (U, V, W, PE), brake lines (if necessary), feedback cables (pay attention to shielding layer grounding).

Connect the driver side terminal board and tighten the screws (torque 0.5... 0.6 N · m).

Power on test

First, turn on the control power (24V DC) and check the status LED of the driver.

Turn on the main power (200V or 400V AC) and perform motor parameter self-tuning (Autotune).

Run at low speed Jog and observe stability and encoder feedback.

Gradually accelerate to the rated speed and monitor whether the output current of the driver exceeds the specifications.

Run a complete work cycle and record peak current and temperature.

Document update

Update equipment drawings and spare parts list.

Save the new configuration in Motion Analyzer.

Common problems and precautions

Possible causes and solutions for the problem

The new motor cannot operate, the driver reports an overcurrent motor power line phase sequence error, and the feedback cable is disconnected. Check the U/V/W wiring; Check the encoder signal with an oscilloscope

The motor is not running smoothly, there is abnormal noise, the self-tuning parameters are not matched, and the load inertia ratio is too large. Re execute advanced self-tuning; Adjust the speed loop gain

Motor overheating, continuous current exceeding specifications, poor heat dissipation, reduced duty cycle or upgraded driver; Check for dirt on the surface of the motor

Driver reports E-07 (overvoltage) brake resistor not connected or too high resistance. Install a suitable external brake resistor (refer to 2090-SRxxx-xx)

Encoder feedback error: The cable shielding layer is not grounded and the connector is loose. Check if the shielding layer is grounded at a single point on the driver end; Re plug and unplug the connector

After replacement, the maximum torque is significantly reduced. If the driver power is insufficient or the motor peak current is limited, check the performance table and upgrade to a higher power driver if necessary
