Baum ü llerb b maXX 5000 Safety Configuration and Troubleshooting Guide

4.3 Fault phenomenon: SLS triggers too frequently, affecting normal production

Reason: The speed threshold is set too close to the working speed, or the monitoring window time is too short, resulting in normal speed fluctuations being misjudged as overspeed.

Solution strategy:

Measure the actual speed ripple of the motor through the FFT analysis function of ProDrive. For example, at a rated speed of 1000rpm, if the fluctuation is ± 30rpm, the SLS threshold should be set to at least 1100rpm (including a 10% margin).

Increase the monitoring delay (P-0-4111) to 100-200ms to avoid triggering transient spikes.

Check if the motor encoder cable is well shielded. The Hiperface DSL single cable solution is sensitive to EMI, and it is recommended to use original cables and ensure that the grounding resistance is less than 1 Ω.

4.4 Fault phenomenon: SBC brake control output abnormality, motor shaft still slides down after STO

Diagnosis:

Confirm that the SBC output of the safety module is transistor type (maximum 0.5A), which cannot directly drive the high-power brake coil. An intermediate relay must be added externally.

Measure the resistance of the brake coil. If it is lower than 20 Ω (for 24V brake), it may have short circuited, causing SBC output overcurrent protection.

Check the timing of the brake in the parameters: P-2-2070=brake opening delay (recommended 50ms), P-2-2071=brake closing delay (recommended 100ms).

Fix:

Replace the appropriate relay with a coil power not exceeding the SBC output capacity.

For high torque vertical shafts, it is recommended to add external safety brake contactors, with SBC controlling their coils before driving the motor brake.

4.5 Fault phenomenon: After replacing the SAF module, all safety functions fail

Reason: The new module did not load security parameters, or the parameter CRC is inconsistent.

Standardized operating procedures:

Connect to ProMaster and enter ProSafePara.

Click on 'Restore safety parameters from project' - write the safety parameters backed up from the original project into the new module.

Perform a 'forced CRC check' and the module will automatically restart.

Perform a complete security function test again and save the test report. According to IEC 62061, any replacement of safety modules must be revalidated.

Old Drive Replacement and Upgrade Guide: From b maXX 4000/3000 to 5000 Series

Many factories are still using the b maXX 4000 or b maXX 3300 series, which are still technically excellent, but upgrading to b maXX 5000 is a reasonable modernization path with safety standard upgrades and new feature requirements (such as SLP, FSoE). This section provides systematic methods for replacing and upgrading to minimize downtime.

5.1 Compatibility Assessment

Before replacement, the following elements must be confirmed:

Motor and Encoder: The b maXX 5000 supports Resolvers, EnDAT 2.1/2.2, Hiperface DSL, SSI, SinCos, and incremental encoders, and is fully compatible with the old series. Especially the DSD series servo motors can be used directly.

DC link voltage: The rated DC link voltage of the b maXX 5000 axis unit is 540V (provided by the power supply unit), and the b maXX 4000 also uses 540V, so there is no need to replace the power supply cable.

Fieldbus: The b maXX 5000 comes standard with EtherCAT (as a slave), and can choose EtherNet/IP, Modbus/TCP, PROFIBUS, etc. If the original system uses CANopen or Sercos, it is necessary to add a gateway or replace the main station module.

5.2 Physical replacement steps

Record the original drive parameters: Use ProDrive to export the complete parameter file (. bpx) of b maXX 4000/3300. Special attention: motor parameters (electronic nameplate data), positioning configuration files, digital I/O logic.

Remove old drive: Cut off the main power supply and 24V control power, mark all wiring: power supply L1/L2/L3, motor U/V/W, braking resistor, encoder I/O。

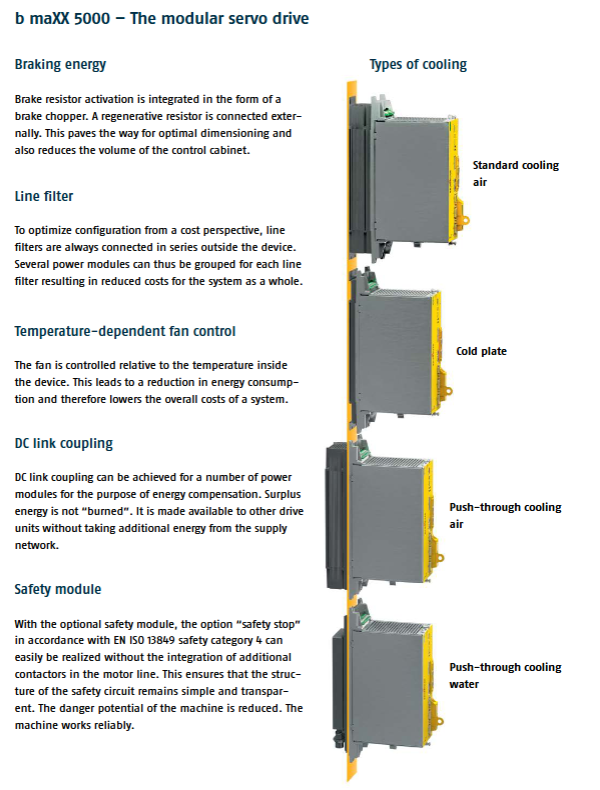

Installation of b maXX 5000: Pay attention to the frame size - the depth of b maXX 5000 is slightly larger (210mm for cold plate version, 280mm for air-cooled version), and the depth of the control cabinet needs to be confirmed. Use the original installation holes, but it may be necessary to replace the power supply of the cooling fan (some models have 230V AC fans).

Reconnect:

The main power supply corresponds directly to the motor wires.

Encoder: If originally designed as a Hiperface DSL single cable solution, it can be directly connected to the X5 interface of the b maXX 5000. If it is a Parser, it needs to be connected to X6.

Safety circuit: Connect the output of the original external emergency stop contactor to the STO input (X5/1, X5/2) of the SAF module.

Parameter migration and tuning:

Open the old parameter file in ProDrive and execute 'Convert to b maXX 5000 format'. The software will automatically map most of the parameters.

Manually check the mapping results: Pay special attention to the current loop gain (P-2-1004) and speed loop ratio (P-2-1007), which may need to be readjusted because the sampling time of the 5000 series is shorter (up to 62.5 μ s current loop).

Re execute the auto tuning function: Use ProDrive's "Auto Tuning" wizard to have the drive measure motor inertia and friction compensation.
