EATON XV200 Micro Panel Comprehensive Guide

Eaton XV200 Micro Panel Comprehensive Guide

In modern industrial automation, the human-machine interface (HMI) serves as a bridge between operators and machines, and its reliability, functional integration, and environmental adaptability directly affect production efficiency and system safety. Eaton's XV200 MICRO PANEL (MK2 series) is a compact industrial touch panel that can be used as a pure HMI device or integrated with PLC functions. It is widely used in fields such as mechanical manufacturing, process control, and building automation. This article provides a comprehensive analysis of the technical characteristics, installation requirements, interface configuration, safety specifications, and maintenance methods of the XV200 series based on the official operating manual, providing professional technical references for electrical engineers and system integrators.

Product Overview and Technical Specifications

1.1 Equipment name and functional positioning

The XV200 series and MK2 series are two names for the same product, both referring to Eaton's 5.7-inch industrial touch panel. This device supports the Windows CE operating system and can run visualization and PLC applications, suitable for the operation, monitoring, and control of machines and equipment.

1.2 Equipment Model and Version

XV200 MICRO PANEL offers the following versions (depending on interface and display type):

XV200 model MK2 model display type interface

XV-232-57BAS MK2-232-57BAS monochrome RS232 (non isolated)

XV-230-57MPN MK2-230-57MPN monochrome Profibus (non isolated)

XV-230-57CNN MK2-230-57CNN monochrome CAN (non isolated)

XV-252-57MPN MK2-252-57MPN color RS232+Profibus (non isolated)

XV-252-57CNN MK2-252-57CNN color RS232+CAN (non isolated)

All models are equipped with a resistive touch screen, CF card slot, Ethernet interface, USB device interface, and power interface.

1.3 Technical Highlights

Multi functional integration: supports the integration of HMI and PLC, reducing system costs and space occupation.

Rich communication interfaces: RS232, CAN, Profibus, Ethernet USB， Adapt to various industrial networks.

High protection level: IP65 front panel, suitable for harsh industrial environments.

Wide temperature operation: 0 ° C to 50 ° C, storage temperature -20 ° C to 60 ° C.

ATEX certification: Can be used in Zone 22 potentially explosive environments (dusty environments).

Safety regulations and compliant use

2.1 General Safety Requirements

Although the XV200 series equipment adopts advanced technology, there may still be residual risks. All operators must read and understand the safety sections in the operating manual, especially those related to installation, operation, and maintenance.

2.2 Symbol Explanation

Different symbols are used in the document to indicate the level of danger:

Danger (DANGER): Refers to an imminent danger that, if not avoided, will result in death or serious injury.

Warning: Indicates potential danger, which may result in death or serious injury if not avoided.

CAUTION: Indicates potential danger, which may result in minor or moderate injury if not avoided.

Caution: Important information is prompted and not related to personal injury.

2.3 Personnel Qualification Requirements

Only personnel with the corresponding qualifications can carry out installation, operation, maintenance, and service work. These personnel must undergo sufficient training to understand all risks related to the equipment.

2.4 Prohibited use

It is strictly prohibited to use XV200 for safety related functions such as personnel protection and mechanical safety interlocking. This type of function must be implemented through external safety relays or safety PLCs.

2.5 Equipment related hazards

Explosion hazard (ATEX): In potentially explosive environments, the plug must be unplugged and plugged after power failure, and the equipment must not be subjected to hazardous impacts.

Electric shock hazard: The equipment must not be opened as there are live parts inside.

Equipotential current: High equipotential current may cause signal interference or fire, and equipotential bonding conductors should be laid if necessary.

Electrostatic discharge: Before coming into contact with components that are susceptible to static electricity (such as connector pins), one should first touch a grounded metal object to release static electricity.

UV irradiation: Avoid direct sunlight to prevent the plastic shell from becoming brittle.

Cleaning: Do not use sharp objects, abrasives, or solvents to clean, and avoid liquids entering the equipment.

Installation Guide

3.1 Requirements for installation site

Environmental conditions: Meet the temperature, humidity, vibration, and other requirements specified in the technical data.

Installation position: It can be installed horizontally or vertically, but it is necessary to avoid direct sunlight, ensure good ventilation (with a minimum heat dissipation gap of 3 cm), and stay away from heat sources.

UL 60950 compliance: The equipment must be installed in the final product, the environment must meet the pollution level 2, the power supply must be SELV circuit, and the Ethernet must be isolated from the Internet through the firewall.

3.2 Installation steps

Check for transportation damage: Ensure that the equipment is in good condition.

Preparation for installation opening: dimensions 198 mm × 142 mm (tolerance ± 1 mm), material thickness 2-5 mm, flatness ≤ 0.5 mm, surface roughness Rz ≤ 120.

Install sealing strip: Insert the attached sealing strip into the groove on the back of the front panel to ensure a tight joint.

Pre installed threaded pin: Install the threaded pin into the wider end of the fixed clamp.

Insert the device into the opening from the front.

Install fixing clips: Select 4 or 8 fixing clips according to IP protection requirements, tighten the threaded pin until the front panel is flush with the cabinet surface.

Standard installation: 2 upper and 2 lower fixing clips (not meeting IP65).

IP65 or explosion-proof installation: 3 on top and bottom, 1 on left and right center, a total of 8 fixing clips.

3.3 Interface and Wiring

The interface of XV200 is located at the rear of the device, and the specific configuration varies depending on the model. All interface wiring must comply with EMC requirements, use shielded cables, and ensure that the shielding layer is connected to the connector housing with a large area of low impedance.

3.3.1 Power interface (24 VDC)

Use Phoenix Contact MSTB 2.5/3-ST-5.08 plug (included).

Wiring:+24 VDC, 0 VDC, functional grounding (Φ).

Power requirements: SELV 24 VDC, allowable voltage 19.2-30.0 VDC, maximum power consumption 8 W.

Internally equipped with polarity reversal protection and self recovering fuses.

3.3.2 RS232 interface (system port)

9-pin D-Sub male head, non isolated.

The maximum baud rate is related to the line length: 115200 bit/s within 2.5 meters and 9600 bit/s at 30 meters.

Shielded cables must be used, with the shielding layer connected to the connector housing.

3.3.3 Ethernet interface

RJ45 socket with ACT (yellow) and LINK (green) indicator lights.

Use shielded twisted pair (STP) cables, cross wires for direct connections between devices, and straight wires for connecting switches, with a maximum length of 100 meters.

Attention: Avoid mechanical stress on the interface caused by vibration and prevent the plug from being subjected to force.

3.3.4 USB Device Interface

USB 1.1, Type B socket.

Use shielded USB standard cable with a maximum length of 5 meters.

3.3.5 CAN interface (specific models only)

9-pin D-Sub male head, compliant with CiA standards.

Pin allocation: 2 (CAN-L), 3 (CAN-GND), 6 (GND), 7 (CAN-H).

Shielded twisted pair cables must be used, with a characteristic impedance of 120 Ω and wire diameter dependent on length.

Both ends of the bus need to be connected with 120 Ω terminal resistors, with a maximum of 32 nodes.

The maximum baud rate is related to the line length: 1000 kbit/s within 25 meters and 125 kbit/s at 500 meters.

3.3.6 Profibus interface (specific models only)

9-pin D-Sub female head, non isolated.

Pin allocation: 3 (B line), 5 (GND), 6 (5V output), 8 (A line), etc.

Profibus standard type A cable with a characteristic impedance of 150 Ω must be used.

The maximum baud rate is related to the line length: 1500 kbit/s within 200 m, ≤ 93.75 kbit/s at 1200 m.

Terminal resistors need to be connected at both ends of the bus, and dedicated bus connectors or internal jumpers can be used (as shown in Figure 16).

Operating instructions

4.1 Starting the device

Insert the CF card (including operating system) into CF slot 0 and lock the mechanism.

Connect the power and the device will automatically start (without a power switch).

After the first startup, it is necessary to perform system settings (such as time and network) and install applications. Please refer to the "MN05010007Z-EN Windows CE System Description" for details.

4.2 Shut down the device

Frequent switching can reduce the lifespan of backlight tubes (CCFLs), and it is recommended to extend their lifespan by reducing brightness. Simply disconnect the power to turn off the device.

4.3 Touch operation

The device adopts a resistive touch screen, which can be operated with fingers or a stylus. If the touch response is inaccurate, it needs to be recalibrated (using the operating system calibration tool).

Maintenance and troubleshooting

5.1 Daily Maintenance

Cleaning: Use a clean, soft, and damp cloth to wipe the touch screen. For stubborn stains, spray a small amount of cleaning agent on the cloth. Prevent liquids from entering the equipment.

Touch calibration: When the touch is not accurate, it is calibrated through the operating system.

Battery: The internal CR2032 lithium battery is used for real-time clock and is soldered onto the circuit board. It is non replaceable and has a lifespan of approximately 10 years.

5.2 Fault Handling

Common faults and countermeasures are shown in the table below (excerpted from document table 16):

Possible causes of malfunction and corrective measures

The device cannot start and the power is not connected. Check the power cord

Display 'No OS' at startup, CF card with no operating system inserted, CF card with system included

Touch unresponsive Touch not calibrated or disabled Calibration or enabled Touch

Tight fixation leads to abnormal display. The threaded pin is tightened too tightly and loosened (pay attention to torque)

The taskbar displays the "1" icon, and there is a foreign object on the touch screen. Remove the foreign object

Equipment obvious malfunction, hardware damage, sent for repair

5.3 Maintenance

The equipment must be opened by the manufacturer or authorized repair center. Contact local suppliers or Eaton technical support for repair services, and use the original packaging during transportation.

Storage, transportation, and disposal

6.1 Storage and Transportation

Environmental conditions: temperature -20 ° C~60 ° C, relative humidity 10~95%, no condensation.

Prevent mechanical damage and use appropriate packaging.

6.2 Disposal

Abandoned equipment must be disposed of in accordance with national regulations for environmental protection, or returned to the manufacturer. The equipment materials include: ABS-PC shell, glass touch panel, mercury containing backlight tube (<5 mg), lithium battery, etc. The packaging materials are cardboard and PE plastic.

Technical data summary

Parameter specifications

Display 5.7 inches, monochrome or color

Touch screen resistive, analog

32-bit RISC processor, 200 MHz

32 MB DRAM memory, 1.5 MB Flash available

External storage CF card slot (Type I)

Real time clock CR2032 lithium battery, with a lifespan of approximately 10 years

Power supply 24 VDC SELV, maximum 8 W

Protection level: front panel IP65, rear panel IP20

Operating at an ambient temperature of 0-50 ° C and storing at -20 ° C to 60 ° C

Anti vibration 5-9 Hz: 3.5 mm; 9～60 Hz：0.15 mm； 60～150 Hz：2 g

Anti impact 15 g/11 ms

Certified CE, UL 60950, ATEX Zone 22 (II 3D Ex tc IIIC T70 ° C IP6x)

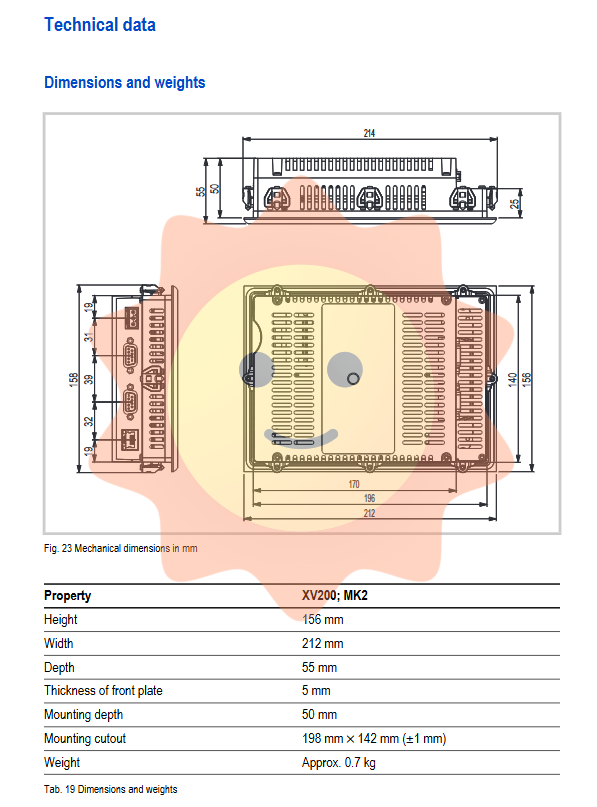

Dimensions: 212 × 156 × 55 mm (width × height × depth)

Installation opening 198 × 142 mm (+/-1 mm)

Weight approximately 0.7 kg
