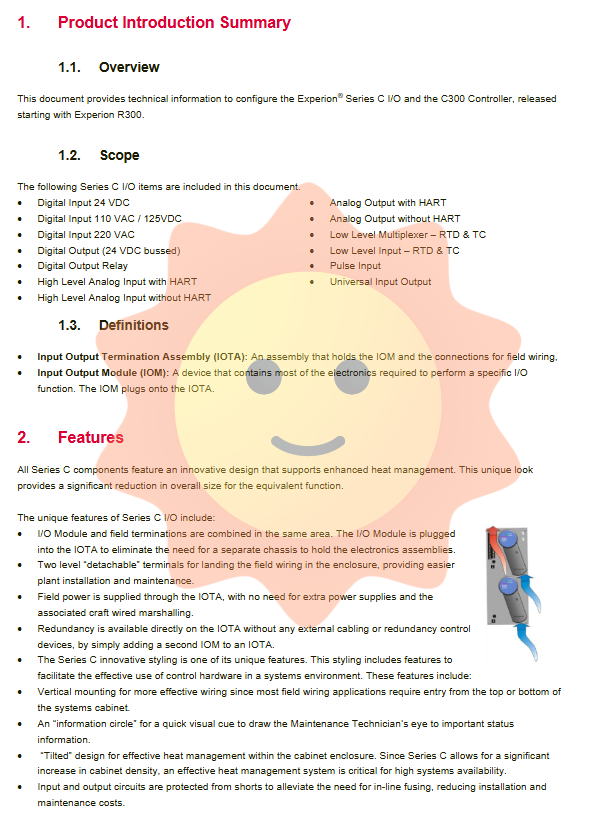

HONEYWELL Expert Series-C I/O Module

2.2 CC-PAIL51-16 channel low-level analog input

Parameter specifications

Number of channels 16

Input type thermocouple or RTD (configurable per channel)

Scan rate 1 second

Complete isolation of channels (between channels, between channels and the power system)

Common mode voltage ± 250 VDC or VAC RMS

Cold end compensation range -20 to+60 ° C (± 0.5 ° C typical)

IOTA model CC-TAIL51 (9 ″)

3. Analog output module

3.1 CC-PAOH01/51- Analog Output with HART

Parameter specifications

Number of channels 16

Output type 4-20 mA

Resolution 0.05% full scale

Accuracy ± 0.35% (25 ° C)

Maximum load of 800 Ω (when powered by 24V)

Stable to 1% within 80 ms response time

FAILOPT support is (each channel can be configured to maintain the last value or switch to a safe value)

Open circuit detection is

IOTA model non redundant: CC-TAOX01 (6 ")/CC-TAOX51 (6"); Redundancy: CC-TAOX11 (12 ")/CC-TAOX61 (12")

3.2 CC-PAOX01/51- Analog output without HART

The specifications are similar to CC-PAOH01, but without HART communication function. Suitable for standard 4-20mA actuator control applications.

4. Digital input module

4.1 CC-PDIL01/51-24VDC digital input

Parameter CC-PDIL01 CC-PDIL51

Number of channels 32 32

Input voltage range 18-30 VDC 18-30 VDC

ON threshold ≥ 13 VDC or ≥ 3 mA ≥ 13 VDC or ≥ 3 mA

OFF threshold ≤ 5 VDC or ≤ 1.2 mA ≤ 5 VDC or ≤ 1.2 mA

Input impedance 4.2 k Ω 4.2 k Ω

Response delay 5 ms ± 20% 5 ms ± 20%

Isolation 1500 VAC RMS 1000 VAC RMS

Is there an open circuit detection

IOTA model non redundant: CC-TDIL01 (9 "); Redundancy: CC-TDIL11 (12 ") Non redundancy: CC-TDIL51 (9"); Redundancy: CC-TDIL61 (12 ")

4.2 CC-PBIS01- Sequence of Events (SOE) Digital Input

Parameter specifications

32 channels

Normal mode (20ms PV scan), SOE mode (1ms resolution), low latency mode (5ms PV scan)

Timestamp resolution 1 ms

Input characteristics are the same as CC-PDIL01

Open circuit detection support (normal mode only)

IOTA model non redundant: CC-TDIL01 (9 "); Redundancy: CC-TDIL11 (12 ")

4.3 CC-PDIH01- High Voltage Digital Input

Parameter 120V IOTA 240V IOTA

Nominal voltage 120 VAC/125 VDC 240 VAC

Voltage range 90-132 VAC/100-138 VDC 180-264 VAC

Pull in voltage ≥ 90 VAC/≥ 100 VDC ≥ 180 VAC

Release voltage ≤ 20 VAC/≤ 25 VDC ≤ 50 VAC

Response delay 25 ms (AC)/10 ms (DC) 25 ms

IOTA model non redundant: CC-TDI110 (9 "); Redundancy: CC-TDI120 (12 ") Non redundancy: CC-TDI220 (9"); Redundancy: CC-TDI230 (12 ")

5. Digital output module

5.1 CC-PDOB01- Bus based 24VDC digital output (source type)

Parameter specifications

32 channels

Output type: Source

Load current per channel 0.5 A maximum

When there is no short circuit, the load current of each 8-channel group is 4A; when there is a single short circuit, it is 3A; when there is a double short circuit, it is 1.5A

The total load current of the module is 6A

Short circuit protection electronic, no fuse required

FAILOPT is configurable for each channel

IOTA model non redundant: CC-TDOB01 (9 "); Redundancy: CC-TDOB11 (12 ")

5.2 CC-PDOB01+Relay IOTA - Relay Output

Parameter specifications

32 channels

Contact type Form A (SPST/NO) or Form B (SPST/NC), jumper optional

Maximum load voltage 250 VAC/125 VDC

Maximum load current 3A @ 30 VDC/250 VAC (resistive)

Minimum load of 12 VDC/100 mA

Surge current 10A for 4 seconds (10% duty cycle)

Contact material AgSnO ₂

IOTA model non redundant: CC-TDOR01 (6 "); Redundancy: CC-TDOR11 (12 ″); Expansion board: CC-SDOR01 (12 ")

5.3 CC-POD51-24VDC digital output (leakage type)

Parameter specifications

32 channels

Output type: Sink (open leak)

Load current per channel 0.1 A maximum

Isolate 1000 VAC RMS (system and site)

IOTA model non redundant: CC-TDOD51 (9 "); Redundancy: CC-TDOD61 (12 ")

6. Pulse input module

CC-PPIX01- Pulse Input Module

Parameter specifications

Number of channels: 8 (single channel) or 4 (dual channel)

Frequency range 0-100 kHz (single channel)/0-10 kHz (dual channel)

Frequency accuracy ± 0.001% reading

Input voltage range 0-35 VDC

Input threshold high: 8.4V (low → high)/7.7V (high → low); Low: 2.8V (low → high)/2.0V (high → low)

Minimum pulse width 3 μ s (pulse suppression off)/20 μ s (pulse suppression on)

Quickly cut off output channels 7 and 8 to provide optically isolated solid-state relays (2.5A)

Fast cut-off delay ≤ 1 ms

IOTA model CC-TPIX11 (12 ")

Special feature: Supports ISO 6551/API 5.5 dual pulse input (A-level fidelity), suitable for metrology and trade handover applications; Support the pulse output function of the verifier.

7. Universal Input/Output Module

7.1 CC-PUIO01-32 channel universal I/O

Parameter specifications

32 channels

Configurable functions include analog input (4-20mA), analog output (4-20mA), digital input, digital output, and pulse input (channels 15-18)

AI accuracy 0.1% (23.5 ± 2 ° C)/0.17% (-40-70 ° C)

AO accuracy<0.5% full scale

AO maximum load 700 Ω

DO load current 0.5A/channel, 9A/module

HART support is (analog I/O)

IOTA model non redundant: CC-TUIO01 (12 ″); Redundancy: CC-TUIO11 (18 ")

7.2 CC-PUIO31-32 Channel Universal I/O (Enhanced Edition)

Parameter specifications

32 channels

Configurable functions AI (4-20mA), AO (4-20mA), DI (including SOE), DO, pulse input (any 4-channel)
