NEC NL8060BC26-17 Industrial LCD Module On site Maintenance and Replacement Guide

In the fields of industrial automation, process control, and medical equipment, NEC's NL8060BC26-17 is a classic 10.4-inch TFT LCD display module. With its 800 × 600 pixel resolution, 262144 colors, high brightness (280 cd/m ²), and wide viewing angle characteristics, it has long been used in key equipment such as human-machine interfaces and monitoring terminals. As equipment ages, on-site engineers often face challenges such as backlight failure, signal interface failure, or complete machine replacement. This article is based on the official data manual and systematically analyzes the electrical and mechanical characteristics, interface timing requirements, backlight inverter matching, reversible scanning direction setting, and common fault diagnosis methods of the module. It also provides complete replacement steps and maintenance recommendations to help engineers quickly restore the display system.

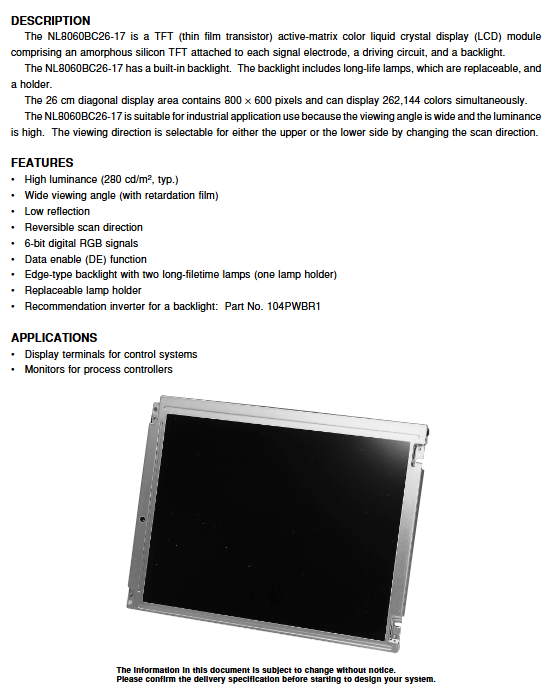

Module Overview and Core Features

NL8060BC26-17 is an amorphous silicon TFT active matrix LCD module, which adopts an RGB vertical stripe pixel arrangement with a pixel spacing of 0.264 × 0.264 mm and an effective display area of 211.2 × 158.4 mm (10.4 inches diagonal). Its prominent features include:

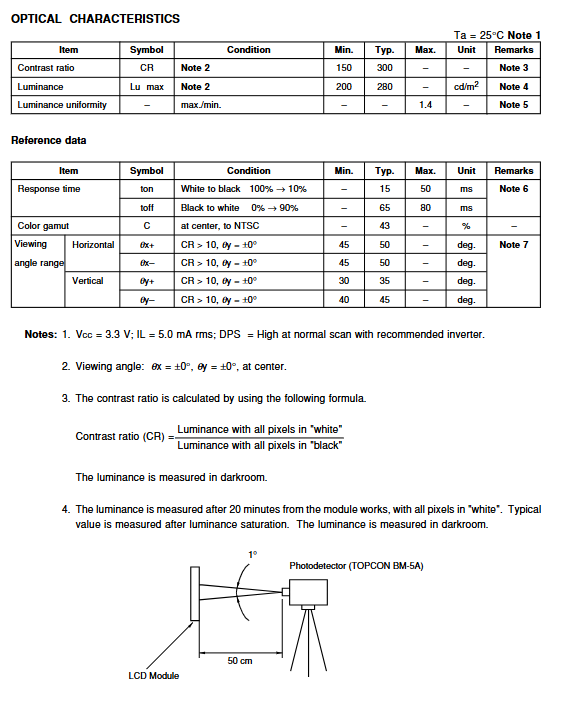

High brightness: typical value of 280 cd/m ², clear and readable in industrial environments.

Wide viewing angle: horizontal ± 50 °, vertical upper 35 °, lower 45 ° (contrast>10:1); Through the reversible scanning function, the up and down viewing angles can be exchanged to adapt to different installation directions.

Low reflection: Using retardation film to reduce surface reflection.

Reversible scanning direction: Controlled by the DPS pin, the image is displayed from top to bottom during normal scanning (DPS=VCC); Display from bottom to top during reverse scanning (DPS=GND or open circuit) to optimize the optimal viewing angle in the installation direction.

DE data enable mode: supports standard DE synchronization mode, or can choose fixed mode (MODE pin control).

Backlight replaceable: Adopting edge type backlight, two cold cathode fluorescent lamps (CCFL) are installed on one lamp holder, and the lamp holder can be replaced separately (spare part number 104LHS31), extending the overall life of the module.

Recommended inverter: NEC 104PWBR1 (to be purchased separately), providing lamp driver and brightness control functions.

Detailed explanation and connection points of interface signals

2.1 Main connector CN1 (41 pin)

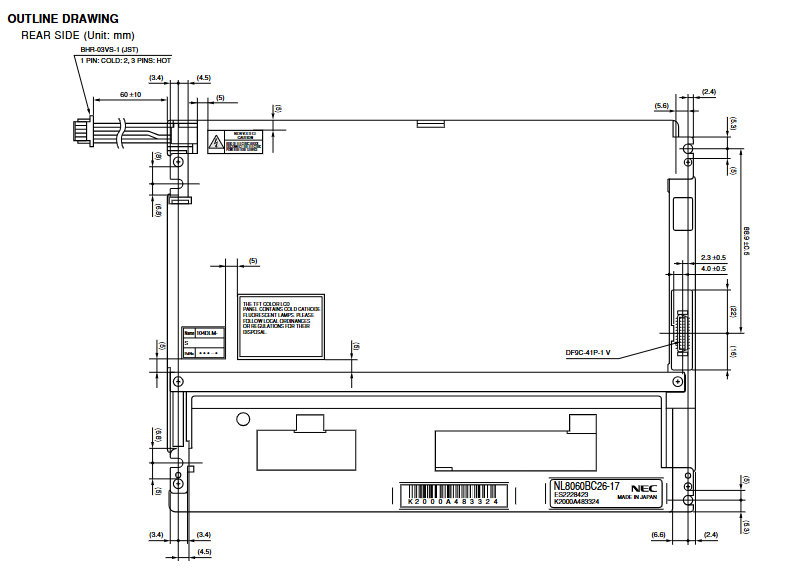

The module side connector is Hirose DF9-41P-1V (DF9 series), and the matching socket DF9-41S-1V must be used. Pin allocation can be found on page 6 of the data manual.

Important signals:

CLK (dot clock): Typical frequency 38.36 MHz, period 26.067 ns. Duty cycle 0.4~0.6, rise/fall time ≤ 10 ns.

Hsync (line synchronization): The typical cycle value is 26.693 μ s (approximately 37.468 kHz), with a display period of 800 CLK. There are two requirements for the front and rear corridors and pulse width: fixed mode and DE mode (see timing table).

Vsync (frame synchronization): Typical cycle value of 16.683 ms (approximately 59.94 Hz), display period of 600 H.

DE (Data Enable): High level active. When the MODE pin is low or open, the module operates in DE mode, ignoring the width and position of Hsync/VSync, and relying only on the DE signal to define valid data.

R0~R5, G0~G5, B0~B5: 6-bit RGB data, with R5/G5/B5 being the most significant bit. 0 represents low level, 1 represents high level.

DPS (Scanning Direction Selection): Connect to VCC for normal scanning (the top left corner of the image is (0,0)), connect to GND or open circuit for reverse scanning (the top left corner of the image becomes the original bottom right corner).

MODE: High level is a fixed mode (which needs to accurately meet the front and rear corridor width of Hsync/VSync), low or open circuit is DE mode (recommended).

VCC: Logic/driver power supply, nominal 3.3 V (can also support 5.0 V, but attention should be paid to current differences). All VCC pins must be connected simultaneously.

GND: Multiple ground pins must all be grounded.

2.2 Backlight connector CN2 (3-pin)

The module backlight side uses JST BHR-03VS-1 socket, and the matching plug is SM02 (4.0) B-BHS-TB. Pin definition:

Pin 1: Vlow (low voltage terminal)

Pin 2, 3: Vhigh (high voltage terminal)

Danger warning: Vhigh and Vlow must not be reversed, otherwise it may cause electric shock or module damage.

2.3 Recommended inverter 104PWBR1 connection

The inverter provides three sets of connectors:

CN1 (power input, 5-pin): 12V power supply (pins 1 and 2), backlight ground (pin 4), brightness selection (pin 5, BRTHL). BRTHL high or open circuit=100% brightness, low=60% brightness.

CN3 (control signal, 3-pin): BRTC (backlight On/Off, high or open circuit=on, low=off), BRTH (analog brightness control input), BRTL (backup). Brightness control supports two methods:

External 10 k Ω variable resistor (BRTHL open circuit): resistor 0 Ω → minimum brightness 50%, 10 k Ω → maximum brightness 100%.

Voltage control (BRTL open circuit): BRTH input voltage ≤ 1.2 V corresponds to maximum brightness (100%), 2.5 V corresponds to minimum brightness (50%).

Power timing and signal integrity requirements

NL8060BC26-17 has strict requirements for the power on/off sequence, and violating the timing may result in module damage or permanent uneven display.

Correct timing sequence:

First, connect the VCC (3.3 V or 5.0 V) and wait for the power supply to stabilize before applying input signals (CLK, Hsync, Vsync, DE, RGB data).

Before VCC stabilizes, all signals must remain in a low or high impedance state.

When power is cut off, all signals should be removed first before turning off VCC.

The backlight should be turned on during normal operation of the LCD (i.e. both the VCC and signal have stabilized). If the backlight works before the LCD, or if the LCD is turned off before the backlight, the screen may instantly turn white.

Special note: If any of the CLK, Hsync, or Vsync signals are lost during operation, even if later restored, the LCD may not operate correctly, resulting in uneven or even permanent damage to the display. It is necessary to turn off VCC and then power on again according to the correct timing.

Fault diagnosis and troubleshooting

The common problems and countermeasures encountered by on-site engineers are as follows:

4.1 The screen does not light up at all

Check power supply: The measured VCC should be 3.3 V ± 0.3 V (or 5.0 V ± 0.25 V), and the current should be approximately 360 mA (at 3.3 V). If the current is 0, check if the main connector is securely plugged in and if there is a short circuit.

Check backlight: When the backlight is not on, measure the inverter input 12V and BRTC control signal. If the inverter is normal but the light tube does not light up, it may be due to the depletion of the light tube's lifespan or damage to the light bracket. Replace the lamp holder kit 104LHS31.

Check signal: Use an oscilloscope to confirm the presence and correct frequency of CLK, Hsync, and Vsync. The module will not display when there is no signal.

4.2 Display white screen or splash screen

Reason: DE or Hsync/VSync timing error, MODE pin status does not match signal format.

Solution: Confirm the status of the MODE pin. If DE mode is used, MODE should be low or open circuit, and ensure that the DE signal is high during the effective data period and low during the front and rear corridor periods. If using a fixed mode, it is necessary to strictly meet the front and rear corridors and pulse width of Hsync (see pages 11-12 of the timing table).

Check DPS pins: If DPS is suspended or grounded, the image will be scanned in reverse, but it will not cause screen distortion. If the screen is upside down but the content is normal, this is a characteristic and not a malfunction.

4.3 Image flicker or water ripples

Reason: There is a beat interference between the oscillation frequency (Ft) of the inverter and the horizontal synchronization frequency (Hsync). The typical Ft should be set to 1/(4 · Th) · (2n-1) of the Hsync frequency, where Th is the Hsync period.

Solution: Adjust the inverter frequency or use the recommended inverter 104PWBR1. Check if the brightness control introduces noise (some inverters may produce audible noise in brightness adjustment mode, which is a normal phenomenon).

4.4 Uneven brightness or dark spots

Reason: Aging of backlight tubes, blackening of tube ends, or compression of light guide plates.

Solution: Replace the light bracket. If the replacement is still uneven, it may be due to deformation of the internal light guide plate of the module, and the module needs to be replaced as a whole.

4.5 Image residual or burn-in

Reason: Long term display of static patterns (such as fixed menu bars).

Prevention: Avoid using fixed patterns during aging testing; Use screen saver or periodically change display content.

Module replacement steps

When the NL8060BC26-17 module fails and cannot be repaired, the following steps need to be followed for replacement:

5.1 Preparation work

Confirm that the model of the new module is completely consistent (NL8060BC26-17), and pay attention to whether there are any subsequent versions (such as NL8060BC26-17B, etc., which need to be checked for compatibility with the data manual).

Prepare the required inverter (104PWBR1) and lamp stand (104LHS31). If other inverters are used in the original system, confirm their electrical parameter matching (typical lamp current 5.0 mA rms, lamp starting voltage ≤ 1265 V rms at 0 ℃).

Prepare a 41 pin flat cable (matching DF9 series) and a backlight high-voltage cable (with insulation sheath).

Turn off the system power and unplug the power plug.

5.2 Physical disassembly

Remove the screws that fix the old module (note that the torque should not exceed 0.294 N · m, which is 3 kgf · cm).

Disconnect the main connector (carefully pull the connector body, do not pull the cable).

Disconnect the backlight high-voltage connector (CN2), be aware that residual high-voltage charges may still exist, please discharge first.

Remove the old module.

5.3 Installing New Modules

Place the new module in its original installation position, ensuring good grounding (the module is connected to the chassis ground through the installation hole).

Connect the main connector (CN1) and confirm that all pins are aligned and not bent.

Connect the backlight high-voltage line (CN2), paying attention to the correct polarity of Vhigh and Vlow (usually the red line is high voltage, white or black is low voltage, refer to the original inverter label).

If using a 104PWBR1 inverter, connect the 12V power supply and brightness control line according to the previous section.

Secure the module with screws, torque 0.294 N · m (maximum), do not tighten too tightly to avoid crushing the glass substrate.

5.4 Power on Test

Do not connect the backlight high voltage first, only provide the logic VCC and signal, and observe whether there is a weak image on the screen (normally there should be no light, but traces of LCD flipping can be seen).

If the logic is normal, turn on the backlight again (BRTC set high).

Check if the image position, color, and brightness are normal. If there is an up and down reversal, adjust the DPS pin level (connect it to VCC or GND).

Run a color test pattern to verify if the 262144 color display is intact.

Check for flickering or noise, and adjust the inverter brightness setting if necessary.

Common Problems and Maintenance Suggestions

Possible causes and solutions for the phenomenon

The backlight is not on, the inverter has no output, the lamp is damaged, and the BRTC is a low measurement inverter with 12V input; Check if BRTC is high or open circuit; Try replacing the light bracket

Adjust the brightness control resistor or voltage due to aging of the screen dim light tube and high brightness control voltage (BRTH); Replace the lamp holder

Display incompleteness (missing left, right, up, and down) signal timing, incorrect setting of effective display area, checking DE or Hsync/VSync front and rear corridors; Confirm that the display resolution is set to 800 × 600

Abnormal color (color cast, missing color), broken or poor contact of RGB data line, fixed data at 0/1, use oscilloscope to check R0~R5 and other signals; Check if the connector is properly inserted

Vertical stripes on the screen are normal (depending on the display pattern) and should be ignored unless there is a malfunction

Uneven module characteristics under high temperature (caused by phase difference film) ensure module ventilation and heat dissipation, with a working temperature of ≤ 50 ° C

Unable to display glass substrate or driver IC rupture after mechanical impact, replace module

Regular maintenance:

Check the backlight brightness every 6 months. If it drops below 50% of the initial value, consider replacing the lamp holder (typical lifespan: about 50000 hours, but affected by ambient temperature).

Clean the surface: Use a soft dry cloth (dipped in a small amount of anhydrous alcohol), and strictly prohibit the use of chemicals such as benzene and diluents.

Check if the connector is oxidized or loose, and if necessary, plug and unplug it again.
