YOKOGAWA built-in isolation barrier I/O module (FIO specific)

F: | Au:FAN | DA:2025-12-18 | 1087 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

Basic model: AST143 (16 channels, TC/mV input, built-in isolation barrier)

Suffix code: - S (standard type), 00 (fixed position)

Option codes:/T4S0 (single redundant pressure clamp terminal),/T4D0 (dual redundant pressure clamp terminal)

4. RTD/BOT input module (ASR133)

Basic model: ASR133 (8-channel, RTD/BOT input, built-in isolation barrier)

Suffix code: - S (standard type), 00 (fixed position)

Option codes:/SR3S0 (single redundant pressure clamp terminal),/SR3D0 (dual redundant pressure clamp terminal)

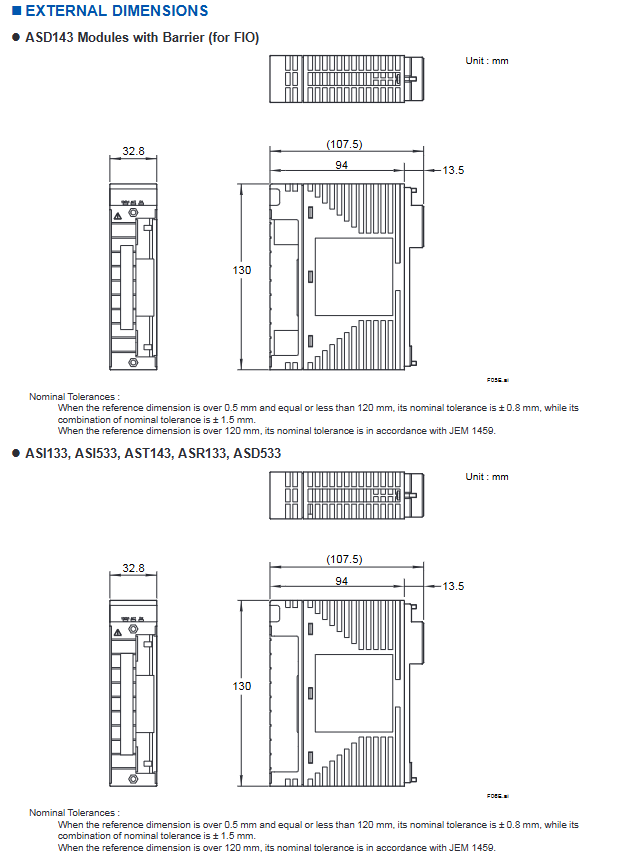

5. Digital Input Module (ASD143)

Basic model: ASD143 (16 channels, NAMUR compatible, built-in isolation barrier)

Suffix code: - P (standard type), 00 (fixed position)

Option codes:/SB4S0 (single redundant pressure clamp terminal),/SB4D0 (dual redundant pressure clamp terminal)

6. Digital output module (ASD533)

Basic model: ASD533 (8-channel, digital output, built-in isolation barrier)

Suffix code: - S (standard type), 00 (fixed position)

Option codes:/SD3S0 (single redundant pressure clamp terminal),/SDD30 (dual redundant pressure clamp terminal)
