The user manual for YASKAWA 120 series I/O modules (compatible with MEMOCON GL120, GL130 PLC) covers the specifications, installation wiring, I/O allocation, MEMOSOFT operation and maintenance of three types of modules: digital I/O, analog I/O, and register I/O. It specifies the voltage range of the module (such as digital input 100/200VAC, 12/24VDC, analog output ± 10V/4-20mA), point configuration (16/32/64 points, etc.), wiring specifications, I/O address allocation rules, and safety operation requirements (such as grounding resistance ≤ 100 Ω, hot plug support), and is responsible for module installation, debugging, and maintenance.

Module classification and core specifications

Module category subdivision type Key parameters Typical models

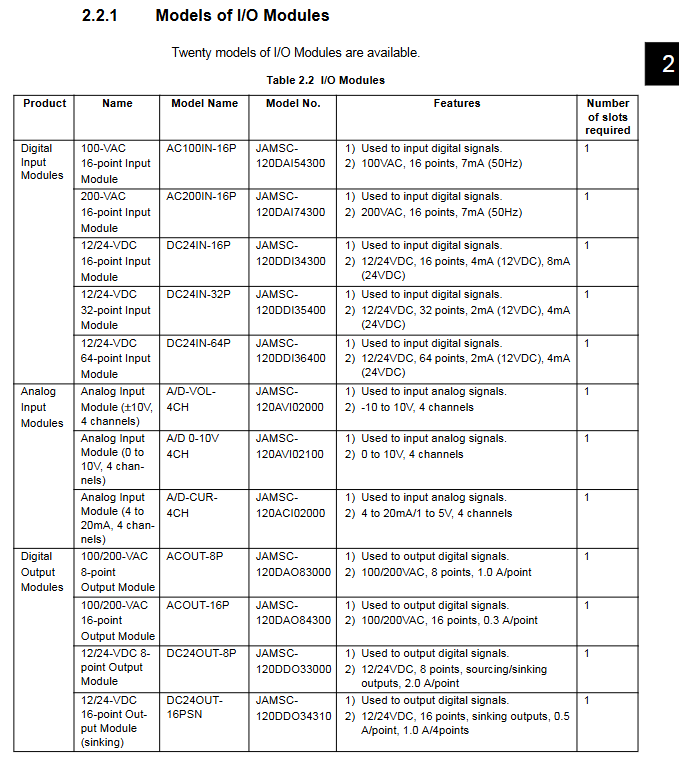

Digital input module 100VAC 16 point rated voltage 100VAC, input current 7mA, input delay ≤ 35ms JAMCS-120DAI54300

200VAC 16 point rated voltage 200VAC, input impedance 28.6k Ω (50Hz) JAMCS-120DAI74300

12/24VDC 64 point rated voltage 12/24VDC, input current 2/4mA, supports hot swappable JAMCS-120DDI36400

Digital output module 12/24VDC 32 point (current injection) load current 0.3A/point, total load 0.4A/4-point JAMCS-120DDO35410

Relay 16 points support AC200V/DC24V, contact life ≥ 100000 times JAMCS-120DRA84300

Analog input module 4-20mA 4-channel accuracy ± 0.5% F.S., input impedance 250 Ω JAMCS-120ACI02000

Analog output module ± 10V, 2-channel resolution of 12 bits, load resistance ≥ 2k Ω JAMSC-120AVO01000

Register input module 16 point data input supports 8/16 channels, data format BIN/BCD JAMCS-120RDI34410

Register output module 16 point data output load current 100mA/point, timeout output configurable JAMCS-120RDO34410

Installation and wiring specifications

Environmental Requirements

Working temperature: 0~60 ℃, storage temperature: -25~85 ℃

Humidity: 30%~95% (no condensation), no corrosive gases

Vibration: 10-57Hz (0.075mm half amplitude), 57-150Hz (9.8m/s ² acceleration)

Installation operation

Module fixation: M4 screws are tightened, and adjacent modules are reserved with heat dissipation spacing

Terminal block installation: AC module needs to be powered off to avoid electric shock

Hot swappable: Supports live plugging (AC modules require safety switches)

Wiring requirements

Cable selection: shielded twisted pair (signal), independent wiring (power)

Distance requirement: The distance between power lines and signal lines should be ≥ 200mm, and cables of different voltage levels should be slotted

Grounding specification: Single point grounding of shielding layer, grounding resistance ≤ 100 Ω

Surge protection: parallel surge absorbers (AC) or freewheeling diodes (DC) for inductive loads

I/O allocation rules

Digital I/O Address Allocation

Input relay: CPU 10/20/21 range 100001-101024, CPU 30/35 range 100001-104096

Output coil: CPU 10/20/21 range 00000 1-001024, CPU 30/35 range 00000 1-004096

Address step size: 16 point module step size of 16 (e.g. starting from 100001 for 16 point input, next 100017)

Simulate I/O address allocation

Input registers: 300001-300512 (5 registers per module)

Output registers: 400001-400512 (2 registers per module)

Register I/O address allocation

Input registers: 300001-300512 (1-16 registers optional)

Output registers: 400001-400512 (1-16 registers optional)

MEMOSOFT operation

Configuration requirements: Supports MEMOSOFT version ≥ 1.21 (DOS) for 64 point modules, corresponding CPU version (such as CPU 10 ≥ 00A01)

Core operations: Module type setting (input the last 11 digits of the model), I/O address starting value configuration, data format (BIN/BCD), bit sequence (MSB/LSB)

Special settings: Simulation module software filtering (no filtering/3-time average/5-time average), register module read/write cycle (8CH minimum 32ms)

Maintenance and troubleshooting

Maintenance points

Fuse replacement: Authorized personnel only, specifications match (such as DC8 point module 3.5A fuse)

Insulation testing: Regularly use a 500VDC megohmmeter to test, with insulation resistance ≥ 100M Ω

Battery maintenance: The lithium battery (3.6V) of the register module has a lifespan of about 10 years and needs to be replaced if the voltage is ≤ 2.8V

Common Faults

Over range: ERR indicator light is on, check the input/output signal range (such as analog input ± 10V exceeding ± 10.24V)

Power supply abnormality: The P.OK light is not on. Check the polarity and voltage range of the ± 12V/+5V power supply

Communication failure: The ACTION light is not on. Please verify that the I/O allocation matches the module model
