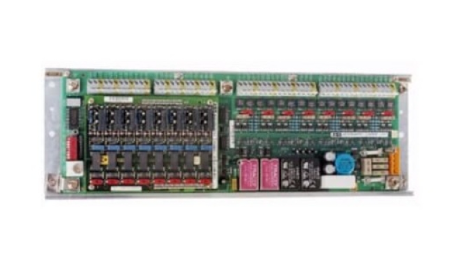

ABB AF C094 AE02 ARCnet Control Board

ABB AF C094 AE02 ARCnet Control Board

Product overview

AF C094 AE02 is an ARCnet control board launched by ABB, with product ID HIEE200130R0002, originating from Switzerland. As a new product, it is not a customized product and can be ordered in a conventional manner. It is mainly used in control scenarios based on ARCnet networks in the field of industrial automation, and can achieve control and coordination of related equipment and systems, providing stable hardware support for industrial control.

Working principle

ARCnet (Attached Resource Computer Network) is a local area network technology, and this control board operates based on this technology. It establishes connections with other devices in the network through the ARCnet network protocol for data transmission and exchange. Receive command signals from higher-level control systems or other devices, process them internally, and send control commands to the corresponding executing devices; At the same time, it can also collect operational status data of connected devices and provide feedback to relevant systems, thereby achieving closed-loop control of industrial processes.

Key advantages

Brand guarantee: Belonging to the ABB brand, relying on ABB's technical strength and good reputation in the industry, the product quality and reliability are strongly guaranteed.

Strong adaptability: Designed specifically for ARCnet networks, it can adapt well to industrial control environments based on this network, ensuring the stability of network communication and control.

Standardized design: Following relevant industry standards, it has standardization in installation, connection, and use, making it easy to integrate with other equipment that meets the standards.

Precautions

Installation environment: Although the document does not explicitly mention specific working environment parameters, as an industrial control equipment, it should be avoided to install in environments that are too humid, dusty, high-temperature, or have strong electromagnetic interference to avoid affecting its normal operation.

Connection specifications: When connecting with other devices, it is necessary to strictly follow the connection specifications of ARCnet network to ensure correct and secure wiring, and avoid communication failures caused by connection problems.

Ordering and Inventory: The inventory location of this product is in Baden, Switzerland. When ordering, please note that the minimum order quantity and order multiple are both 1, and it is not a customized product. The order quantity and time should be reasonably planned according to actual needs.

Basic information

Product ID: HIEE200130R0002

ABB model name: AF C094 AE02

Product Name: ARCnet Control Panel

Country of Origin: Switzerland (CH) (Switzerland)

Customs tariff number: 85371092

Specification parameters

Product net height: 8mm

Product net length: 285 mm

Net weight of product: 1.2 kg

Product net width: 21 mm
