EATON MTL4850 HART multiplexer complete guide

DD file: For example, when integrating the MTL4850 multiplexer in Emerson AMS software, the MTL4850 DD file needs to be applied.

FDT/DTM: For software that uses FDT technology (such as Endress+Hauser and Metso's Fieldcare), MTL provides MTL4850 Communication DTM (Device Type Manager), which enables the MTL4850 system to transfer HART data to any device management software that uses FDT/DTM concepts.

Both DD and DTM files can be downloaded for free from the MTL official website.

6.2 Alarm Event Log

The multiplexer maintains an alarm event log that can be read through device management software. Event types can be divided into:

General information: Internal parameters or values of the multiplexer.

Causing diagnostic errors in resetting.

Common log messages and their meanings (excerpt):

Meaning of log messages/required operations

Alarm generated by HART test command 242 MTL diagnostic test activation

Found a pre Rev 5 HART transmitter to check if there are any updates from the manufacturer

Other master detected on loop detected secondary master

Duplicate Transmitter Unique ID. Used on loop to check if the manufacturer has updated

!+12V Supply out of range check the power supply. If it continues to alarm, it needs to be repaired

An internal watchdog reset occurred. If the alarm persists, it needs to be repaired

Background RAM word test failed. If the alarm persists, it needs to be repaired

Single or occasional events may be caused by noise or power outages, but multiple or frequent events may indicate installation issues or module failures, requiring the module to be returned to MTL for investigation.

Typical compatible system

MTL offers a range of customized backplates for specific control or safety systems, used for installing MTL4500 series intrinsic safety isolators. These custom boards typically include flat cable connectors for connecting HMP-HM64. A typical system includes:

Emerson DeltaV and DeltaV SIS

HIMA HiMax

Honeywell Experion C300、Safety Manager、Process Manager I/O

Invensys Foxboro FBM、Triconex Tricon & Trident

Siemens ET200M

Yokogawa Centum R3、Prosafe RS

You can contact MTL for customization according to specific needs.

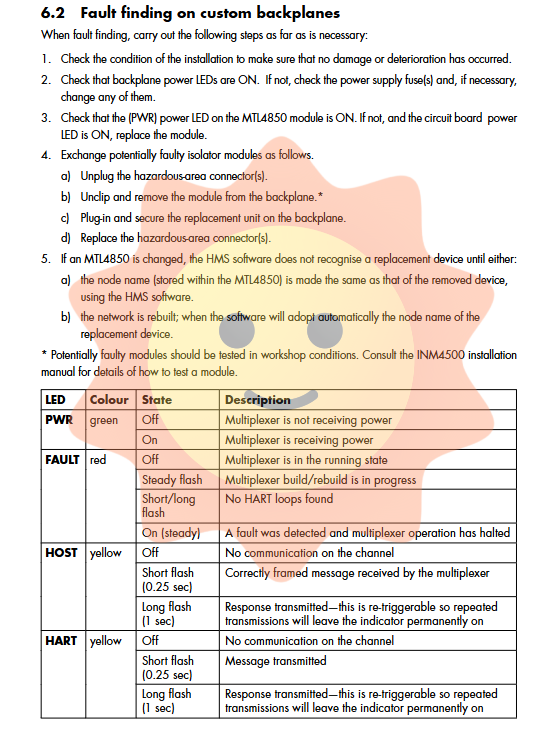

Troubleshooting

When a problem occurs, you can follow the following steps to troubleshoot:

Check installation condition: Confirm that there is no damage or aging.

Check the power LED on the backplane: If it doesn't light up, check the power fuse.

Check the PWR LED of MTL4850: If it is not lit but the backplane power LED is lit, replace the MTL4850 module.

Replace the suspicious isolator module:

Unplug the hazardous area connector.

Remove the module from the backplane.

Install and secure the new module.

Reinsert the hazardous area connector.

Software processing after MTL4850 replacement: After replacing MTL4850, the device management software needs to perform any of the following operations to recognize it:

Use software to change the node name (stored in MTL4850) to match the removed device.

Rebuilding the network, the software will automatically adopt the node names of the new modules.
