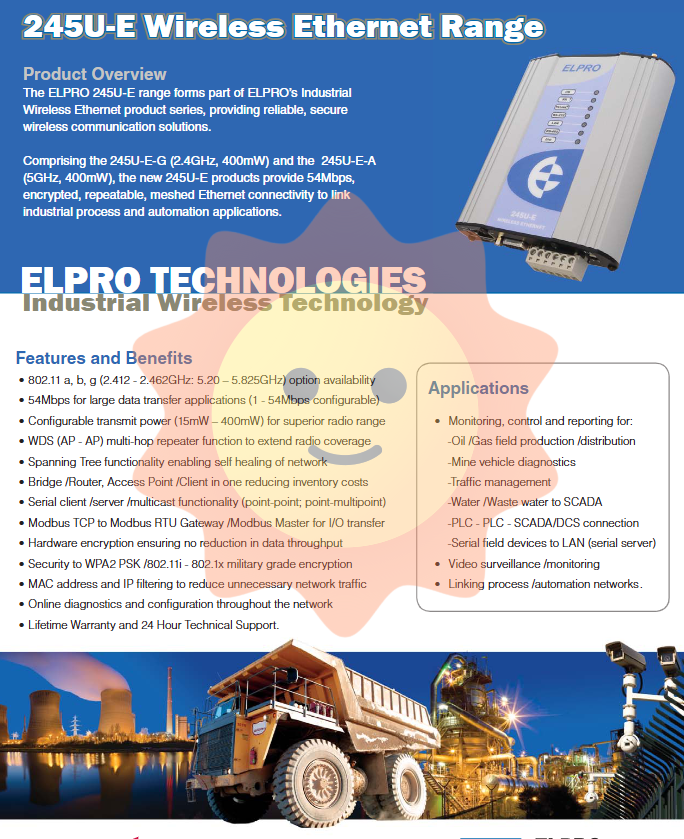

Product Overview

The ELPRO 245U-E series is a high-performance wireless Ethernet communication solution designed specifically for industrial environments. This series includes two models, 245U-E-G (2.4GHz, 400mW) and 245U-E-A (5GHz, 400mW), which support data transmission rates of up to 54Mbps and have advanced features such as encryption, relay, and mesh networks, suitable for industrial process control and automation applications.

The 245U-E series not only inherits ELPRO's profound technical accumulation in the field of industrial wireless communication, but also integrates the flexibility and security of modern network communication, becoming an ideal bridge connecting industrial field devices with upper level management systems.

Technical features and advantages

1. Multi band support and high-speed transmission

245U-E-G supports the 802.11b/g standard and operates in the frequency range of 2.412 to 2.462GHz; 245U-E-A supports the 802.11a standard and covers the frequency range of 5.20 to 5.825GHz. Both can automatically adjust the transmission rate (1 to 54Mbps) based on signal quality, ensuring stable communication in complex environments.

2. Adjustable transmission power and long-distance communication

The transmission power can be adjusted between 15mW and 400mW to meet the regulatory requirements of different regions. Under line of sight conditions, the transmission distance can reach 5 kilometers (3 miles) at a power of 400mW, making it suitable for wide area deployment scenarios such as oil fields, mines, and traffic monitoring.

3. Flexible networking methods

Support WDS (Wireless Distribution System) multi hop relay function, allowing APs to interconnect and expand coverage range. Combined with the Spanning Tree protocol, the system can achieve network self-healing, automatically switching paths when a node fails, ensuring communication continuity.

4. Integration of multiple working modes

The device integrates multiple modes such as access point (AP), client, bridge, router, etc., reducing inventory costs and improving deployment flexibility.

5. Serial communication and Modbus gateway function

Supports RS232/485 serial interface for client/server/multicast mode, enabling point-to-point and point-to-point serial data transmission. At the same time, the device has a built-in gateway function from Modbus TCP to Modbus RTU, which supports Modbus master polling of I/O devices, greatly simplifying the integration difficulty of industrial control systems.

6. Advanced security mechanisms

Supports military grade encryption standards such as WPA2, 802.11i, and 802.1x, and hardware encryption does not reduce data throughput. Simultaneously providing MAC address and IP filtering functions, effectively controlling network access and preventing illegal intrusion.

Application scenarios

The 245U-E series is widely used in the following industrial fields:

Oil and gas: used for wellhead data collection, pipeline monitoring, and remote control;

Mining: Implementing vehicle diagnostic data feedback and environmental monitoring;

Traffic management: used for signal light control and video surveillance feedback;

Water system: Connect to SCADA system to achieve remote monitoring of pump stations;

Industrial automation: wireless communication between PLC and DCS;

Video surveillance: Supports high bandwidth video streaming transmission.

System design advantages

The 245U-E series demonstrates strong flexibility and scalability in system integration:

DHCP automatic IP allocation: New devices can quickly access the network;

Online diagnosis and configuration: supports remote viewing of signal strength (RSSI), connection status, system logs, etc. through the network;

Serial server function: It can connect traditional serial devices to the local area network to achieve device networking;

Modbus master station function: It can complete I/O polling and data transmission without the need for an external controller.

The following figure shows a typical application scenario: LAN connects field devices in a serial manner through an AP, another AP acts as a Modbus master polling slave I/O, and newly added APs automatically connect through DHCP. The system design is efficient and convenient.

Detailed explanation of technical specifications

Wireless parameters

245U-E-G：2.412–2.462GHz， Receiver sensitivity: -97dBm @ 1Mbps, -74dBm @ 54Mbps;

245U-E-A：5.20–5.825GHz， Receiver sensitivity: -94dBm @ 6Mbps, -74dBm @ 54Mbps;

Transmission power: 125mW at 54Mbps, up to 400mW at low rates;

Channel spacing: 11 5MHz channels, with a center frequency of 2.412GHz for the first channel.

Interface and Communication

Ethernet: 10/100 BaseT, RJ45, compliant with IEEE 802.3;

RS232: DB9 female header, supports hardware flow control;

RS485: 2 bit terminal block, maximum transmission distance of 1.2km;

I/O interface: 1 digital input (dry contact), 1 digital output (FET, 30VDC/500mA), can be used for status transmission or fault alarm.

Power Characteristics

Input voltage: 9-30VDC, with overvoltage/undervoltage protection;

Power consumption: 12V/270mA, 24V/140mA when idle; When launched, 12V/470mA, 24V/250mA.
