Eaton MICRO PANEL XV-152 Industrial Tablet Operating Manual

F: | Au:FAN | DA:2026-03-17 | 463 Br: | 🔊 点击朗读正文 ❚❚ | Share:


Eaton MICRO PANEL XV-152 Industrial Tablet Operating Manual

Equipment Core Description

Product positioning and core functions

XV-152 is an industrial grade HMI/PLC integrated equipment, mainly used in the field of machine and system manufacturing. Its core functions include visual display of industrial equipment, manual operation control, data acquisition and communication. It supports independent use as HMI or integration of PLC functions, without built-in operating system description, and needs to be used in conjunction with Windows CE system and XSoft-CoDeSys-2 programming tool.


Core version and specifications

The device is divided into two versions, D and E, with screen sizes covering 5.7 "/8.4"/10.4 ". The core configuration is as follows:

Version core differences support interface adaptation to screen size

D-version basic communication versions RS232, RS485, CAN, Profibus (by sub model) 5.7 "/8.4"/10.4“

The E version has added SmartWire DT Master RS485, CAN/Profibus (depending on the sub model) SmartWire-DT 5.7"/8.4"/10.4"

Screen and System Configuration

Category specific parameters

Screen feature type: resistive touch screen; Resolution: VGA (640 × 480); Color: 64k colors; Brightness: 350 cd/m ²; Contrast ratio: 300:1; Backlight lifespan: 40000 hours (software adjustable brightness)

System configuration processor: 32-bit RISC, 400MHz; Memory: 64MB DRAM; Storage: 64MB NAND Flash, 2MB NOR Flash, 125KB NVRAM; External storage: 1 SD card slot (supports SDA 1.00 standard, does not support SDHC)

Real time clock battery model: CR2032 (3.0V, 220mAh); Backup time: 10 years (non replaceable, welded)

Packaging Content

The basic accessories include the host, fixed brackets (4/6/8 according to size), sealing strips, and power connectors. The E-version is equipped with an additional SmartWire DT Master power connector; Optional accessories include 5 sets of touch pens (model ACCESSORIES-TP-TEN-5, part number 171192), which need to be ordered separately.


Safety Regulations

Warning symbol grading: The document adopts a three-level warning, DANGER for fatal danger, Warning for serious danger, CAUTION for minor injury/equipment damage, and there is also a general information prompt symbol ().

Personnel requirements: Only qualified and trained personnel are allowed to install/operate/maintain the equipment. All operators must read and understand the instructions thoroughly, and the use of single page content for operation is prohibited.

General safety taboos

Prohibit the use of equipment for personnel/equipment protection safety functions;

The equipment is prohibited from opening the cover, as there are live parts inside that can easily cause electric shock;

Avoid electrostatic discharge: Before contacting the equipment, touch the grounded metal and do not touch static sensitive components;

Avoid equipment condensation: After sudden changes in temperature and humidity, it is necessary to let it stand at room temperature before turning it on to prevent short circuits;

Avoid UV exposure: To prevent plastic from becoming brittle, keep away from sunlight/UV lamps;

Cleaning taboos: Do not use sharp tools/corrosive cleaning agents to prevent liquids from entering the equipment.

Requirements for use in explosive environments

Can only be used in ATEX 94/9/EC Zone 22 area (II 3D Ex tc IIIC T70 ° C IP6x);

When using Zone 22, the grounding resistance of the metal parts that can be touched should be less than 10 ^ 9 Ω to avoid beam discharge and prevent equipment from being impacted. The device must be turned off before inserting or unplugging connectors;

Installation requires the use of 8 fixed brackets to ensure sealing integrity.

Installation specifications

Installation foundation requirements

Installation position: Can be installed in control cabinets, operation panels, or workstations, supporting horizontal/vertical installation, with a vertical installation tilt angle of ≤± 45 ° (when there is no forced ventilation);

Environmental requirements: Avoid direct sunlight, with a distance of ≥ 3cm around ventilation openings and ≥ 15cm around heat sources;

Installation surface requirements: The material thickness at the opening should be 2-5mm, the flatness should be ≤ 0.5mm, and the surface roughness Rz should be ≤ 120.

Installation opening size (± 1mm)

Screen size, hole size (length x width, mm), device size (length x width x depth, mm), weight (approximately)

5.7 inches 198 × 142 212 × 156 × 52.5 1.3kg

8.4 inches 261 × 194--

10.4 inches 329 × 238 345 × 260 × 54 3.0kg

Core interface parameters and wiring requirements

Requirements for the use of key parameters in interface names

Power supply interface 24VDC SELV, voltage range 19.2-30.0VDC (with ripple 18.0-31.2VDC); Connector: Phoenix MSTB 2.5/3-ST-5.08; Wiring cross-sectional area 0.75-2.5mm ²; Built in reverse protection and fuse with torque of 0.6-0.8Nm (only replaceable by the original factory); Functionally connected to the casing/0V, without electrical isolation

Ethernet 100Base TX/10Base-T, STP cable for RJ45 interface, crossover cable for devices, direct connection for switches, maximum length 100m

USB interface USB 2.0 (Host/Device), no electrical isolation USB Host maximum power consumption 2.5W, supports 1.5/12/480 MBit/s

SmartWire DT (E-version) POW/AUX power supply 24VDC, SWD interface supports 99 slave stations requiring external overcurrent protection (DIN standard 3A, UL standard 2A), bus rate 125/250 Kbit/s

CAN interface 9-pin D-Sub male, no electrical isolation, characteristic impedance of 120 Ω using shielded twisted pair, maximum length of 500m (0.75mm ²), supporting 32 stations

Profibus interface 9-pin D-Sub female head, no electrical isolation, characteristic impedance of 150 Ω using Profibus A-class shielded twisted pair, maximum length of 1200m, supporting 32 stations

Installation process and fixing requirements

Preparation for drilling: Process installation holes according to the corresponding dimensions to ensure that the installation surface meets the requirements;

Sealed installation: Insert the sealing strip into the groove of the front plate of the equipment (the joint should be at the bottom, without gaps/twists);

Fixed equipment: Insert the device into the installation hole from the front and fix it with a bracket from the back. For IP65/Zone 22 scenarios, 8 brackets are required with a screw torque of ≤ 0.2Nm;

Wiring debugging: Connect the cables according to the interface specifications (low impedance grounding of the shielding layer), and check the correctness of the wiring before powering on.

Operation and Maintenance

Basic Operations

Startup: The device does not have a power switch and automatically boots after being powered on. The first startup requires configuring system parameters and installing application programs;

Shutdown: Simply disconnect the power supply, and ensure that there are no SD card read or write operations before shutting down;

SD card operation: It can only be plugged in and unplugged when the device is powered off, to avoid power failure during reading and writing (software operation), and to prevent data loss or SD card damage.

Daily Maintenance

Touch screen maintenance: Clean with a clean, soft and damp cloth when contaminated. For stubborn stains, spray a small amount of cleaning agent on the cloth (corrosive agents are prohibited); Calibration is required when the touch response is abnormal (refer to the "Windows CE System Description");

Regular inspection: It is recommended to regularly check the wiring tightness, sealing integrity, and interface status according to NFPA 70B standard;

Battery maintenance: The built-in CR2032 battery is non replaceable and has a lifespan of approximately 10 years. If the battery fails, it needs to be returned to the factory for processing.

Troubleshooting (core faults)

Possible causes and solutions for the fault phenomenon

The device cannot start and the power interface is not powered. Check the connection between the power cable and the connector

Touch screen unresponsive/abnormal response uncalibrated, installation screws too tight, touch screen contamination calibrated touch screen; Loosen screws (torque ≤ 0.2Nm); Clean the touch screen

Display the backlight settings in the visualization software for black screen backlight off and backlight fault check; return to factory for repair

Prompt "Touch is dirty or defective" Touch screen contamination or uncalibrated Clean touch screen and recalibrate

Maintenance and scrapping

Maintenance restrictions: The equipment can only be opened and repaired by Eaton's original factory or authorized repair center. Unauthorized opening of the cover will result in loss of warranty;

Scrap disposal: Equipment containing lithium batteries (CR2032) must be disposed of in accordance with relevant national regulations or returned to Eaton's original factory/sales office. Unauthorized disposal is prohibited.


Summary of Core Technical Parameters

Category specific parameters

Power consumption 5.7 ": maximum 7W for base, maximum 2.5W for USB Host, total maximum 9.5W; 8.4"/10.4 ": maximum 12W for base, maximum 2.5W for USB Host, total maximum 14.5W; startup surge current: 1.5A/2s

Front protection level: IP65/Enclosure Type 4X (indoor only); Rear: IP20/Enclosure Type 1

Environmental parameters operating temperature: 0-50 ℃; Storage/transportation temperature: -20-60 ℃; Relative humidity: 10-95% (no condensation); Anti vibration: IEC/EN 60068-2-6 (5-9Hz displacement 3.5mm, 9-60Hz displacement 0.15mm, 60-150Hz acceleration 2g); Impact resistance: IEC/EN 60068-2-27 (15g/11ms)

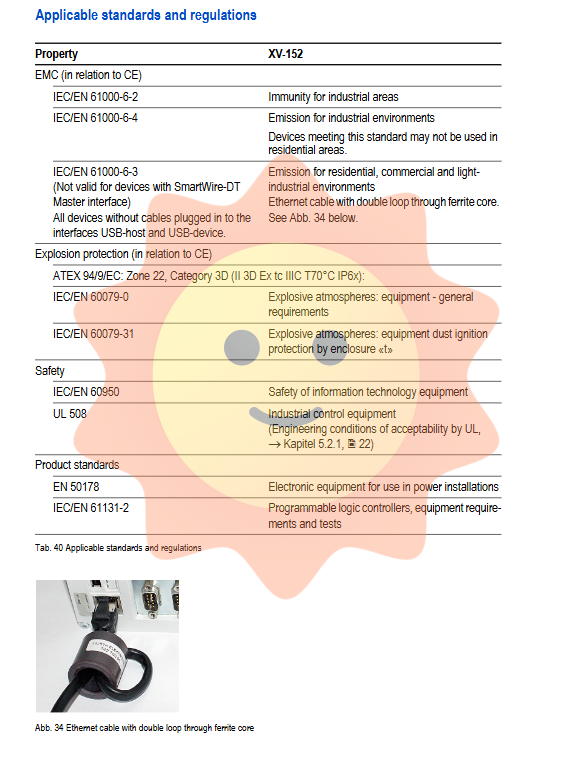

Certification Standard EMC: 2004/108/EC; Safety: IEC/EN 60950, UL 508; Explosion protection: ATEX 94/9/EC Zone 22; Product standards: EN 50178, IEC/EN 61131-2


Materials and Packaging

Equipment material: The shell is made of galvanized steel plate, the front plate is made of anodized aluminum (Peraluman 101), the back plate is made of PC-GF, the touch back plate is made of glass+polyester film, and all shell materials are halogen-free;

Packaging material: The exterior is cardboard, and the interior is cardboard with PE foil and polyethylene (PE) plastic bags.
