Eaton MICRO PANEL XV-152 Industrial Tablet Operating Manual

Eaton MICRO PANEL XV-152 Industrial Tablet Operating Manual

Equipment Core Description

Product positioning and core functions

XV-152 is an industrial grade HMI/PLC integrated equipment, mainly used in the field of machine and system manufacturing. Its core functions include visual display of industrial equipment, manual operation control, data acquisition and communication. It supports independent use as HMI or integration of PLC functions, without built-in operating system description, and needs to be used in conjunction with Windows CE system and XSoft-CoDeSys-2 programming tool.

Core version and specifications

The device is divided into two versions, D and E, with screen sizes covering 5.7 "/8.4"/10.4 ". The core configuration is as follows:

Version core differences support interface adaptation to screen size

D-version basic communication versions RS232, RS485, CAN, Profibus (by sub model) 5.7 "/8.4"/10.4“

The E version has added SmartWire DT Master RS485, CAN/Profibus (depending on the sub model) SmartWire-DT 5.7"/8.4"/10.4"

Screen and System Configuration

Category specific parameters

Screen feature type: resistive touch screen; Resolution: VGA (640 × 480); Color: 64k colors; Brightness: 350 cd/m ²; Contrast ratio: 300:1; Backlight lifespan: 40000 hours (software adjustable brightness)

System configuration processor: 32-bit RISC, 400MHz; Memory: 64MB DRAM; Storage: 64MB NAND Flash, 2MB NOR Flash, 125KB NVRAM; External storage: 1 SD card slot (supports SDA 1.00 standard, does not support SDHC)

Real time clock battery model: CR2032 (3.0V, 220mAh); Backup time: 10 years (non replaceable, welded)

Packaging Content

The basic accessories include the host, fixed brackets (4/6/8 according to size), sealing strips, and power connectors. The E-version is equipped with an additional SmartWire DT Master power connector; Optional accessories include 5 sets of touch pens (model ACCESSORIES-TP-TEN-5, part number 171192), which need to be ordered separately.

Safety Regulations

Warning symbol grading: The document adopts a three-level warning, DANGER for fatal danger, Warning for serious danger, CAUTION for minor injury/equipment damage, and there is also a general information prompt symbol ().

Personnel requirements: Only qualified and trained personnel are allowed to install/operate/maintain the equipment. All operators must read and understand the instructions thoroughly, and the use of single page content for operation is prohibited.

General safety taboos

Prohibit the use of equipment for personnel/equipment protection safety functions;

The equipment is prohibited from opening the cover, as there are live parts inside that can easily cause electric shock;

Avoid electrostatic discharge: Before contacting the equipment, touch the grounded metal and do not touch static sensitive components;

Avoid equipment condensation: After sudden changes in temperature and humidity, it is necessary to let it stand at room temperature before turning it on to prevent short circuits;

Avoid UV exposure: To prevent plastic from becoming brittle, keep away from sunlight/UV lamps;

Cleaning taboos: Do not use sharp tools/corrosive cleaning agents to prevent liquids from entering the equipment.

Requirements for use in explosive environments

Can only be used in ATEX 94/9/EC Zone 22 area (II 3D Ex tc IIIC T70 ° C IP6x);

When using Zone 22, the grounding resistance of the metal parts that can be touched should be less than 10 ^ 9 Ω to avoid beam discharge and prevent equipment from being impacted. The device must be turned off before inserting or unplugging connectors;

Installation requires the use of 8 fixed brackets to ensure sealing integrity.

Installation specifications

Installation foundation requirements

Installation position: Can be installed in control cabinets, operation panels, or workstations, supporting horizontal/vertical installation, with a vertical installation tilt angle of ≤± 45 ° (when there is no forced ventilation);

Environmental requirements: Avoid direct sunlight, with a distance of ≥ 3cm around ventilation openings and ≥ 15cm around heat sources;

Installation surface requirements: The material thickness at the opening should be 2-5mm, the flatness should be ≤ 0.5mm, and the surface roughness Rz should be ≤ 120.

Installation opening size (± 1mm)

Screen size, hole size (length x width, mm), device size (length x width x depth, mm), weight (approximately)

5.7 inches 198 × 142 212 × 156 × 52.5 1.3kg

8.4 inches 261 × 194--

10.4 inches 329 × 238 345 × 260 × 54 3.0kg

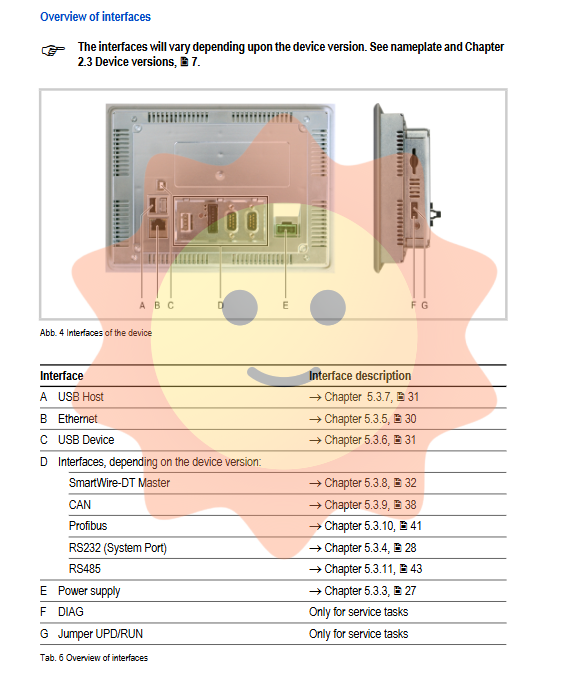

Core interface parameters and wiring requirements

Requirements for the use of key parameters in interface names

Power supply interface 24VDC SELV, voltage range 19.2-30.0VDC (with ripple 18.0-31.2VDC); Connector: Phoenix MSTB 2.5/3-ST-5.08; Wiring cross-sectional area 0.75-2.5mm ²; Built in reverse protection and fuse with torque of 0.6-0.8Nm (only replaceable by the original factory); Functionally connected to the casing/0V, without electrical isolation

Ethernet 100Base TX/10Base-T, STP cable for RJ45 interface, crossover cable for devices, direct connection for switches, maximum length 100m
