Emerson PAC8000 Remote I/O Complete Analysis

4-channel RTD input (8106-TI-RT)

Digital I/O

8/16/32 channel DI, 24VDC, isolated/non isolated

8-channel DI, 115Vac/230Vac

8-channel DO, 2-60VDC, isolated/non isolated

8-channel DO, 20-250VAC

8-channel configurable DI/DO (8129-IO-DC)

Special function module

Pulse input module

Sequential Event (SOE) Input Module (32 Channels, 8127-DI-SE)

Smoke and heat detector interface (8139-SH-DC)

Safe AI (8-channel, with HART, suitable for SIL applications) (8810-HI-TX)

Intrinsic safety I/O

8-channel AI, 4-20mA, with HART (8201-HI-IS)

8-channel AO, 4-20mA, with HART (8202-HO-IS)

8-channel RTD input (8206-TI-IS)

16 channel DI, switch/proximity detector (8220-DI-IS)

4-channel DO, solenoid valve drive (8215-DO-IS)

4.2 Diagnostic Information

All PAC8000 I/O modules provide comprehensive diagnostic information, including:

channel status

Disconnection detection

Overload/short circuit indication

Module Health Status

Read directly through PME software or network

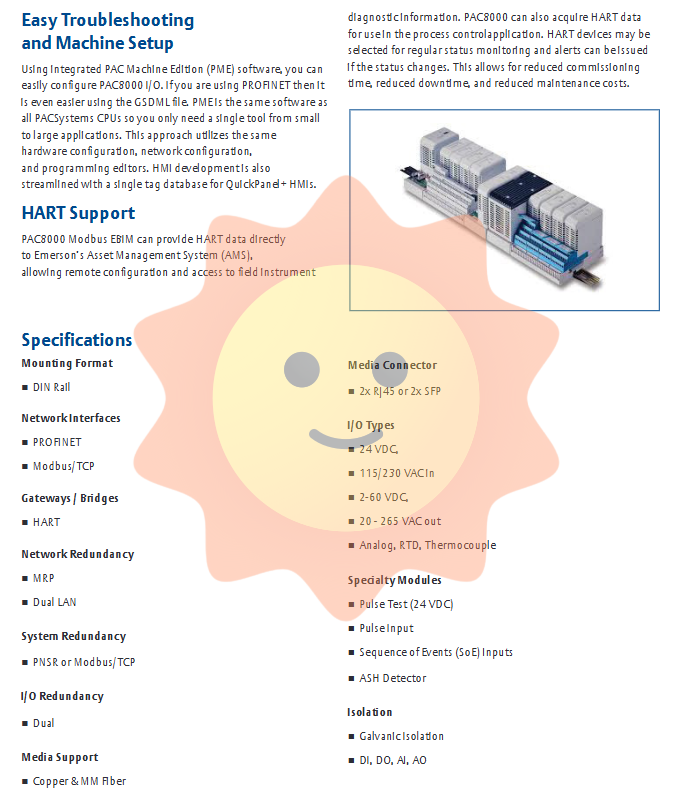

Chapter 5: Easy Configuration and Troubleshooting

5.1 PAC Machine Edition (PME) Integration

The PAC8000 uses the same engineering software as the PACSystems controller - PAC Machine Edition (PME). This enables users to:

Unified hardware configuration: Configuring controllers, networks, and I/O in one project

Consistent user experience: use the same editor regardless of project size

Simplify HMI development: Share tag database with QuickPanel+HMI to reduce repetitive work

5.2 PROFINET GSDML file support

For PROFINET networks, PAC8000 provides standard GSDML files. Users only need to import files to easily configure the network of I/O devices without the need for complex programming.

Chapter 6: HART Support and Asset Management

6.1 Integrated AMS

The PAC8000 Modbus EBIM is capable of directly transmitting HART data to Emerson's Asset Management System (AMS). This means:

Remote configuration: HART instrument parameters can be set in the control room

Diagnostic access: Real time acquisition of instrument status information (such as sensor faults, electrode contamination, etc.)

Predictive maintenance: Identifying potential issues in advance through status monitoring

6.2 HART Data in Process Control

In addition to asset management, PAC8000 can also use HART data in process control applications. For example:

Regularly poll the status of HART devices

Trigger alarm when state changes

Use secondary variables such as temperature and pressure for control logic

These features help shorten debugging time, reduce maintenance costs, and improve factory availability.

Chapter 7 Quick Overview of Technical Specifications

Parameter specifications

Installation method: DIN rail

Network interface PROFINET (dual RJ45 or dual SFP), Modbus/TCP

Gateway/Bridge HART

Network redundancy MRP, dual LAN

System redundancy PNSR (PROFINET) or Modbus/TCP

I/O redundant dual module

I/O type 24VDC, 115/230VAC input; 2-60VDC, 20-265VAC output; Analog quantity, RTD， thermocouple

Special module pulse testing, pulse input, SOE， Smoke/Heat Detection

Isolation between channels/channel to ground isolation (DI/DO/AI/AO)

Chapter 8 Comparison of I/O Families

PAC8000 is positioned as a high-end solution for harsh environments and intrinsic safety applications within the Emerson I/O product family. Comparison with other series is shown in the table below:

Product Series  PACSystems RSTi PACSystems RSTi-EP VersaPoint VersaMax Modular RSTI-OM PAC8000 PACSystems RX3i

Type Distributed Slicing Distributed Slicing Rack mounted Airborne Distributed Intrinsic Safety/Harsh Environment Rack mounted

network interface  PROFINET, PROFIBUS DP, Modbus/TCP, Modbus/RTU, DeviceNet PROFINET, PROFIBUS DP, Modbus/TCP, Ethernet/IP PROFINET, PROFIBUS DP, Modbus/TCP, DeviceNet PROFINET, PROFIBUS DP, Modbus/TCP, EGD, DeviceNet, GENIUS PROFINET, Modbus TCP, OPC UA, MQTT PROFINET, Modbus/TCP PROFINET, PROFIBUS DP, Modbus/TCP, EGD, CMX

System redundancy  Modbus/TCP, Modbus/RTU, DeviceNet PROFINET, PROFIBUS DP - PNSR, EGD, GENIUS - PNSR, Modbus/TCP PNSR, EGD

Hot swappable or not, yes or not

Environmental protection IP20, -20~60 ° C IP20, -20~55 ° C IP20, 0~60 ° C, optional -40 ° C and three proof paint IP67, -20~60 ° C IP20, -40~70 ° C, three proof paint IP20, -40~70 ° C, three proof paint IP20, 0~60 ° C, optional -40 ° C and three proof paint

certification  UL, UL HazLoc C1D2, CE, ATEX Zone2, TUV/SIL3 UL, UL HazLoc C1D2, CE, ATEX Zone2 UL, UL HazLoc C1D2, CE, ATEX Zone2 UL, UL HazLoc C1D1, CE, ATEX Zone1， Intrinsic Safety UL, UL HazLoc C1D2, CE, ATEX Zone2, Marine UL, UL HazLoc C1D1, CE, ATEX Zone1, Intrinsic Safety, Marine UL, UL HazLoc C1D2, CE, ATEX Zone2, Marine (Partial)

Module size (W x H x D) 12 x 99 x 70mm 11.5 x 120 x 76mm 12 x 120 x 70mm 66.8 x 163.5 x 70mm 65 x 212 x 29.8mm 42 x 110 x 106mm 34 x 145 x 140mm

Typical Applications: Basic Machine Control Machine Control, Light Process Control General Automation Onboard Cabinet, I/O Poor Environment Process Control Complex Machine/Process Control, Motion Control Complex Machine/Process Control, Motion Control

Good diagnostic level, better, best, best, best, best, best

Chapter 9 Selection Guide and Ordering Information

9.1 Bus interface module and carrier

Order number description
