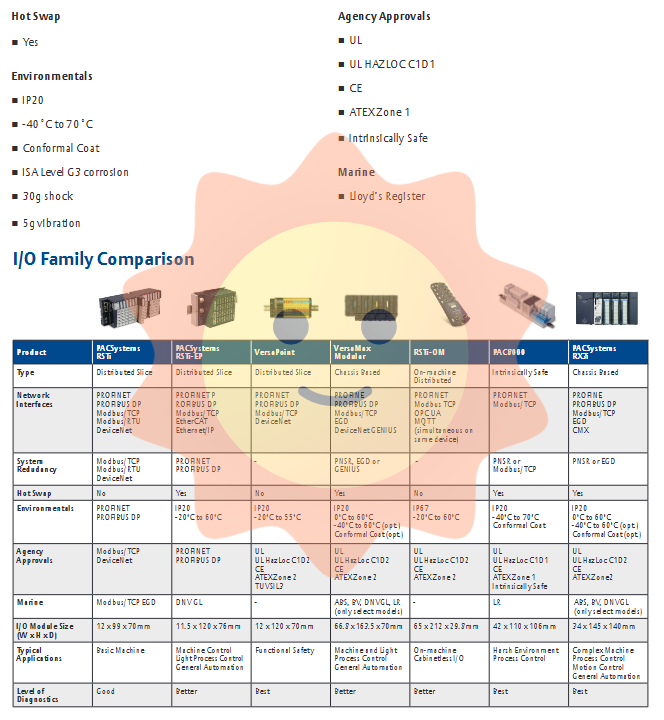

Emerson PAC8000 Remote I/O Complete Analysis

8515-BI-PN PROFINET scanner module, dual 100Mbps copper interfaces

8752-CA-NS Universal Node Service Carrier

8522-EB-MT Ethernet bus interface

8755-CA-NS EBIM Carrier

9.2 General I/O modules (partial)

Order number description

8101-HI-TX 8-channel AI, 4-20mA, with HART

8102-HO-IP 8-channel AO with HART, 4-20mA

8103-AI-TX 8-channel AI, 4-20mA

8104-AO-IP 8-channel AO, 4-20mA

8105-TI-TC 4-channel thermocouple/mV input

8106-TI-RT 4-channel RTD input

8109-DI-DC 8-channel DI, 24Vdc isolated, leakage type

8111-DI-AC 8-channel DI, 115Vac isolated, leakage type

8114-DI-AC 8-channel DI, 230Vac non isolated, module powered

8115-DO-DC 8-channel DO, 2-60Vdc non isolated, module powered

8118-DO-AC 8-channel DO, 20-250Vac isolated, passive

8122-DI-DC 16 channel DI, 24Vdc isolated, leakage type

8125-DI-DC 32 channel DI, non isolated, module powered

8127-DI-SE 32 channel SOE module

8129-IO-DC 8-channel configurable DI/DO

8132-AI-UN 8-channel isolated universal AI

8810-HI-TX 8-channel safety AI, 4-20mA, with HART

9.3 Intrinsic safety I/O module

Order number description

8201-HI-IS 8-channel intrinsic safety AI, 4-20mA, with HART

8202-HO-IS 8-channel intrinsically safe AO, 4-20mA, with HART

8204-AO-IS 8-channel intrinsic safety AO, 4-20mA

8205-TI-IS 8-channel intrinsic safety thermocouple/mV input

8206-TI-IS 8-channel intrinsic safety RTD input

8215-DO-IS 4-channel intrinsic safety DO, solenoid valve drive (IIC gas group)

8220-DI-IS 16 channel intrinsic safety DI, switch/proximity detector

9.4 On site terminals and accessories

Universal terminal

8602-FT-ST: Standard Terminal

8604-FT-FU: Fused Terminal

8605-FT-TC: Thermocouple Terminal

8606-FT-RT: RTD terminal

8610-FT-NA: Non arc terminal (Div 2)

Intrinsic safety terminal

8621-FT-IS: Standard Intrinsic Safety Terminal

8622-FT-IS: Intrinsic safety terminal with circuit disconnect (not applicable to 8-channel DI)

8623-FT-IS: Intrinsic safety terminal for 8220-DI-IS

8624-FT-IS: Intrinsic safety terminal with circuit disconnect

other

8618-FT-MT: 16 pin centralized terminal assembly (Div 2)

8619-FT-MT: 44 pin centralized terminal assembly (Div 2)

8632-FT-NI: 32 channel on-site terminal

9.5 I/O Carrier

Order number description

8707-CA-08 8 module carrier

8709-CA-08 8 module carrier with grounding rod

8710-CA-04 Module Carrier

8711-CA-NS Node Service Carrier, Screw Terminal LAN

8712-CA-NS node service carrier, PROFIBUS-DP LAN

8715-CA-BI BIM carrier only (for PROFIBUS and Modbus LAN)

8717-CA-PS as a carrier for 8910-PS-DC

8720-CA-04 Module Intrinsic Safety Carrier

8723-CA-RB Railbus isolator carrier

8724-CA-PS Intrinsic Safety Module Power Carrier

8727-CA-08 Module Intrinsic Safety Carrier

9.6 Expansion Cable

Order number description

8041-CC-35 Carrier Expansion Cable, 0.35m

8042-CC-85 0.85m

8044-CC-20 2.0m

8034-CC-12 intrinsically safe carrier extension cable set, 1.2m

9.7 Power Supply and Accessories

Order number description

8913-PS-AC 5A 12VDC&5A 24VDC AC input power supply

8914-PS-AC 10A 24VDC AC input power supply

8413-FK-DN 8913/4 Power DIN Rail Installation Kit

8414-FK-SU 8913/4 Power Supply Surface Installation Kit
