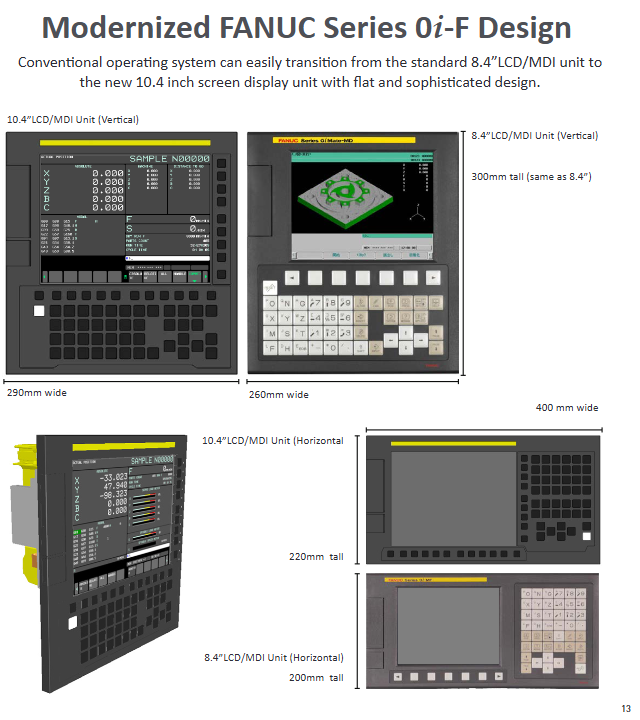

FANUC Series 0i-F Maintenance and Troubleshooting

Low inertia spindle motor: For applications with frequent start stop cycles, enabling HRV (High Response Vector Control) and setting it to HRV3 (parameter 11240 # 1=11240 # 4=1) can improve dynamic response.

Excessive spindle load: Check cutting conditions, tool wear, or spindle bearings.

Security function:

If Dual Check Safety is configured, the spindle speed is limited to four safety ranges. When the speed exceeds the set limit, the system will trigger the "Safe Speed Exceed" alarm and stop the spindle. At this point, it is necessary to check whether the security parameters (such as parameter 1310 # 0, etc.) are set correctly, or to lift the security speed limit (permission required).

Dual Check Safety Function Configuration and Troubleshooting

0i-F provides integrated safety features, achieving Category 3/PL d (or PL e depending on configuration), by redundantly monitoring the speed and position of servo/spindle drives, and using a single cable for safe disconnection. This is a key function that meets European standards.

4.1 Unable to reset after triggering the safety function

Phenomenon:

When the safety conditions are violated (such as opening the safety door), the machine tool enters a safe stop state. Even if the safety door is closed, it cannot resume normal operation and displays "Emergency Stop" or "Safety Door Open".

Reset process:

Confirm that the safety circuit has been closed: check if the external safety relay has been reconnected and if the dual channel signals are consistent.

Perform a safety reset: Press the "safety reset" button on the operation panel (which must be connected to a dedicated input of the safety I/O unit), or trigger a safety reset through a PMC signal (usually requiring a rising edge reset signal after the G8.4 condition is met).

Check the status of the safety I/O unit: The LED on the safety I/O unit indicates the status of each channel. If both "IN1" and "IN2" are green, but "OUT" is red, it indicates that the internal security logic has not been released. Need to check the feedback loop (EDM).

Use diagnostic function: In the "Safety Signal History" screen of Dual Check Safety, you can view recent safety events and help locate which sensor or limit triggered the stop.

4.2 Excessive sensitivity of safety speed monitoring leads to frequent shutdowns

Phenomenon:

During normal machining, the machine suddenly reports "Safe Speed Exceed" or "Safe Position Exceed", but the actual speed and position do not exceed the programmed range.

solve:

The safety speed limit values (parameters 1815 # 5, 1816, etc.) may be set too close to the commonly used speed. For example, if the safety speed limit is set to 1000rpm, and the spindle momentarily exceeds 1050rpm (allowed overshoot) during acceleration, it will be triggered. Adjust the tolerance value appropriately, such as setting it to 1200rpm.

The monitoring window time is set too short. The 'delay time' in the safety parameters can be adjusted to allow for short-term transient exceedance.

Check if there is noise in the encoder feedback that causes instantaneous jumps in speed calculation. Improve shielding grounding.

Troubleshooting of I/O and PMC

5.1 PMC ladder diagram cannot be uploaded or downloaded

Phenomenon:

When using CF card or Ethernet to transmit PMC program, prompt "FILE NOT FOUND" or "WRITE PROTOCT".

solve:

Confirm that the PMC program write protection switch (if any) is not turned on. For 0i-F, parameters # 8132 and # 8133 control the writable nature of the PMC program storage area. Usually, KEEP relay K17.0 (or similar) needs to be set to 1 before writing.

Ensure that the CF card format is FAT32 and the file name is "PMC1.000" or conforms to naming conventions.

When using FANUC LADDER-III software for Ethernet transmission, it is necessary to set an IP address and ensure that the CNC side "FOCAS" driver is enabled.

5.2 I/O Link i Device Communication Interruption

Phenomenon:

The operation panel buttons are unresponsive, or the LED on the I/O module is flashing red.

troubleshoot

Check the I/O Link i cable (optical cable or twisted pair) connection. The maximum length is 10 meters.

Enter the system diagnosis and check the I/O Link status (diagnosis numbers 202~205). If "OFF" or "ERROR" is displayed, reconfigure the I/O device address (parameters 190-194).

For the safety I/O unit, a separate power supply of 24V is required, and the fuse should be checked.

Maintenance and Preventive Operations Guidelines

6.1 Fan and battery replacement (no tools required)

0i-F is designed to be maintenance friendly, and both the fan and battery are replaced without tools:

Cooling fan: located on the back or side of the CNC unit. Pinch the buckles on both sides to pull it out. Pay attention to the wind direction arrow when inserting a new fan. It is recommended to replace the motherboard every 2-3 years to prevent overheating and damage to the motherboard.

Lithium ion battery: usually located on the front of the motherboard (CR2032 or BR-2/3A). Pull out the old battery directly and insert the new battery, paying attention to the positive and negative poles. It must be replaced while the CNC is powered on, otherwise SRAM data will be lost.
