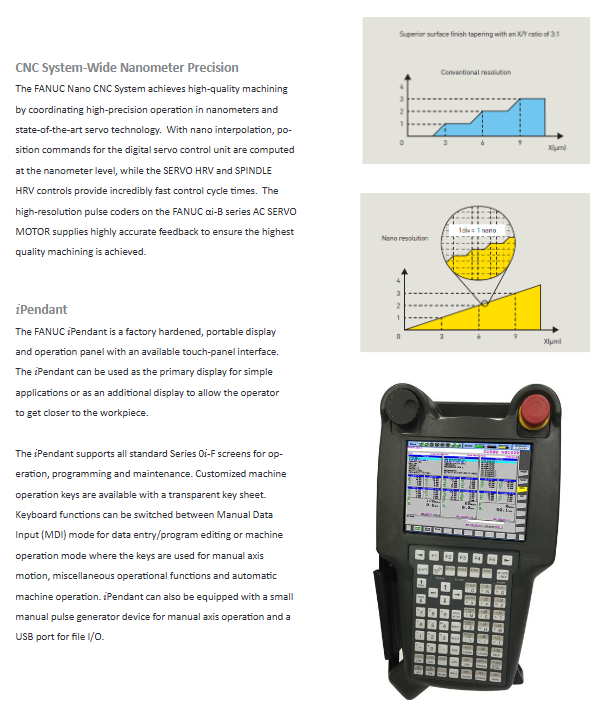

FANUC Series 0i-F Maintenance and Troubleshooting

Troubleshooting Program and Data Management

2.1 Unexpected loss or garbled code in stored programs

Phenomenon:

After booting up, it was found that all part programs, macro programs, offsets, or parameters had become default values, or unfamiliar characters appeared.

Root cause:

SRAM data loss is usually caused by low battery voltage, poor battery contact, or motherboard circuit failure. In addition, static discharge or strong electromagnetic interference may also cause memory damage.

Data recovery steps:

Use built-in backup: 0i-F has built-in backup function (Built In Backup). Go to the system menu [SYSTEM] → [DATA SAVE/ACKUP] → select "ORE FROM FLASH ROM. If a backup has been done before, all data (including parameters, programs, biases, PMC ladder diagrams, etc.) can be quickly restored. Attention: This backup is stored in flash memory and will not be lost due to battery depletion.

Recovery from CF card or USB: Regularly export data to CF card or save via Ethernet. When restoring, enter BOOT SYSTEM (hold down the "-" and "." keys while turning on) and select "SYSTEM DATA LOAD".

Manually re-enter: If there is no backup, you can only input one by one according to the parameter list provided by the machine tool manufacturer. This is very time-consuming, so it is strongly recommended to backup regularly.

Preventive strategy:

Perform a full backup to the CF card once a month.

Record key parameters (such as servo parameters 1020, 1023, 1820, etc.) in the machine tool manual.

Utilize FANUC's' Program Transfer Tool 'to automatically backup via Ethernet.

2.2 Part program cannot be deleted or created

Phenomenon:

When attempting to delete a program, the system prompts "GRAM NO. NOT FOUND" or "FILE PROTOCT"; When creating a new program, it prompts "Memory FULL" but there is still space in the actual memory.

Reason and solution:

Program protection: Check if parameter # 3202 (NE8/NE9) is enabled. When NE8=1, program editing is prohibited; When NE9=1, program number search and deletion are prohibited. Modify parameters through MDI mode: set NE8=0.

Folder management: 0i-F supports program folder functionality. If an attempt is made to delete a non empty folder, the system will reject it. All programs in the folder must be deleted first.

Memory fragmentation: Frequent addition/deletion of programs may cause memory fragmentation, resulting in insufficient remaining contiguous space. Solution: Perform "memory compression" - in edit mode, enter "-9999" to delete all programs, and then reload. Or perform memory initialization (cautious operation, backup data).

The file name is too long or contains illegal characters: 0i-F allows program names with a maximum of 32 alphanumeric characters, but does not allow the use of spaces or punctuation marks (except for underscores). Check the program name.

Servo and spindle adjustment and common faults

3.1 Servo motor vibration, whistling or inaccurate position

Phenomenon:

High frequency noise is emitted when the axis moves, there are vibration patterns on the machined surface, or the positioning error exceeds 0.01mm.

Automatic adjustment method:

Enter the [SYSTEM] → [SV-PRM] servo parameter screen.

Press the soft key [TUNE] → [AUTO TUNE].

Select the axis that needs to be adjusted and specify the "cutting feed rate" and "acceleration".

The system will automatically perform a test motion and recommend parameters such as the optimal speed loop gain (PK1V) and integration gain (PK1I). Press [SET] to save.

Manual optimization:

Reducing the proportional gain of the speed loop (PK1V, parameter 2021) can reduce vibration, but it will decrease rigidity.

Check the load inertia ratio (parameter 2020). If set too large or too small, it will cause oscillation. Actual inertia can be measured manually or automatically.

For low-frequency jitter (10-30Hz), it may be mechanical resonance. Enable the "notch filter" (parameters 2205, 2212, etc.) and set the center frequency and width.

Common alarms:

SV0430 (servo overload): Check the mechanical load, whether the motor brake is open, and whether the motor cable is out of phase.

SV0365 (abnormal pulse encoder signal): Check the encoder cable and plug to ensure good shielding. For absolute encoders, perform "absolute position setting" (parameter 1815 # 4=0, power off and restart, reset to 1, and set reference point).

SV0441 (Abnormal Current Offset): An internal fault in the amplifier usually requires replacement.

3.2 Unstable spindle speed or large rigid tapping error

Fault phenomenon:

The actual spindle speed does not match the command, or the pitch error during tapping exceeds the tolerance.

Key points of investigation:

Encoder feedback check: The spindle needs to be equipped with a position encoder (usually 1024p/r). Enter the diagnostic screen and monitor the actual spindle speed (diagnostic numbers 400~403). If the feedback value fluctuates greatly, check the encoder and connecting wires.

Rigid tapping parameters: correctly set parameters 5200 # 0 (tapping feed holding mode) and 5241~5243 (tapping acceleration and deceleration time constant). At the same time, ensure that the time constants of the spindle motor and Z-axis motor match.
