Foxboro ™ DCS Compact FBM201 Analog Input Interface Module

The longest length is 30m (98ft)

Material options include polyurethane (P/PVC) or low smoke halogen-free (LSZH) (LSZH temperature range -40~+105 ℃/-40~+221 ° F)

Type 1 (see Table 2 in the document for details), interface: 37 pin D-subminiature on the motherboard end, 25 pin D-subminiature on the TA end

Part number example polyurethane Type1 (0.5m: RH100BY; 30m: RH100CH); LSZH Type1（0.5m：RH100BC；30m：RH100BM）

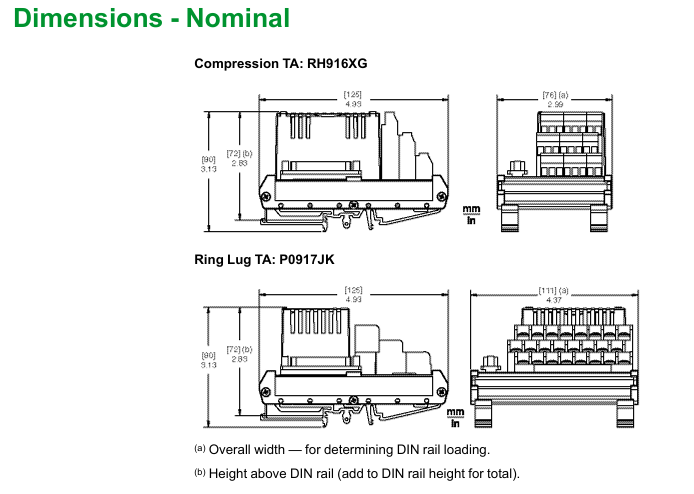

Terminal Component (TA) and Cable Details

1. TA type and certification

TA type material certification type certification content

Compression screw type polyamide (PA, -20~+70 ℃ tolerance) Type 1 UL/UL-C Class I Groups A-D Division 2 T4; DEMKO Ex nA IIC T4（Zone 2）

Ring terminal block type polyamide (PA) Type 1, Type 2 Type 1: Same as above; Type 2: UL/UL-C Class I Groups A-D Division 2 associated devices; DEMKO Zone 2 associated devices; Class 2 Limited Energy (60VDC/30VAC/≤ 100VA, user equipment must comply with Class 2)

All TAs comply with UL/UL-C standard for fire and electric shock prevention in ordinary places, as well as the European Low Voltage Directive.

2. Cable Selection Table (Table 2)

Cable Length Polyurethane (P/PVC) Type1 Part Number LSZH Type1 Part Number

0.5m（1.6ft） RH100BY RH100BC

1.0m（3.2ft） RH100BZ RH100BD

1.5m（4.9ft） RH100EP RH100EL

2.0m（6.6ft） RH100CA RH100BE

3.0m（9.8ft） RH100CB RH100BF

5.0m（16.4ft） RH100CC RH100BG

10.0m（32.8ft） RH100CD RH100BH

15.0m（49.2ft） RH100CE RH100BJ

20.0m（65.6ft） RH100CF RH100BK

25.0m（82.0ft） RH100CG RH100BL

30.0m（98.4ft） RH100CH RH100BM
