Product Core Overview and Features

1. Core functions and positioning

Belonging to the Compact 200 Series I/O subsystem (see document PSS 41H-2COV for details), it has 8 independent analog input channels, each supporting a 2-wire 0-20 mA DC input, enabling interface conversion between on-site sensor signals and FCP (Field Control Processor).

Electrical compatibility with standard HART signals, suitable for the acquisition and transmission of analog signals in industrial automation scenarios.

2. Key characteristics

Specific content of characteristic categories

Isolation performance: Galvanic isolation is achieved between each analog input channel and other channels or ground to avoid signal interference

The accuracy guarantee adopts sigma delta data conversion technology (single channel independent conversion), generating a new reading every 25ms; Support configurable integration period for filtering out process noise and power line frequency noise (improving accuracy through average output)

Compact rugged design with environmental adaptability and physical protection of ABS shell; Adapt to G3 level (harsh) environments defined by ISA Standard S71.04

Easy to maintain installation on the Compact 200 series base plate, fixed with 2 screws; Support hot plugging (no need to remove on-site device wiring, power or communication cables when replacing modules)

The front of the status monitoring is integrated with red/green LED indicator lights, which intuitively display the operating status of the module

Detailed specification parameters

1. Functional specifications

Specification category specific parameters

The communication interface communicates with the associated FCM (fieldbus communication module) or FCP through a redundant 2 Mbps module fieldbus; Support A/B dual path switching, automatically switching to the active path in case of single path failure

Input protection current limit: conventional design ≤ 40mA, short circuit ≤ 100mA; withstand 600VAC (1 minute, not long-term applicable); Prohibited access to voltages greater than 30VAC/60VDC (violating electrical safety regulations and posing a risk of electric shock)

Power requirement input voltage: 24 VDC redundant input (+5%/-10% fluctuation tolerance); Power consumption: 7W; heat dissipation: 4W

The calibration requirement module and terminal components (TA) do not require calibration, reducing maintenance costs

Compliance Certification - EMC: Complies with the European EMC Directive (2004/108/EC (before April 20, 2016), 2014/30/EU (after April 20, 2016)), meets EN61326-1:2013 Class A (emission) and industrial immunity level

-Product safety: UL/UL-C certification (applicable to Class I Groups A-D, Division 2, T4 enclosure systems); The communication circuit meets the Class 2 requirements of NFPA 70 Article 725 and CSA C22.1 Section 16; ATEX 2014/34/EU certification (DEMKO Ex nA IIC T4, applicable to Zone 2 enclosures)

-Environmental Protection: Compliant with RoHS Directive 2011/65/EU (including revised directives 2015/863, 2017/2102)

-International certification: IECEx Certified

2. Environmental specifications

Environmental parameters, working conditions, storage conditions

Temperature module: -20~+60 ℃ (-4~+140 ° F); TA：-20~+70℃（-4~+158°F） -40~+70℃（-40~+158°F）

Relative humidity 5%~95% (non condensing) No additional requirements

Altitude -300~+3000m (-1000~+10000ft) -300~+12000m (-1000~+40000ft)

Pollution level meets EIA Standard 364-65 Class III testing, compatible with ISA S71.04 G3 environment without additional requirements

Vibration 0.75g (frequency range 5~500Hz) No additional requirements

Note: The environmental limits of the module can be enhanced by the type of enclosure, and reference should be made to the corresponding product specification sheet (PSS) for the enclosure.

3. Physical specifications

(1) Installation and Dimensions

Installation method and size of components (nominal)

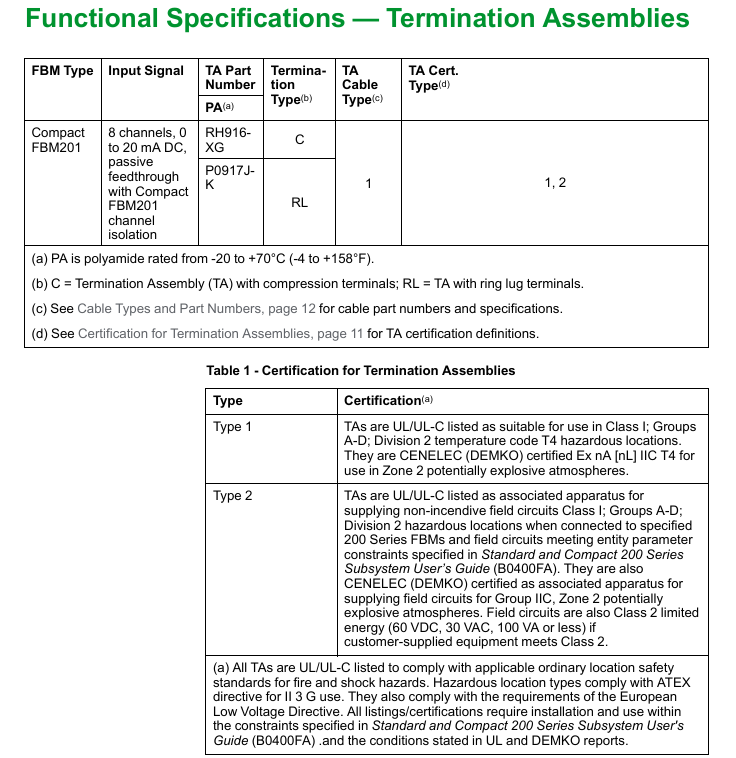

The Compact FBM201 module is installed on the Compact 200 series 16 slot horizontal base plate; The base plate supports DIN rail installation or 19 inch rack installation (requires installation kit) with a height of 130mm (5.12in); Width: 25mm (0.98in); Depth: 150mm (5.9in) (139mm/5.46in with baseboard connector)

Terminal assembly (TA) installed on DIN rail (compatible with 32mm/1.26in, 35mm/1.38in specifications) compression type TA (RH916XG): total width 125mm (reference); Circular terminal block TA (P0917JK): 72mm height above DIN rail (reference), see document page 13 for details

(2) Weight and part number

Part weight and part number

Compact FBM201 module weighs approximately 185g (6.5oz)-

TA (compression type) approximately 181g (0.40lb) RH916-XG

TA (ring terminal type) approximately 249g (0.55lb) P0917J-K

(3) Wiring and cables

TA wiring specifications:

Compression type: Supports solid/multi strand wires (0.5~4mm ²/22~12AWG), multi strand wires with ferrorules (0.2~2.5mm ²/24~12AWG)

Ring terminal block type: supports 0.2-4mm ² wire, compatible with # 6 specification connector (0.375in/9.5mm), with or without plastic sleeve

terminal cable:

Specific requirements for cable parameters
