GE Hydran 201Ti Troubleshooting Practice

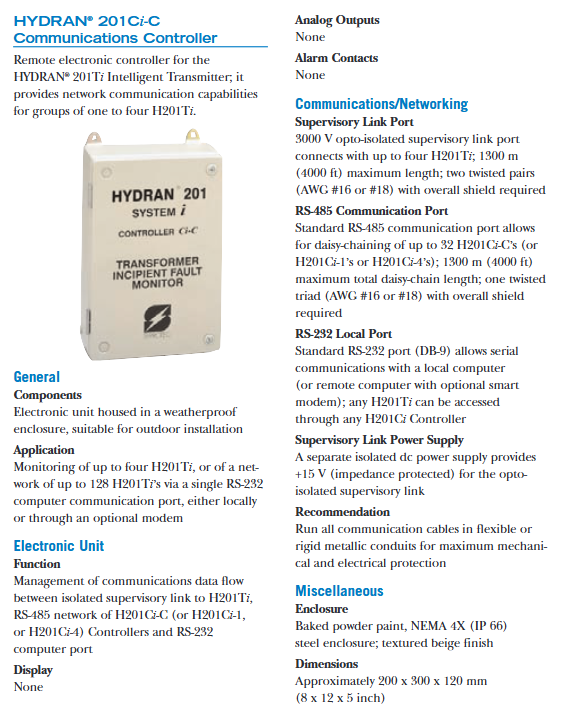

Port type, location, purpose, maximum length, cable requirements

Supervisory Link 201Ti ↔  Controller sensor data acquisition 1300 m 3 pairs twisted pair (16/18 AWG)+total shielding

Multi machine daisy chain networking between RS-485 controllers, 1300 meters long, with 1 twisted pair (16/18 AWG) and total shielding

RS-232 controller ↔  PC/modem local or remote upper computer communication 15m (standard) DB-9 serial port cable

3.2 Typical Networking Structure

Single machine mode: 1 201Ti → 1 201Ci-1 → RS-232 → PC (Hydran HOST)

Multi channel mode: 4 201Ti → 1 201Ci-4 → RS-485 → Superior controller or PC

Large scale network: up to 128 201Ti → multiple 201Ci-C → RS-485 daisy chain → main control PC

Important Notice:

The power supply for the monitoring link is provided by the isolated+15V power supply inside the controller. External power supply is strictly prohibited on site, otherwise it may damage the optocoupler isolation circuit.

Alarm configuration and logic

Hydran 201Ti supports three-level alarms, which can be configured through the controller:

Gas Hi (gas high limit)

Trigger condition: Gas concentration exceeds the first threshold

Output: Controller panel Hi indicator light on+relay engaged

Gas Hi Hi

Trigger condition: Gas concentration exceeds the second threshold

Output: Hi Hi indicator light+independent relay

Fail (system malfunction)

Trigger conditions: sensor failure, communication interruption, power failure, self-test abnormality

Output: Display screen turned off+analog output reset to zero+Fail relay action

Recommended wiring method:

Connect the dry contacts of all alarm relays to the common alarm panel (hard wired) of the substation, ensuring that alarms are sensed even if the upper computer is turned off or the Hydran HOST is not running.

Common troubleshooting and solutions

5.1 Abnormal high or fluctuating readings

Possible causes, inspection methods, and solutions

Mixing bubbles into the oil sample, observe whether there are bubbles discharged from the sampling port, slowly open the sampling valve to exhaust the bubbles, and ensure a full oil state

Before fully opening the valve, check the position of the gate valve or ball valve. Fully open the valve to ensure smooth oil flow

Compare historical data of sensor membrane fouling, and if it continues to be high, perform sensor cleaning or calibration (using H200i calibrator)

If the oil pressure is too low (close to vacuum), check the system oil pressure gauge and increase the oil pressure to>0kPa to avoid negative pressure sucking in air

5.2 Communication Failure (Supervisory Link)

Phenomenon: The controller displays "Comm Fail" or the corresponding channel has no data.

Troubleshooting steps:

Measure the terminal voltage of the monitoring chain: it should be+15V ± 5% (provided by the controller).

Check cable wiring: Are the three pairs of twisted pair cables reversed (Tx+/Tx - confused)?

Confirm that the cable length does not exceed 1300 meters and there are no intermediate joints.

Check if the shielding layer is single ended grounded (to avoid ground loops).

Replace the test with a spare 201Ti to determine if it is a sensor or link issue.

5.3 Analog output is zero or constant

Fail alarm activation? Check if the controller displays a fault, such as a sensor error.

Range configuration error? Confirm if the output range is set to 0-2000 ppm.

Output options do not match? If 4-20mA is required on-site but a non isolated 0-1mA model is purchased, on-site modification is not possible and must be specified when ordering.

5.4 Alarm relay does not operate

Confirm whether the alarm threshold is set reasonably (such as setting the threshold to 500ppm and the current reading to 300ppm).

Check if the dry contact wiring of the relay is correct (COM/NO/NC).

Measure whether there is voltage at both ends of the relay coil (driven internally by the controller).

5.5 Historical data upload failure (HOST software)

Check if the PC serial ports (COM1 – COM4) are occupied by other programs.

Confirm that the baud rate is consistent (supports 1200/2400/4800/9600).

If using a modem, check the phone number, dialing prefix, and modem initialization string.

Calibration and maintenance recommendations

6.1 Recommended attachments

H200i electronic calibrator: used for on-site verification and calibration of 201Ti electronic circuits, it is recommended to equip at least one at each station.

H201-TW pipe wrench: a specialized tool used for correctly installing sensors to avoid damaging the diaphragm.

6.2 Calibration cycle

It is recommended to perform full-scale calibration every 12-18 months.

If the deviation between gas reading and laboratory oil chromatography analysis exceeds ± 15%, calibration should be carried out immediately.

6.3 Software Upgrade

Through Hydran HOST, the 201Ti embedded firmware can be remotely upgraded without disassembling the device, greatly reducing maintenance costs.
