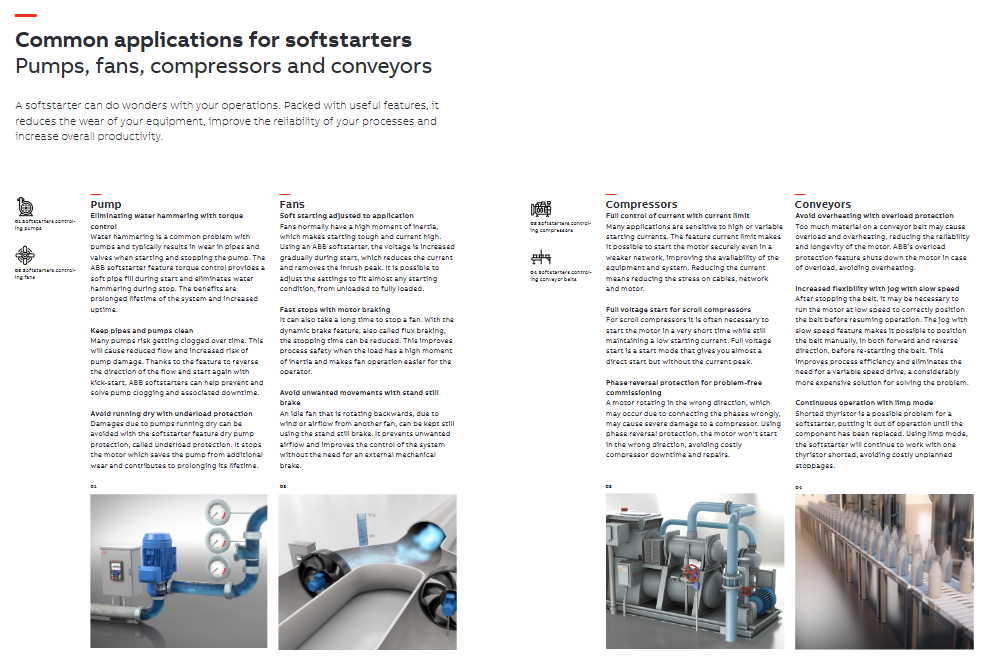

In modern industry, electric motors consume nearly one-third of the world's electricity generation. Whether it is a water pump, fan, compressor or conveyor, its reliable start-up and smooth operation directly determine the continuity and equipment life of the production line. The ABB soft starter family - covering compact PSR, scroll compressor specific PSRC, high-efficiency pump controlled PSE, and versatile advanced PSTX - provides a complete solution for different loads from 3 A to 1250 A (with an internal delta connection of up to 2160 A).

However, complex on-site environments, power grid fluctuations, parameter errors, or component aging can all lead to abnormal operation of soft starters. This article is based on ABB's official technical specifications and typical application scenarios, systematically sorting out the most common fault phenomena in the installation, debugging, and operation of soft starters, and providing highly operational troubleshooting processes and maintenance suggestions to help engineers locate problems and restore production in the shortest possible time.

Overview of ABB Soft Starter Series

Before delving into troubleshooting, it is necessary to have a clear understanding of the core features and applicable scenarios of each series. This is crucial for fault diagnosis.

1.1 PSR - Compact Foundation Series

Current range: 3 A... 105 A

Main voltage: 208... 600 V AC

Control features: two-phase control, built-in bypass, voltage ramp soft start stop

Setting method: Three potentiometers (start time, stop time, initial voltage)

Protection method: relying on external manual motor starter (MMS) to achieve overload and short circuit protection

Applicable loads: small fans, pumps, conveyors, up to 100 starts per hour

1.2 PSRC - Vortex Compressor Special Type

Based on PSR hardware, but with fixed factory parameters of<1 second start-up time and 50% initial voltage, it meets the fast lubrication requirements of vortex compressors.

The environmental tolerance temperature reaches+60 ℃, and the parameter is "tamper proof", suitable for OEM batch matching.

1.3 PSE - Efficient Pump Control Series

Current range: 18 A... 370 A

Core functions: Voltage ramp and torque control (start stop), current limiting, underload protection (anti dry running), locked rotor protection

Display: Iconic backlit display screen, language neutral

Communication: Built in Modbus RTU, optional fieldbus plug

Applicable loads: water pump (with a focus on eliminating water hammer), fan, compressor

1.4 PSTX - Advanced Versatile Series

Current range: 30 A... 1250 A (2160 A below the inner triangle)

Main voltage: 208... 690 V AC

Control modes: voltage ramp, torque control, current limiting (standard/dual level/ramp), jog (forward/reverse), dynamic braking, static holding braking

Protection function: Complete motor protection (overload, underload, locked rotor, phase sequence, ground fault, PT100 input, overvoltage/undervoltage, etc.)

Human computer interface: detachable IP66 keyboard, graphical display in 17 languages, built-in assistant guide

Communication: Built in Modbus RTU, full range of mainstream fieldbus adapters (Profibus, DeviceNet, EtherNet/IP, Profinet, Modbus TCP, BACnet, EtherCAT, etc.)

Understanding the above differences can help quickly determine at the beginning of a malfunction whether it is due to improper selection, parameter adaptation issues, or hardware damage.

Common fault phenomena and troubleshooting steps

2.1 Motor cannot start - Soft starter has no response

Possible reasons and troubleshooting sequence:

Control power supply is missing

Check the voltage of terminal Us: PSR/PSE/PSTX control power supply range is 100... 250 V AC (PSR also has a 24 V AC/DC version).

Use a multimeter to measure whether the voltage between L1/N or L/N is within ± 10% of the rated value.

Start signal not received

PSE/PSTX is controlled through digital inputs (Start/Stop) and provides an internal 24V DC source.

Short circuit the Start terminal to the common terminal and observe if the "Run" LED on the display screen flashes. If it does not flash, check the wiring and input configuration (whether it is programmed for remote/local locking).

Fault relay action

When the PSTX fault LED (red) lights up, it needs to be reset first. Reset method: Press the stop button for more than 2 seconds, or reset through numerical input.

PSR has no fault display, but its built-in bypass relay does not engage and can measure the output voltage of the main circuit (there should be a gradually increasing voltage when starting).

Bypass contactor not engaged (for PSTX/PSE)

The built-in bypass closes when the motor reaches full speed. If it still does not close, check if the "Top of Ramp" signal relay is set correctly, or if the "End of Ramp Level" parameter is set higher than the actual current.

Typical case: The PSE105 conveyor in a certain mine has no response when the start button is pressed after being powered on. After investigation, it was found that the control power supply was taken from the auxiliary contact of another device, and the power was lost due to the shutdown of the device. Normal operation after independent power supply is restored.
