HONEYWELL Expert C300 Controller: The Core Engine of Process Control

In modern process industries, the stability, flexibility, and intelligence level of control systems directly affect production safety, product quality, and operational efficiency. The C300 controller in the Honeywell Expert PKS platform, as the core control unit of the system, provides solid technical support for various process control applications with its powerful processing capabilities, deterministic execution environment, and highly integrated engineering tools.

Product positioning and platform integration

The C300 controller is an important component of the Expert Process Knowledge System, responsible for key tasks such as executing control strategies, batch operations, managing I/O interfaces, and running custom programs. Its design philosophy revolves around "certainty" and "flexibility", enabling multiple control requirements such as continuous control, logical control, sequential control, model control, and batch control to be implemented on a unified hardware platform.

Through deep integration with the Expert PKS platform, the C300 controller achieves seamless data flow from on-site equipment to operational management, building an integrated automation solution.

Control Execution Environment: Certainty, Flexibility, and Scalability

1. Overview of Control Execution Environment

The C300 controller adopts Honeywell's field validated control execution environment. CEE is a high-performance real-time running engine responsible for scheduling and executing user configured control policies. It supports multiple execution cycles and can meet a wide range of application requirements from millisecond level fast scanning to second level conventional control, especially suitable for scenarios with extremely high response speed requirements such as turbine control and compressor anti surge control.

2. Function block library

CEE has a rich library of built-in functional blocks, covering the following control types:

Continuous control: PID control, ratio control, split range control, etc

Logic control: with or without logic, timer, counter, etc

Sequential control: stepper control, state machine, etc

Model Control: Model based Control Algorithm

Batch processing control: compliant with ISA S88.01 standard, supporting four levels of process models

Each functional block is embedded with predefined features such as alarm settings, algorithm selection, and maintenance statistics. Users only need to configure parameters to enable them, without the need to develop underlying logic from scratch, greatly improving engineering efficiency.

3. Control module and sequence control module

Users combine functional blocks through "soft wiring" to form control modules or sequential control modules to achieve specific control tasks. This modular design not only facilitates reuse, but also makes the organizational structure of the control strategy clearer, making it easier to maintain and expand.

Redundant architecture and high availability

1. Hardware redundancy

The C300 controller supports full redundancy configuration, and users only need to add one identical hardware module to achieve redundancy without the need for additional configuration of control strategies. When the main controller fails, the system automatically switches to the backup controller without disturbance to ensure control continuity.

2. Online migration

Under redundant deployment, CEE supports the "online migration" function, allowing software version upgrades to be completed without downtime, significantly improving system availability and maintenance convenience.

3. High reliability design

The C300 controller adopts high-density components and optimized heat dissipation structure. The vertical installation method not only saves cabinet space, but also improves heat flow distribution, reduces hotspot generation, and enhances module life and reliability.

Communication and Network Integration

1. Control the network

The C300 controller is based on Honeywell's patented fault-tolerant Ethernet technology, which has high availability and resistance to network attacks. The control firewall mechanism ensures that only data related to process control is allowed to enter the controller, effectively isolating network threats.

2. I/O network

The controller is connected to the Series C I/O and Process Manager I/O series through a dedicated redundant I/O communication network. Each controller supports two I/O networks, and I/O modules can also be configured redundantly. User applications do not need to perceive underlying changes.

3. Time synchronization

C300 supports the high-precision time protocol of IEEE 1588 standard and can directly connect to the secondary network to achieve precise time synchronization of all controllers in the system. Simultaneously supporting automatic daylight saving time adjustment without the need for manual intervention.

On site equipment integration

1. Smart device access

The C300 controller achieves transparent integration of intelligent devices such as FOUNDATION Fieldbus, HART, and Profibus through the fieldbus interface module and Profibus gateway module. The data and control blocks of on-site equipment can be seamlessly integrated with the C300 control strategy, allowing users to fully utilize the rich diagnostic information provided by intelligent devices.

2. Wireless device integration

The C300 controller supports direct integration of ISA100 wireless field devices. The parameters of wireless devices can be used for control strategies like traditional I/O, and their configuration process is consistent with conventional I/O modules or fieldbus devices, achieving integrated operation of wireless technology and control systems.

Engineering and maintenance tools

1. Control Builder

Control Builder is an engineering design and maintenance platform for C300 controllers, providing a graphical user interface and predefined functional blocks, and supporting drag and drop configuration. Control engineers can use this tool to create, modify, load, and monitor control strategies.

2. Template support

Users can create typical control strategies as templates, which remain linked to the template even after instantiation. When the template is modified, all instances can automatically inherit the changes, ensuring consistency of the application and efficient maintenance.

3. Batch construction and batch editing

Batch Build: Supports batch generation of control strategies from instrument databases, suitable for rapid creation of a large number of similar strategies in large-scale projects

Batch editing: supports offline or online batch modification of a large number of parameters through CSV files, Excel, or Access, greatly improving daily maintenance efficiency

4. Online monitoring

After the control strategy is loaded, engineers can use the online monitoring function of Control Builder to view the real-time running status, numerical updates, and discrete signal color identification of functional blocks, which facilitates strategy verification and troubleshooting.

5. Version control and compliance

Through the optional qualification certification and version control system, the C300 controller supports complete version management functionality and meets the compliance requirements of FDA 21 CFR Part 11 for electronic records and electronic signatures. QVCS provides detailed audit trails, version comparisons, and lifecycle management functions to ensure traceability and security of user configurations.

Advanced control functions

1. OperTune automatic circuit tuning

OperTune is an advanced PID loop tuning tool built into the Expert system, which supports closed-loop automatic tuning based on CEE controllers. Its interface is intuitive and algorithm robust, suitable for users at all levels to quickly optimize loop performance.

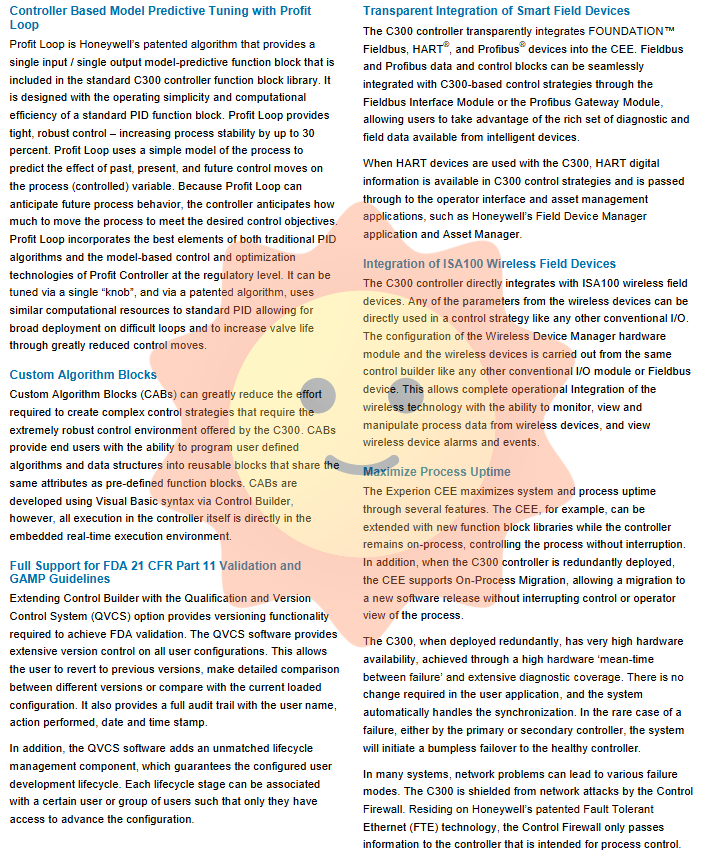

2. Profit Loop Model Predictive Control

Profit Loop is a patented algorithm from Honeywell, integrated as a standard functional block into the C300 controller library. It takes single input/single output model predictive control as its core, combining the computational efficiency of PID with the optimization ability of model control. Profit Loop can improve the process stability by up to 30% by predicting the future trend of the controlled variable and adjusting the control output in advance, while significantly reducing the number of valve actions and extending the service life of the equipment.

3. Custom Algorithm Blocks

C300 supports users to develop custom algorithm blocks in Control Builder using Visual Basic syntax. These custom blocks have the same properties as predefined functional blocks, can be directly embedded with control strategies, and executed in real-time environment of the controller, suitable for the implementation of complex control logic.

Operation interface and visualization

1. Detail display and group display

CEE supports assigning detail display templates and group display templates for each control strategy. Users can use the standard display templates provided by the system or create custom templates. Operators can directly interact with the loaded control strategy through the detail display interface, and the group display template can be used as a panel in custom graphics.

2. Chart visualization

The chart visualization function of Control Builder is embedded in every detail display, allowing operators to monitor and operate on the same interface, improving the efficiency of human-computer interaction.

Investment protection and platform compatibility

1. Platform independence

CEE, as the operating environment that carries user applications, is decoupled from the underlying hardware platform. When a new hardware platform is launched, users can upgrade while retaining their existing applications, fully protecting their existing investments.

2. Compatibility with existing I/O

The C300 controller supports integration with existing I/O series such as Honeywell Process Manager I/O, which has significant advantages among similar control systems. Meanwhile, C300 can seamlessly communicate with control nodes such as C200, C200E, and ACE, ensuring unified management and collaborative operation in heterogeneous control environments.

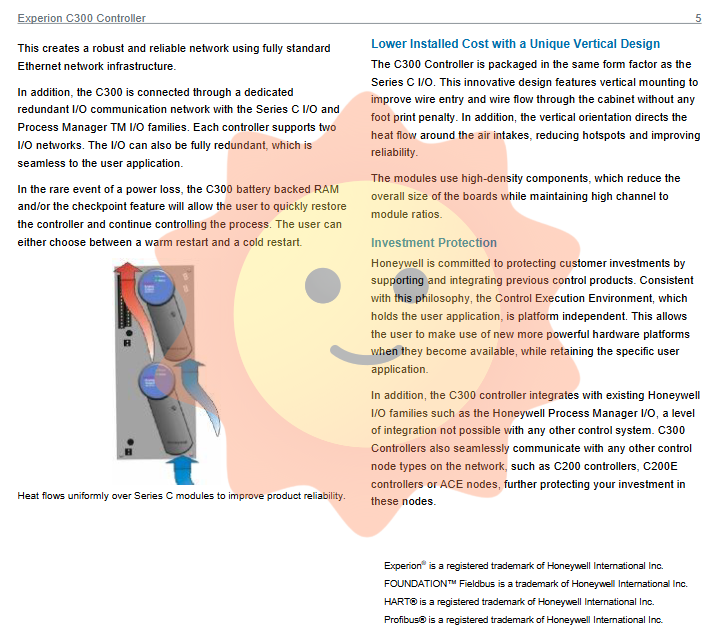

Installation and reliability design

The C300 controller adopts an innovative vertical installation design and shares the same appearance as the Series C I/O series. This design optimizes the wiring path inside the cabinet, improves airflow organization, and reduces the risk of hotspots. High density components effectively reduce the size of the circuit board and improve the overall reliability of the system while ensuring high channel density.

In extreme cases of power failure, the controller supports quick recovery through battery backup RAM or checkpoint mechanisms, and users can choose between hot or cold start modes to minimize the impact on the production process.

Summary of Application Scenarios and Value

The C300 controller is widely used in the following industrial fields:

Refining and Petrochemicals

Chemical and Fine Chemicals

Electricity and Energy

Pharmaceutical and Biotechnology

Food and Beverage

Water Treatment and Environmental Protection

Its core values are reflected in:

Deterministic control execution: CEE ensures that control tasks are completed under strict time constraints

High availability redundancy: hardware redundancy and continuity of online migration assurance process

Rich functional block library: covering multiple control types such as continuous, logical, sequential, batch processing, etc

Extensive device integration: supports Fieldbus, HART, Profibus, ISA100 wireless, etc

Powerful engineering tool: Control Builder provides efficient functions such as templates, batch building, and batch editing

Advanced control algorithms: Profit Loop and OperarTune enhance control quality and operational efficiency

Compliance support: QVCS meets FDA 21 CFR Part 11 and GAMP requirements

Investment protection: Platform independence and I/O compatibility protect users' existing assets
