In modern industrial automation systems, the human-machine interface serves as a bridge between operators and control systems, and its performance and reliability directly affect production efficiency and operational safety. The HCIX series touch screen interface is launched by Honeywell, which integrates high-resolution color display, touch interaction, powerful communication capabilities, and flexible scalability, providing an integrated human-machine interaction solution for various industrial applications.

Product Series Overview

The HCIX series covers a variety of screen sizes and configuration models to meet the needs of different application scenarios. The main models include:

HCIW04-T: 4.3-inch widescreen TFT LCD

HCIX05-T: 5.7-inch TFT LCD

HCIW07-T/HCIW07-TV: 7-inch widescreen TFT LCD

HCIX08-T/HCIW08-QE/HCIW08-QV: 8.4-inch TFT LCD

HCIX10-T/HCIW10-T/HCIW10-TV: 10.4-inch and 10.2-inch widescreen TFT LCDs

HCIX12-T: 12.1-inch TFT LCD

HCIX15-T: 15.0-inch TFT LCD

All models use analog resistive touch screens that support 65536 true color displays, ensuring clear graphical interfaces and rich colors to enhance the user experience.

Core display and touch technology

1. High brightness TFT LCD display screen

The HCIX series comes standard with a TFT color LCD display, featuring a wide viewing angle and high brightness. The brightness parameters of different models are as follows:

HCIW04-T、HCIW07-T、HCIW10-T：350 cd/m²

HCIX05-T、HCIU05-T：450 cd/m²

HCIX08-T、HCIW08-QE/QV、HCIX10-T：400 cd/m²

HCIX12-T：380 cd/m²

HCIX15-T：350 cd/m²

In terms of resolution, it ranges from 480 × 272 at 4.3 inches to 1024 × 768 at 15 inches, meeting diverse needs from simple data monitoring to complex graphical interfaces.

2. Simulated resistive touch screen

All models are equipped with analog resistive touch screens, allowing operators to directly set parameters, switch interfaces, and input data through the touch screen. Compared to traditional keyboard operations, touch screens greatly simplify the operation process and improve the efficiency of human-computer interaction. The touch resolution is consistent with the display resolution to ensure touch accuracy.

High performance hardware platform

1. 32-bit RISC processor

The HCIX series adopts a 32-bit RISC architecture processor with high-speed graphics processing capabilities, which can smoothly run complex animations, multi window interfaces, and real-time data updates, ensuring the response speed and smoothness of the operating interface.

2. Storage and Data Recording

The built-in Flash memory capacity of each model is as follows:

HCIW04-T、HCIX05-T、HCIU05-T：6 MB

Other models: 26 MB

In addition, the HCIX series supports CF card, SD card, and USB storage device expansion for easy data recording and backup. The system can record real-time data in CSV format to external storage media, and users can analyze and print it using tools such as Microsoft Excel.

3. Power supply and power consumption

The HCIX series supports multiple power input methods:

Most models use 24 Vdc (20-28 V) power supply

HCIX10-T, HCIX12-T, HCIX15-T support AC 85-264V wide voltage input

The power consumption range varies from 15 W to 25 W, suitable for different power supply conditions in industrial sites.

Environmental adaptability and protection level

1. IP65F front panel protection

All HCIX series products have front panels that meet the IP65F protection level, with excellent dust and water resistance, suitable for harsh industrial environments such as humidity and dust. After installation, the front panel can effectively resist water jets and dust intrusion, ensuring long-term stable operation of the equipment.

2. Wide temperature working ability

Working temperature range: -10 ℃ to+60 ℃ (most models)

Storage temperature range: -20 ℃ to+70 ℃

The lower limit of operating temperature for some models such as HCIX08-T and HCIW08-QV is+10 ℃, and the selection should be matched according to the actual ambient temperature.

3. Anti interference and vibration capability

The HCIX series has excellent electromagnetic compatibility, with a noise tolerance of 1000-2000 Vp-p (pulse width 1 μ s) and a vibration tolerance of 10-25 Hz (1G acceleration), suitable for complex electromagnetic environments and mechanical vibration conditions in industrial sites.

Communication and Expansion Interface

1. Standard communication interface

The HCIX series provides rich communication interfaces to meet the connection needs with various PLCs, controllers, and upper computers:

RS-232C: Used for point-to-point communication

RS-422/485: Supports long-distance multi station communication

Ethernet (10/100Base-T): Supports high-speed network connection, suitable for remote monitoring and data integration

USB Host: Used for data import and export, firmware upgrade, and peripheral connection

USB Device: Used for communication with PC, enabling program download and upload

2. Fieldbus Expansion

Some models support fieldbus expansion modules such as Profibus, DeviceNet, CC Link, etc., which facilitate seamless integration with mainstream PLC systems and meet the communication needs of large-scale automation systems.

3. Printer support

The HCIX series supports connecting printers through RS-232 or USB interfaces, and supports PCL Level 3 language for real-time printing of alarm information, production data, and reports.

Software and Design Tools

1. XDesignerPlus design software

The HCIX series comes standard with XDesignerPlus design software, which allows users to create custom graphical interfaces. The software provides rich design objects, including:

Numerical display and input

Indicator lights and message boxes

Alarm List and Historical Records

Graphic animation and sliding windows

Multi language switching (supports English, Korean, Chinese, and Windows system fonts)

These objects do not require complex register address configuration, and users can complete project development through an intuitive graphical interface, greatly improving engineering efficiency.

2. Data management function

HCIX can achieve the following data management functions through CF card, SD card or USB storage:

Real time data recording

Import and export of formula data

System configuration backup and recovery

Font and operating system updates

The data is stored in CSV format for easy data processing and analysis on the PC end.

PLC connection compatibility

The HCIX series supports direct connection with various mainstream PLC systems, covering the following brands and series:

Honeywell: GH1000/500, HC900, Master Logic series

Modicon (Schneider): Modbus, 984, TWIDO series

Rockwell (AB): PLC5, SLC500, ControlLogix series

Siemens: SIMATIC S7-300 series

BACnet, Profibus DP and other protocols support

Supports connection through CPU communication ports or dedicated communication interface modules, and supports 1: N multi station communication, making it easy to build a distributed monitoring system.

Mechanical dimensions and installation

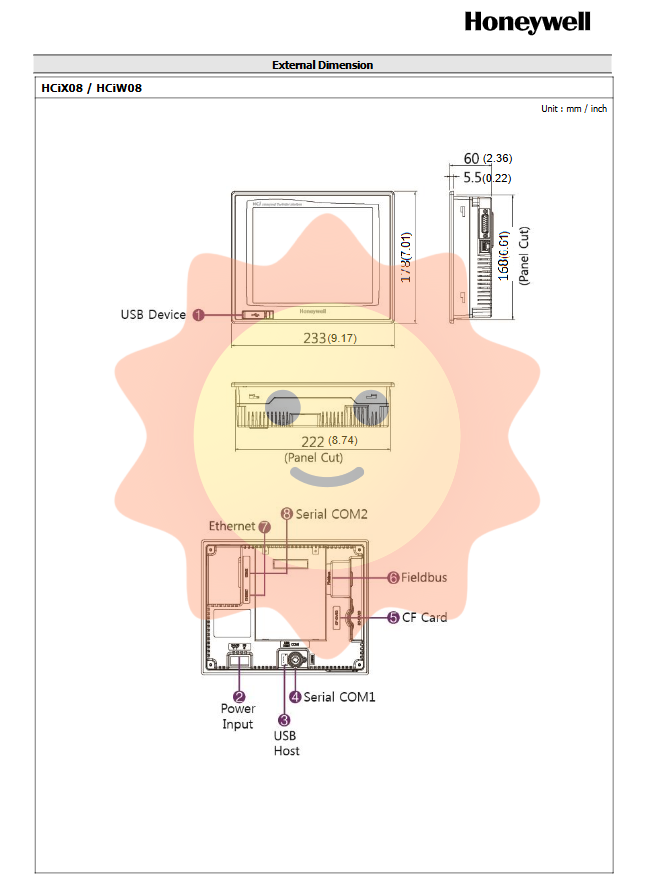

The external dimensions and panel opening dimensions of each model in the HCIX series are as follows (unit: mm/inch):

Model, external dimensions (W × H × D), panel opening (W × H), weight

HCIW04-T 170 × 138 × 60 158 × 126 0.7 kg

HCIX05-T 232 × 177 × 60 158 × 126 1.3 kg

HCIW07-T 206 × 136 × 44 199 × 129 0.9 kg

HCIX08-T 232 × 177 × 60 222 × 168 1.3 kg

HCIX10-T 305 × 239 × 58 295 × 229 2.3 kg

HCIW10-T 270 × 212 × 58 258 × 200 1.9 kg

HCIX12-T 316 × 257 × 58 307 × 247 2.5 kg

HCIX15-T 366 × 296.5 × 58 355 × 286 3.2 kg

The equipment adopts a panel installation method, with a front buckle fixed for easy installation, suitable for control cabinets and operation consoles.

Model code and selection guidance

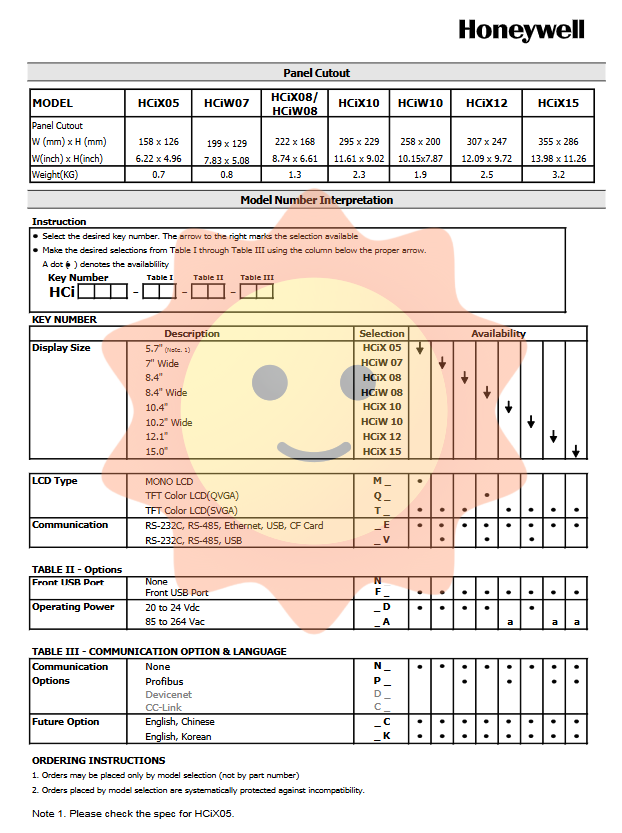

The HCIX series models adopt a structured coding method, and users can choose based on the following dimensions:

Display size: 4.3 ", 5.7", 7 ", 8.4", 10.2 ", 10.4", 12.1 ", 15.0"

LCD type: monochrome (M) or TFT color (Q)

Communication configuration: Standard (T) or Compact (V)

Power type: 24 Vdc (D) or 85-264 Vac (A)

Communication options: Profibus, DeviceNet, CC Link, etc

When selecting, attention should be paid to the differences in Flash capacity, communication interfaces, expansion slots, and other aspects among different models to ensure that they meet practical application requirements.

Quality Assurance and Technical Support

Honeywell provides quality assurance for material and process defects in its HCIX series products. Users can obtain warranty information through their local sales office. During the warranty period, products confirmed to have quality issues will receive free repair or replacement.

Honeywell provides comprehensive technical support services, including product selection, application consulting, technical document downloads, and software updates. Users can obtain the latest product information and design tools through the official website.

Summary of Application Scenarios and Value

The HCIX series touch screen interface is widely used in the following industrial fields:

Factory automation production line

Process Control and Monitoring System

Device level operating terminal

Building Automation and Energy Management

Environmental Monitoring and Data Collection System

Its core values are reflected in:

Diversified size options: covering 4.3 inches to 15 inches, suitable for different installation spaces and visual needs

High performance graphics processing: 32-bit RISC processor ensures smooth interface and complex graphics display

Powerful communication capability: supports multiple interfaces such as RS-232C/422/485, Ethernet, Profibus, etc

Convenient data management: Supports CF/SD card and USB storage for easy data recording and backup

Industrial grade reliability: IP65 protection, wide temperature operation, anti-interference design, suitable for harsh environments

Easy to use design software: XDesignerPlus provides a graphical development environment to shorten the engineering cycle

Wide PLC compatibility: Supports mainstream brand PLCs, easy integration
