Product positioning and core highlights

（1） Basic positioning

HT2150 and QT2150 are entry-level fanless panel industrial control computers (Panel IPC) launched by ASEM, based on Intel ®  Bay Trail ™  The system on chip (SoC) platform, which focuses on high cost performance, is suitable for industrial automation, human-computer interaction (HMI), edge computing and other scenarios, especially for industrial environments that require equipment volume, heat dissipation and stability.

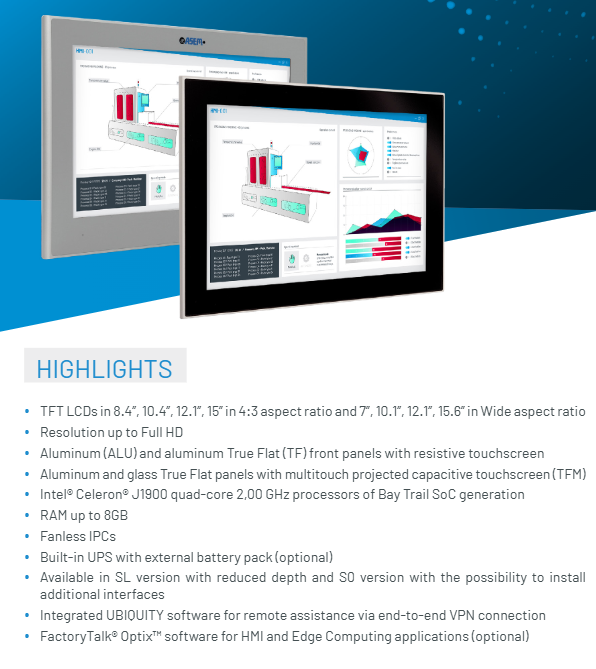

（2） Core Highlights

Fanless design: adopting passive heat dissipation to avoid equipment shutdown caused by fan failure, adapting to a wide working temperature range of 0 ° C~50 ° C, and improving reliability in industrial scenarios.

Flexible display and touch configuration: covering multiple sizes and ratios of LED backlit TFT LCD screens, supporting resistive and capacitive touch to meet different operational needs.

High performance hardware foundation: equipped with Intel ®  Celeron ®  J1900 quad core processor with expandable memory up to 8GB, combined with rich storage interfaces, balancing computing and data storage capabilities.

Multi version and scalability: Provides "SL Short Depth Edition" (more compact in size) and "S0 Expansion Edition" (supporting the installation of additional interface boards) to adapt to different installation spaces and functional requirements.

Industrial grade protection and power supply: The front protection level reaches IP66, supports 24VDC isolated power input, and optional integrated UPS (requires external battery pack) to ensure stable operation of equipment in complex industrial environments.

Software and Remote Support: Pre installed UBIQUITY remote assistance software (remote access through end-to-end VPN), optional FactoryTalk ®  Optix ™  The software is used for HMI and edge computing applications and supports 32/64 bit operating systems.

Hardware specifications and configuration

（1） Core hardware parameters

Specific configuration of hardware category

Intel processor ®  Celeron ®  J1900 quad core processor, base frequency 2.0GHz, supports 64 bit operations, 2MB L2 cache (onboard soldering, non replaceable)

Graphics card integrated with Intel ®  HD Graphics， Core frequency 688MHz (Turbo mode 854MHz), supports LVDS 8-bit/color digital interface

1 DDR3 SODIMM slot for RAM, supporting 1GB/2GB/4GB/8GB memory expansion

Storage interface -1 SATA II standard CFast slot (rear external access, supports booting)

-1 onboard mSATA connector (supporting SATA II SSD for extended storage)

Network interface 2 Gigabit Ethernet ports (RJ45, Intel) ®  I210 chip), supporting "Jumbo Frame" and "Wake on Lan" functions

USB interface - rear: 1 USB 3.0 (Type-A), 1 USB 2.0 (Type-A)

-Front end (QT2150 only): 1 USB 2.0 (Type-A, with protection)

Power input 24VDC isolated power supply (input range 18~32VDC), optional UPS kit (requires external battery pack), supports ATX mode power supply

（2） Display and Touch Configuration

HT2150 and QT2150 provide differentiated options for display and touch, covering different sizes, proportions, and touch types, as shown in the table below:

Product series Screen size and resolution Screen ratio Touch type Front panel material

HT2150-4:3 ratio: 6.5 "(640x480), 8.4" (800x600), 10.4 "(800x600), 12.1" (800x600/1024x768), 15 "(1024x768)

-Wide Screen (W): 7 "(800x480), 10.1" (1280x800), 12.1 "(1280x800), 15.6" (1366x768) 4:3/Wide Screen 5-Wire Resistive (HT2150), Projection Capacitive Multi Touch (HT2150-TFM) Aluminum Alloy (ALU), Aluminum Alloy Flat (TF), Aluminum Alloy+Glass Flat (TFM)

QT2150- Wide Screen (W): 7 "(800x480), 10.1" (1280x800), 12.1 "(1280x800), 15.6" (1366x768)

-4:3 ratio: 15 "(1024x768, no TFM version) 4:3/widescreen 5-wire resistive (QT2150), projected capacitive multi touch (QT2150-TFM), aluminum alloy flat (TF), aluminum alloy+glass flat (TFM, narrow bezel design)

All screens are 16 million color LED backlit TFT LCD, with a front protection level of IP66-

（3） Extension interface (only supported in S0 version)

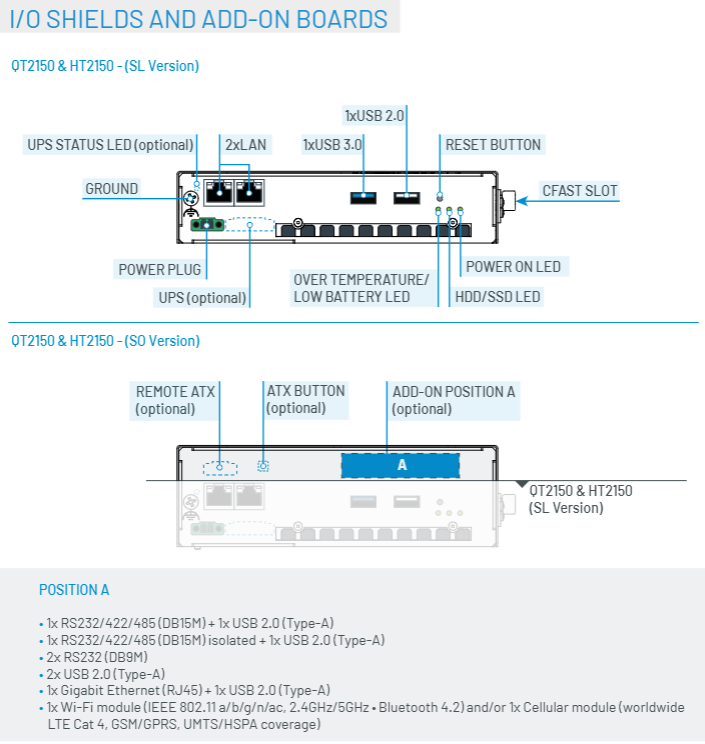

The S0 version reserves one expansion interface position (Position A), which can be equipped with various additional boards to meet personalized functional requirements. Optional expansion modules include:

Communication: 1 RS232/422/485 (DB15M)+1 USB 2.0; 1 isolated RS232/422/485 (DB15M)+1 USB 2.0; 2 RS232 (DB9M).

USB extension: 1/2 USB 2.0 (Type-A).

Network Expansion: 1 Gigabit Ethernet port (RJ45, Intel) ®  I210)+1 USB 2.0.

Fieldbus Expansion: 1 NETcore X board (supporting EtherCAT, EtherNet IP, PROFINET, PROFIBUS, CANopen protocols).

Wireless extension: 1 wireless/Bluetooth/modem adapter.

Product version differences

Both HT2150 and QT2150 are available in SL and S0 versions, with the core difference being their volume and expandability

Version Type Core Features Applicable Scenarios

The SL short depth version has smaller depth dimensions, compact structure, limited installation space without expansion interface, and does not require additional expansion functions in scenarios such as small control cabinets and compact production lines
