Lam Research Harmonic Drive Arm Quick Replacement and Repair Complete Guide

Introduction: When the precision of wafer handling decreases, your harmonic drive components should be replaced

In semiconductor manufacturing, the accuracy and reliability of wafer handling robots directly determine equipment capacity and yield. Lam Research's Rainbow series etching/deposition platform widely uses Harmonic Arm Drive Assembly to achieve high-speed and high repeatability wafer transfer. However, as the operating years of the equipment increase, components such as harmonic drive cores, bearings, belts, seals, etc. may experience fatigue wear, leading to serious problems such as wafer misalignment, vibration, and even chip dropping.

Faced with the dilemma of factory shutdowns or long lead times, semiconductor engineers urgently need a fast, reliable, and cost controllable solution. This article is based on the Lam Research harmonic drive component quick replacement and maintenance service provided by SemiGroup, providing you with a detailed technical guide from fault diagnosis, replacement options, maintenance process, testing and verification to spare parts management. Whether you are an equipment maintenance engineer or a factory management personnel, this article will help you restore equipment performance in the shortest possible time.

Lam Research Harmonic Drive Arm Components: Core Functions and Common Faults

1.1 The role of harmonic drive in wafer handling

Harmonic Drive is a precision transmission device that utilizes flexible gear elastic deformation to achieve high reduction ratio, zero backlash, and high torque density. On Lam Research's Rainbow independent platform, the harmonic drive arm component is responsible for controlling the rotational joints of the robotic arm, achieving precise positioning of the wafer between the process chamber, loading port, and buffer area.

The key features of this component include:

High repeatability accuracy: ± 0.01 mm level, ensuring wafer center alignment.

No backlash: an inherent characteristic of harmonic drive, eliminating positioning errors caused by reverse backlash.

Compact structure: Integrated motor, reducer, encoder, and wiring harness.

1.2 Common Failure Modes and Diagnostic Methods

As the running time exceeds 20000 to 30000 hours, the following faults will gradually appear:

Possible causes of fault phenomena and diagnostic methods

Wafer placement position offset (X/Y direction) harmonic core flexible gear fatigue, bearing wear operation self-test program, comparing historical position data

Abnormal vibration or noise during the movement of the robotic arm, belt looseness or tooth wear, excessive bearing clearance, manual rotation of the joint, and feeling whether the resistance is uniform

Wafer drop, edge harmonic core fracture, or Quad Seal leakage leading to lubrication failure. Check for abnormal increase in chamber particle counter

Motor out of step or overcurrent alarm. Stepper motor aging, poor wire harness contact, connector oxidation. Measure winding resistance and check connector pins

The sensor signal is unstable, and the optocoupler or magnetic sensor is dirty or aging. Check the output waveform of the sensor with an oscilloscope

Rule of thumb: If your Rainbow device has been running continuously for more than 5 years without replacing harmonic drive components, it is recommended to proactively carry out preventive replacement to avoid unplanned downtime.

Quick change option: Minimize downtime to the greatest extent possible

SemiGroup provides a Quick Exchange solution for Lam Research harmonic drive components. Unlike traditional repair waiting for months, this solution allows users to purchase refurbished and tested components in advance, replace faulty parts directly upon receiving new ones, and then return the old ones. The entire replacement process can be controlled within 4-8 hours, significantly reducing equipment downtime.

2.1 Applicable conditions for quick replacement

Your device has been confirmed to have a harmonic drive component fault (as diagnosed above).

Mechanical arm disassembly/installation tools and calibration procedures are available on site.

Be able to comply with electrostatic discharge (ESD) protection regulations.

2.2 Quick replacement process

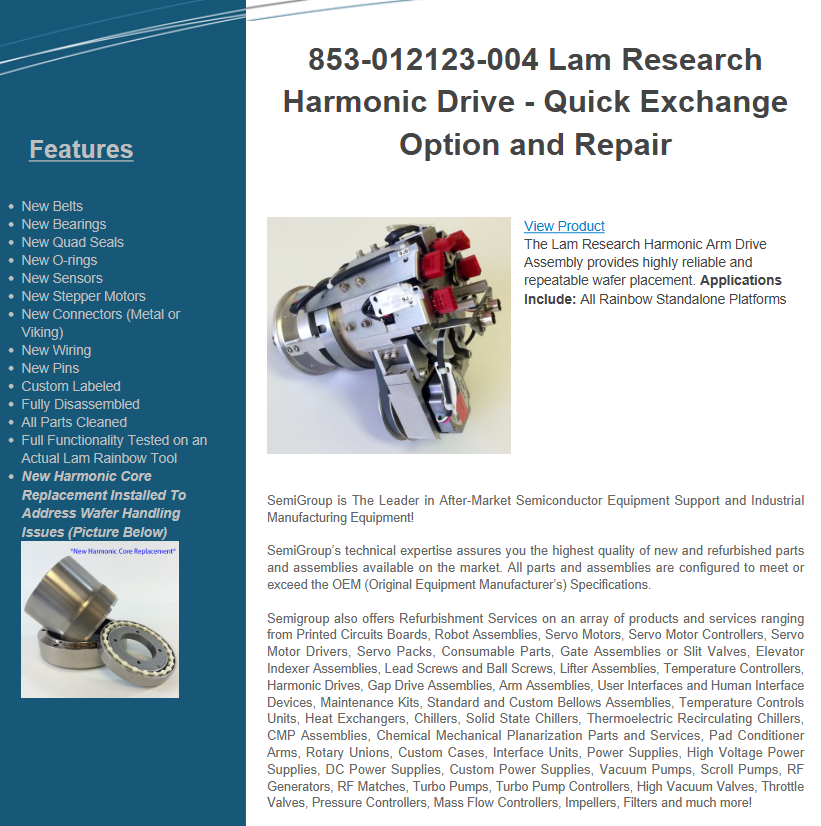

Contact SemiGroup: Provide Lam Research part number (e.g. 853-012123-004) and equipment serial number.

Obtain quotation and inventory confirmation: Confirm that the quick replacement components are in stock and obtain an RMA (Return Merchandise Authorization) number.

Order purchase: Pay for quick replacement fee (including refurbished components and return of old parts deposit).

Receive replacement components: usually arrive within 1-3 working days (depending on location).

On site replacement: Disassemble the faulty components according to the Lam maintenance manual and install refurbished components.

Functional testing: Perform device self-test and wafer transfer testing.

Return of old parts: Pack and return the old components to SemiGroup within 30 days, and refund the deposit.

2.3 Quality assurance for quick replacement parts

All quick replacement components undergo the following processing (see next section for details) and provide the same or better performance guarantee as the new product, usually with a 1-year warranty.

Comprehensive maintenance service content: every step from disassembly to testing

If your device is not in a hurry to be replaced immediately, or if you wish to refurbish old parts as spare parts, SemiGroup provides complete repair services. The following are the technical details of each process:

3.1 Fully Disassembled

The maintenance process first completely decomposes the harmonic drive components into individual parts, including:

Harmonic core (flexible spline, rigid spline, wave generator)

Motor stator and rotor

Bearing seat and ball bearing

Belt pulley and transmission belt

Sensor bracket and sensing plate

Wiring harness and connectors

Seals (O-ring, four axis seal)

The purpose of complete disassembly is to thoroughly inspect the wear level of each component and avoid missing hidden faults.

3.2 Cleaning (All Parts Cleaned)

All metal and non-metal components are cleaned separately using ultrasonic cleaning or specialized solvents to remove:

Aging lubricating grease

Micro sized particulate pollutants

Oxide and corrosion products

Residual process gas by-products (such as corrosive substances such as Cl ₂, NF ∝, etc.)

After cleaning, the parts are dried in a dust-free environment and the surface cleanliness is checked using a microscope.

3.3 Replacement of key worn parts

According to the specifications of the original equipment manufacturer (OEM), the following components must be replaced during maintenance (regardless of their appearance):

3.3.1 New Belts

Harmonic drive arms typically use timing belts to transmit motor power to harmonic reducers. Long term operation can cause belt stretching, tooth wear, or cracking. Replacing the belt with a new one can eliminate transmission errors and slippage.

3.3.2 New Bearings

Joint bearings bear radial and axial loads. The worn bearings will produce gaps, causing the end effector to shake. Replace all ball bearings and needle roller bearings during maintenance, and refill with specialized lubricating grease.

3.3.3 New Quad Seals

Four axis seal is an elastic seal with a four lip structure, used to prevent grease leakage and external pollutants from entering the harmonic core. Aging Quad Seal will harden and crack, causing grease loss and accelerating gear wear.

3.3.4 New O-rings

All O-rings on the flange and joint surfaces have been replaced to ensure airtightness and IP protection level after installation.

3.3.5 New Sensors

Sensors used for position feedback and limiting, such as reed switches and photoelectric sensors, may drift or respond slowly over time. Replace with a brand new original specification sensor during maintenance.

3.3.6 New Stepper Motors

Long term operation of stepper motors in high temperature and vacuum environments may lead to aging of winding insulation, demagnetization of magnetic steel, or bearing wear. Replacing the motor can restore torque and step accuracy.

3.3.7 New connector (metal or Viking type)

Oxidation of connector pins or loosening of the housing can cause signal interruption. According to the original design, replace with metal connectors or Viking brand connectors to improve the resistance to plugging and unplugging and corrosion.

3.3.8 New Wiring

The internal wiring harness (power, signal, encoder wires) may be repeatedly bent during movement, resulting in broken cores or insulation damage. Replace all cables with high flexibility and bending resistance.

3.3.9 New Pins

If the coating on the contact pins inside the connector is worn, it will cause an increase in contact resistance. Replace all pins during maintenance and re crimp.

3.3.10 New Harmonic Core Replacement

This is the core step in solving wafer handling problems. After millions of elastic deformations, fatigue cracks in the flexible spline in the harmonic core can lead to a decrease in transmission stiffness and an increase in clearance. Replace the harmonic core components (wave generator, flexible spline, rigid spline) with brand new ones during maintenance to restore the zero backlash transmission characteristics.

3.4 Custom Labeled

After the repair is completed, SemiGroup will attach customized labels to the components, including:

Repair Date

Part number (original factory and internal number)

serial number

Barcode/QR code

Quality inspection qualification mark

This facilitates equipment engineers to track maintenance history and manage spare parts inventory.

3.5 Full Functionality Test on an Actual Lam Rainbow Tool

This is the biggest highlight of SemiGroup's repair services - all refurbished harmonic drive components will be installed on real Lam Rainbow process tools for full functional testing, rather than just idling on a simulation table. The testing content includes:

Accuracy verification: Measure the center offset of the wafer at multiple placement positions with a repeatability of ≤± 0.02 mm.

Speed test: Run at rated speed, monitor motor current and position error.

Load testing: Carry actual wafers (or equivalent quality) to verify torque output.

Sealing test: Check for no leakage of harmonic core lubricating grease.

Sensor calibration: Verify all limit and origin signals.

Vibration analysis: Use an accelerometer to measure the vibration spectrum of each joint to ensure that there are no abnormal frequencies.

Only components that have passed all tests will be released for shipment.

Why choose to renovate instead of purchasing new parts?

Comparison item: Original factory new parts, SemiGroup refurbished parts

The high price (usually thousands to tens of thousands of dollars) is about 40% to 60% of the cost of new parts

Delivery time: The original factory may stop production or require 8-12 weeks for quick replacement, 2-3 days for repair, and 4-6 weeks for maintenance

Replace all worn parts with new quality, pass functional testing, equivalent to or better than new parts

Warranty for 1 year 1 year

Environmentally friendly waste of old parts leads to waste and recycling, reducing electronic waste

For fab factories whose equipment lifespan has passed the mid-term, refurbishment and maintenance are the most cost-effective choices.

Refurbishment services for other semiconductor equipment

In addition to Lam Research harmonic drive components, SemiGroup also offers a wide range of semiconductor equipment refurbishment services, including:

5.1 Electrical and Electronic Components

Printed Circuit Board (PCB)

Servo motor and servo driver/controller/servo package

DC power supply, high-voltage power supply, customized power supply

Temperature Controller

User Interface and HMI

5.2 Mechanical Components

Robot Assemblies

Gate assemblies/slit valves

Elevator Indexer Assemblies

Lead screws and ball screws

Lifter assemblies

Gap Drive Assemblies

Arm assemblies

5.3 Vacuum and Fluid Components

Vacuum pump, vortex pump, turbo molecular pump and controller

High vacuum valve, throttle valve, pressure controller

Mass Flow Controller (MFC)

Standard and customized corrugated pipe components

Rotary Unions

5.4 Process consumables and heat exchange

Temperature control unit, heat exchanger, chiller, solid-state chiller, thermoelectric circulating chiller

CMP components, Pad Conditioner Arms

Impeller, filter

5.5 RF and Power Supply

RF generator, RF matching device

High voltage power supply

SemiGroup's technical team can provide complete disassembly, cleaning, replacement of worn parts, and functional testing services to the same standards as harmonic drive components for the above-mentioned products.

How to order quick replacement or repair services

6.1 Required Information

Equipment models (such as Lam Rainbow 2300, 2300EX, etc.)

The part number of the harmonic drive component (usually printed on the component label, such as 853-012123-004)

Fault description (position deviation, abnormal noise, alarm codes, etc.)

Expected service type: Quick replacement (in stock) or repair (out of stock)

6.2 Precautions for returning old parts

Put the old parts into the accompanying anti-static bag and shockproof packaging.

Attach RMA label and brief fault description.

Clean visible external pollutants, but do not disassemble them by yourself.

Return within 30 days to avoid deposit deduction.

6.3 Contact Information

Official website: www.semigroup.com

You can submit service requests or obtain quotes through the website.

Spare parts management and preventive replacement recommendations

To avoid prolonged downtime caused by harmonic drive faults, it is recommended that fab factories adopt the following strategies:

Establish spare parts inventory: reserve at least one quick replacement part as a cold spare. After using spare parts, immediately send the faulty parts for repair and replenish inventory.

Preventive replacement cycle: Based on the operating intensity of the equipment, the harmonic core should be replaced preventively every 2-3 years or 20000 hours.

Status monitoring: Utilize the device's built-in vibration sensor or regularly manually measure the repeatability accuracy of the end effector. Once it exceeds the specification (such as ± 0.05 mm), arrange for immediate replacement.

Maintenance contract: Sign a long-term maintenance agreement with SemiGroup and enjoy priority processing and fixed discounts.
