LZS-A1000-3 Switching Power Supply: Complete Guide to Replacement, Selection, Installation, Debugging, and Troubleshooting

Introduction: When your LZS series power supply needs to be upgraded or replaced

In industrial automation, process control, power systems, and communication equipment, switching power supplies are the core components that provide stable DC voltage. As equipment ages or ceases production, engineers often face the challenge of replacing old models of power modules. For example, the LZS series power supply has a long history of application in the market. When old models (such as LZS-1000-3) are discontinued or have insufficient performance, how to correctly select, install, and configure their upgraded model LZS-A1000-3 has become an urgent technical knowledge needed by many maintenance and design personnel.

This article is based on the official technical manual of LZS-A1000-3 power supply, providing a detailed practical guide from multiple dimensions such as replacement selection, specification comparison, installation safety, remote control, parallel/series configuration, and troubleshooting. Whether you need to replace a faulty power supply or select a new project, this article will help you quickly grasp the core technical points of LZS-A1000-3.

Overview of LZS-A1000-3: Key Differences from Old Models

LZS-A1000-3 is a single-phase AC-DC switching power supply with an output of 24 V DC (adjustable range 18-29.4 V), a rated output current of 42 A (at 60 ° C ambient temperature), and a maximum output power of 1008 W. It is designed for industrial environments and has a wide input voltage range (85-265 V AC, 47-440 Hz), high efficiency (typical 83% @ 110 V AC), active power factor correction (0.99 typical value), and rich remote monitoring and control functions.

Important note: According to the manual, LZS-A1000-3 is not backward compatible with the old model LZS-1000-3. This means that when directly replacing mechanical or electrical components, careful verification of installation dimensions, terminal definitions, and control interfaces is required. In the replacement project, it is necessary to refer to this guide for adaptation.

Key specification verification before replacement selection

Before deciding to replace the old power supply with LZS-A1000-3, please check the following parameters item by item:

2.1 Input specifications

Voltage range: 85-265 V AC (47-440 Hz) or 100-380 V DC.

Attention: Safety certification (UL/CSA/IEC) is only valid at 47-63 Hz; DC input has no security authentication. The minimum voltage for DC startup is 110 V DC, which can be as low as 65 V DC after startup. However, Lambda does not recommend running below 100 V DC for more than one minute as it may cause damage.

Input current: 30 A (110 V AC), 40 A (220 V AC). Ensure that the front-end circuit breaker and wire specifications meet the requirements.

Surge current: Complies with EN61000-3-2, without excessive startup surge.

Input protection: Built in fuse (user non replaceable), input surge protection is 1 kV differential/2 kV common mode.

2.2 Output specifications

Rated output: 24 V DC/42 A (1008 W) @ 60 ° C; derated to 25.2 A (605 W) at 70 ° C. Derating curve: 100% full load from -30 ° C to 60 ° C, linear derating to 60% (4%/° C) from 60 ° C to 70 ° C. For applications between 47-440 Hz, 100% full load can be achieved from -30 ° C to 55 ° C, with a 60% derating from 55 ° C to 65 ° C.

Adjustment range: 18-29.4 V (adjustable through a multi turn potentiometer).

Ripple and noise: ≤ 75 mVp-p (20 MHz bandwidth).

Load/linear adjustment rate: ± 0.1%.

Transient response: When there is a 25% step load change, the recovery time is less than 1.25 ms, and overshoot/undershoot is ± 1%.

2.3 Environment and Machinery

Working temperature: -30 ° C to+70 ° C (derating required).

Storage temperature: -40 ° C to+85 ° C.

Size: 5.62 inches high x 4.75 inches wide x 10.5 inches long (approximately 142.7 x 120.7 x 266.7 mm).

Weight: 8.1 pounds (approximately 3.67 kg).

Installation: Single sided installation, use M4 screws, screw in depth should not exceed 1/4 "(6.35 mm) to avoid damaging internal components.

Cooling: Built in variable speed ball bearing fan.

2.4 Protection Function

Overvoltage protection (OVP): adjustable range 20-34 V, factory set 31.0 V.

Overcurrent protection: The factory setting is 110% to 130% of the rated current.

Overheating protection: self resetting thermostat.

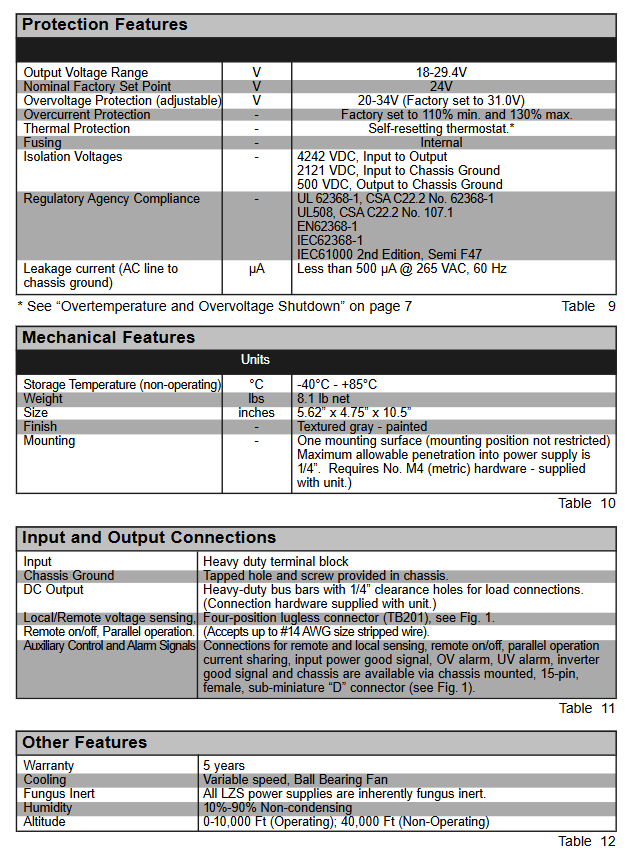

Isolation voltage: Input to output 4242 V DC; Input 2121 V DC to the casing; Output 500 V DC to the casing.

If the parameters of the old power supply fall within the above range, LZS-A1000-3 can be used as a substitute. Otherwise, additional adaptation is required.

Installation and wiring: Ensure safety and reliability

3.1 Safety precautions (directly taken from the manual)

Installation by professionals only: It must be operated by qualified personnel familiar with the hazards of AC power supply equipment.

Reliable grounding: grounded through the PE terminal (IEC 60417-1 symbol 5019) on the front panel, in compliance with local electrical regulations.

Input wire: Use copper stranded wire, 12-14 AWG, temperature resistant to 105 ° C. All wire strands must be securely fixed in the terminal block to avoid short circuits. The tightening torque is 9 in lb (approximately 1.02 N · m).
