OMRON G3PW Power Controller: A Comprehensive Technical Guide from Core Functions to Advanced Troubleshooting

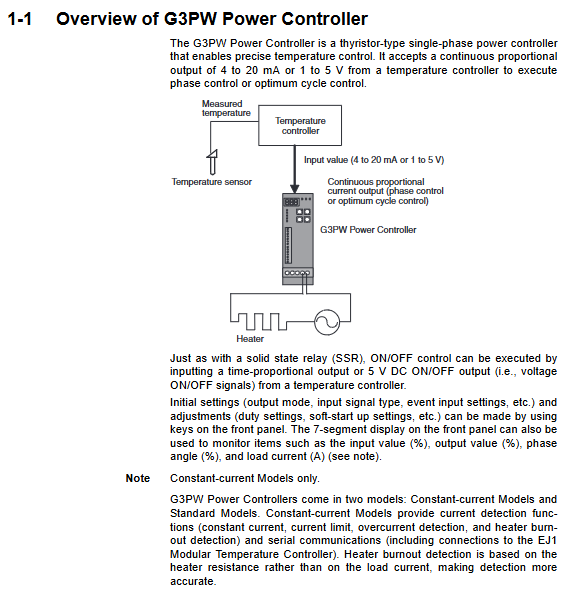

In modern industrial heating applications, precise temperature control and reliable power regulation are key to ensuring product quality and production safety. Omron's G3PW series single-phase power controller, as a power regulation device based on thyristor technology, provides engineers with a powerful and flexible tool. However, to fully tap into its potential and ensure long-term stable operation of the system, it is crucial to have a deep understanding of its core functions, parameter logic, and fault handling strategies. This article will provide you with a detailed technical guide on the G3PW power controller, covering various aspects from basic functional configuration to complex troubleshooting.

Core Control Technology and Selection Logic

The G3PW power controller is not a simple "solid-state relay", it has multiple advanced control algorithms built-in. Understanding and selecting the correct control method is the first step in using this device.

1. Phase control vs. optimal period control

G3PW allows users to choose between two main control modes, and even dynamically switch during operation through external event inputs.

Phase control: Control load power by changing the conduction angle during each half cycle of alternating current. The output of this method is continuous and can achieve very smooth power regulation, especially suitable for situations that require precise temperature control or loads with large surge currents (such as transformer primary control, pure metal heaters). But the cost is the possibility of generating high frequency noise.

Optimal cycle control: Control the ratio of output conduction and shutdown based on the half wave of AC power. It switches at the zero crossing of the voltage, so the switching noise is extremely low, which helps to extend the lifespan of the equipment and reduce interference with the power grid. This method is suitable for resistive loads that are sensitive to noise and have high temperature inertia.

Technical Tip: For inductive loads (such as transformers), phase control must be used. For constant resistance loads, optimal cycle control is a better choice when pursuing a quiet environment or simplifying EMC design. You can use parameter P07 to set the default control mode, or configure the event input terminal as a toggle switch through P11, and choose flexibly according to the working conditions.

2. Selection of standard and constant current types

The G3PW product line is divided into two series: standard type and constant current type. The core of distinguishing them lies in their ability to manage load current.

Standard type: suitable for conventional resistive loads. The relationship between its output and input signal can be linear phase angle, linear voltage, or square voltage (approximate power). For most heating applications, the standard model is sufficient.

Constant current: This is the advanced version of G3PW. It is equipped with a CT (current transformer) that can monitor the load current in real time. Its core advantages lie in:

Constant current control: For materials with significant temperature changes in resistance (such as pure metal heaters like molybdenum, tungsten, platinum, etc.) or heating elements that age over time, constant current mode can ensure that the input signal is proportional to the load current, thereby stabilizing the heating power and overcoming the effects of resistance changes.

Current limit: Set an upper limit value through parameter P10. When the current exceeds this value, the controller will automatically reduce the conduction angle to limit the current. This is crucial for protecting heaters that are susceptible to surge impacts, especially those with extremely low cold resistance.

Accurate heater wire breakage detection: Traditional methods detect changes in current, but are easily affected by changes in output values. The constant current G3PW determines wire breakage based on changes in heater resistance, providing more accurate and reliable alarms even when the output value changes.

Deep analysis of core functions and parameter configuration

To achieve a robust control system, simply connecting signal lines is not enough. Fine tuning the series of auxiliary functions built into G3PW is necessary to fully utilize its performance.

1. Soft start Up/Down

This is the key to suppressing impact and extending equipment lifespan. When the input signal undergoes a step change, the output value does not immediately follow, but linearly changes at a preset rate.

Soft Start Time (SUP): The time required for the output value to rise from 0% to 100%. In phase control mode, this is particularly effective in suppressing large surge currents in cold metal heaters or transformers. A too short soft start time may lead to insufficient surge suppression.

Soft Shutdown Time (SDN): The time required for the output value to decrease from 100% to 0%. This can prevent thermal shock caused by sudden power outages in the heating system.

Application suggestion: Set these two parameters at the ADJ level. A reasonable soft start time needs to be determined through experiments based on load characteristics. Usually starting from 1-5 seconds, observe whether the starting current is within the allowable range.
