OMRON CPM1A Maintenance and Troubleshooting

Complete Guide to Maintenance and Troubleshooting of OMRON CPM1A PLC System

In the field of industrial automation, OMRON's SYSMAC CPM1A series PLC has become the core of many small to medium-sized control systems due to its compact design, high-speed processing capabilities, and flexible scalability. Although this series of products has been launched for many years, there are still a large number of CPM1A PLCs operating stably in factories and equipment around the world. For maintenance engineers and technicians, mastering the details of system configuration, hardware replacement, fault diagnosis, and firmware and data backup is the key to ensuring the continuous and efficient operation of the production line. This article will provide an in-depth analysis of the hardware characteristics, technical specification evolution, and core functional applications of CPM1A PLC, and provide a systematic maintenance and troubleshooting strategy.

Review of CPM1A System Architecture and Core Features

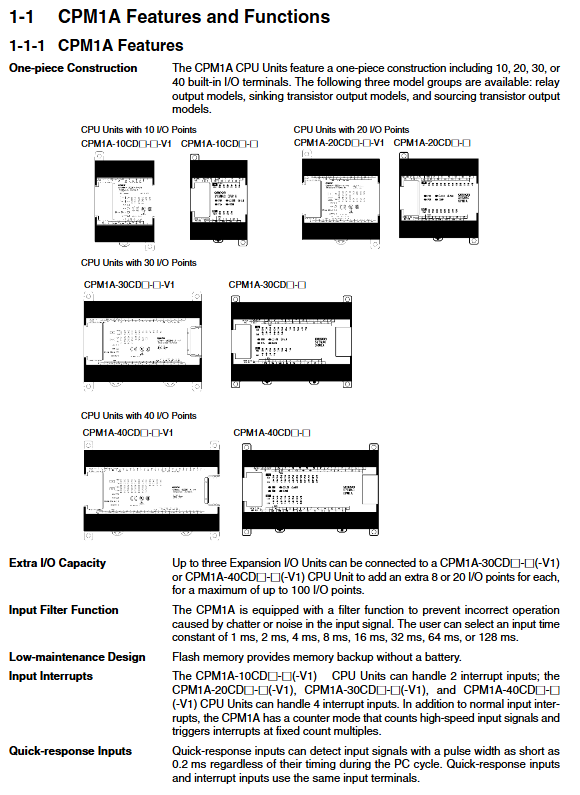

The CPM1A series adopts an integrated CPU unit that integrates a certain number of I/O points, ranging from 10 to 40 points, and is divided into three models: relay output, sinking transistor output, and sourcing transistor output. Its core advantage lies in its flexible scalability.

Modular expansion: For CPU units with 30 or 40 points, up to 3 expansion I/O units can be connected, expanding the total I/O points to 100 points. In addition, it can also connect various special functional units, greatly enriching the system's functions:

Analog I/O Unit (CPM1A-MAD01/MAD11): Each unit provides 2 analog inputs and 1 analog output, with a resolution of up to 1/6000, supporting multiple signal ranges such as 0-10V, -10-10V, 4-20mA, etc.

Temperature sensor unit (CPM1A-TS001/002/101/102): can be directly connected to thermocouples or platinum resistance thermometers to achieve high-precision temperature acquisition.

CompoBus/S I/O Link Unit (CPM1A-SRT21): enables CPM1A to serve as a slave station in the CompoBus/S fieldbus network, enabling remote I/O links with 8-point inputs and 8-point outputs.

DeviceNet I/O Link Unit (CPM1A-DRT21): Integrate CPM1A into the DeviceNet network as an I/O link that provides up to 32 inputs and 32 outputs from the slave station.

High performance built-in features: CPM1A integrates multiple advanced functions within its compact body, allowing it to handle complex control tasks with ease.

High speed counter: Built in a high-speed counter that supports incremental mode (single-phase, up to 5kHz) or phase difference mode (two-phase, up to 2.5kHz), and can be used to connect encoders for accurate position or velocity measurement.

Pulse output: The transistor output type CPU unit has pulse output function, with a single-phase output frequency of up to 20kHz, which can directly drive stepper motors for simple positioning control.

Input interrupts and fast response: The CPU unit provides 2 interrupt inputs at 10 o'clock, and 4 interrupt inputs at 20-40 o'clock. In interrupt mode, it can immediately respond to external signals and execute interrupt programs. Its fast response input function can detect pulse signals as short as 0.2ms, ensuring that no critical input changes are lost.

Simulation setting: The CPU unit comes with two analog potentiometers, and their set values (0-200 BCD) will be automatically stored in the IR 250 and IR 251 words, which can be used to manually adjust the timer or counter set values.

Differences in hardware versions and key points for replacement selection

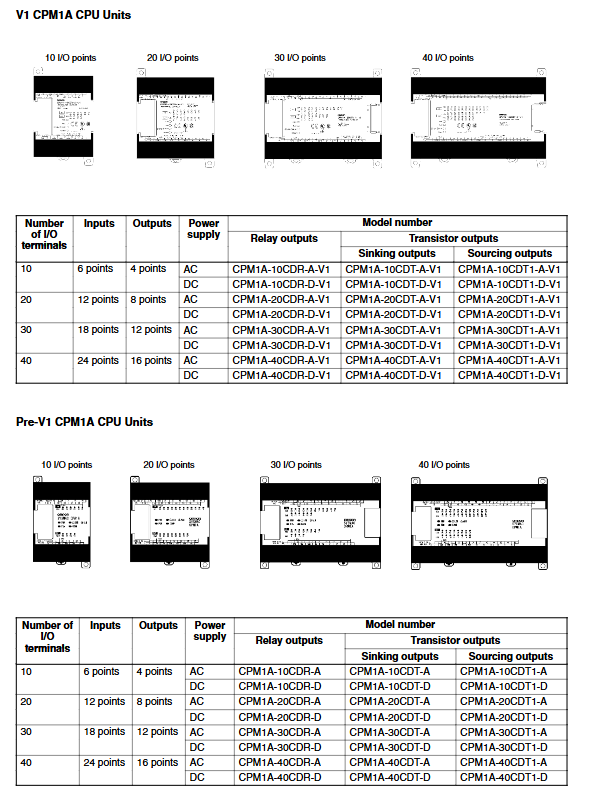

When performing maintenance on old systems or replacing faulty units, it is necessary to understand the hardware version differences of CPM1A. The manual clearly states that as of May 2001, the products are divided into the "V1" model and the "pre-V1" (formerly V1) model.

Model identification: The V1 model has a suffix of "- V1" at the end, such as CPM1A-40CDR-A-V1, while earlier models did not.

Key specification changes:

Compliance: The V1 model complies with the EC Directive (EMC and Low Voltage Directive), while early AC powered CPU units do not meet the requirements of the EC Directive.

Physical characteristics: The I/O connector shape and indicator light layout of V1 model have been changed. The external depth of the AC power type CPU unit has been reduced from 85mm to 70mm.

Output specification: The mechanical lifespan of the V1 model relay output unit has been increased from 10 million cycles to 20 million cycles. The transistor output unit has removed the common terminal fuse.

Terminal definition: The V1 model AC power type CPU unit has removed the functional grounding terminal and replaced it with an empty (NC) terminal.

Replacement guidance: When replacing a pre-V1 unit, it is recommended to directly choose the corresponding V1 model. Please note the following points:

Installation size: Confirm whether the depth of the control cabinet is compatible with the size of the new model (70mm).

Wiring: Verify power and I/O wiring, especially changes in the definition of grounding terminals. For the V1 model AC power unit, the original functional grounding wire should be connected to the protective grounding terminal.

Program: The user program is stored in flash memory and theoretically does not require any modifications. But to ensure system security, a thorough I/O function test should be conducted after replacement.

System wiring and anti-interference practical combat

Correct wiring is the foundation for stable operation of PLC systems. The manual emphasizes multiple key precautions.

Power and Grounding:

The wiring terminals of AC power type (100-240VAC) and DC power type (24VDC) cannot be confused.

Protective grounding: A wire with an area of 1.25mm ² or more must be used for grounding, and the grounding resistance must be less than 100 Ω to prevent electric shock and resist electrical noise.

Functional grounding: For pre-V1 AC units, the functional grounding terminal should be disconnected before conducting a voltage withstand test and reconnected after the test.

Input wiring:

Suppressing leakage current: When using two-wire sensors (such as proximity switches), their leakage current may cause input point misoperation. When the leakage current exceeds 1.0mA (2.5mA for IN00000-IN00002), a discharge resistor must be connected in parallel at the input end.

Handling inductive loads: For inductive loads (such as relay coils) connected in parallel with input contacts, a diode must be connected in parallel for surge absorption to prevent reverse induced voltage from damaging the input circuit.

Output wiring:

Relay output: Relay output is suitable for AC or DC loads, but attention should be paid to its electrical life. When switching inductive loads frequently (e.g.>5 times/minute), surge suppressors must be connected in parallel on the load side.

Transistor output: Be sure to pay attention to polarity issues. The common terminal COM of the Sinking output type is connected to the negative pole (0V) of the power supply, and the load is connected to the positive pole; The opposite is true for the sourcing output type. The manual strongly recommends connecting a 0.5-1.0A protective fuse in series in each output circuit to prevent damage to internal transistors due to load short circuits.

Special requirements for pulse output: When using 01000 or 01001 as the high-speed pulse output point, it is necessary to ensure that the load current is between 0.1A and 0.2A. If the current is too small, it will cause an increase in output shutdown delay, making it impossible to output the correct high-speed pulse; If the current is too high, it will overheat and damage the transistor. If necessary, a dummy load resistor should be connected in parallel.

Memory System and Data Security Mechanism

CPM1A adopts a battery free design, but its data persistence depends on two different technologies, and understanding this is crucial for preventing data loss.

Flash backup (permanent storage):

Content: User program, read-only DM area (DM 6144-DM 6599, also known as PC system settings area), and PC Setup (DM 6600-DM 6655).

Feature: Data is non-volatile and will not be lost in the event of a power outage.

Key operation: Any modifications to the contents of the flash memory area mentioned above will not be immediately written to the flash memory. New data will only be written to the flash memory when the PLC mode is switched from Program to RUN or MONITOR mode, or when the PLC is powered off and then back on. If the modification is immediately powered off and the power outage time exceeds 20 days (at 25 ° C environment), the modification will be invalid due to data loss in RAM, and the data will become undefined.

Capacitor backup (temporary storage):

Content: Read and write DM area (DM 0000-DM 0999, etc.), error log area (DM 1000-DM 1021), hold relay area (HR 00-HR 19), counter area (CNT 000-CNT 127).

Feature: The data is powered and maintained by a large capacitor inside the CPU. It takes at least 15 minutes to fully charge the capacitor. At 25 ° C, a fully charged capacitor can hold data for 20 days.

Data loss warning: If the power outage time exceeds the holding capacity of the capacitor, the system flag AR 1314 will automatically turn ON, indicating that the capacitor data has been lost and the corresponding memory area will be reset to zero. Engineers can monitor AR 1314 to determine if there has been a prolonged power outage in the near future, and can choose to set this event as a fatal error in PC Setup to force the system to shut down for inspection.

System Fault Diagnosis and Common Error Analysis

The manual provides a powerful self diagnostic function and a clear error indication system, which are key to quickly troubleshooting.

LED indicator diagnosis:

PWR (green): ON indicates that the power supply is normal. If OFF, check the power input and fuse.

RUN (green): ON indicates that the PLC is in RUN or MONITOR mode; OFF indicates being in Program mode or experiencing a fatal error.

ERR/ALM (red): Always on indicates a fatal error (such as memory error, I/O bus error), causing the PLC to stop running. Flashing indicates non fatal errors (such as system settings errors, execution of FAL instructions), and the PLC continues to run.

Handling of common fatal errors:

Memory ERR (F1): This error is accompanied by multiple auxiliary flags indicating the specific cause.

AR 1308 ON: The program contains bit addresses that are not supported by the CPU. Use programming software to check and correct the program.

AR 1309 ON: Flash read/write error, which usually indicates a hardware failure of the CPU unit and needs to be replaced.

AR 1310/1311 ON: Read only DM or PC Setup area checksum error. Reset and write the correct parameters.

AR 1314 ON: Capacitor backup data lost. Clear errors and check/reset data in backup areas such as HR and counters.

NO END INST (F0): There is no END (01) instruction at the end of the program. Add this instruction at the end of the program.

I/O BUS ERR (C0): Data bus communication error between CPU unit and expansion unit. Firstly, check if the expansion connection cable is securely connected and replace it if necessary.

Non fatal errors handling:

SYS FAIL FAL xx: The FAL (06) instruction was executed in the program, triggering a user-defined alarm. Check the fault conditions corresponding to the FAL number.

SCAN TIME OVER (F8): Watchdog timer timeout (default 100ms). Indicates that the program loop time is too long. Optimize program logic, reduce loop time, or extend the watchdog timer setting in PC Setup.

Efficient maintenance operations using a programmer

For on-site maintenance, handheld programmers (such as CQM1-PRO01-E) are the most direct tools. Mastering the following key operations can significantly improve efficiency.

Mode switching and password: After connecting the programmer, select the PROM, MONITOR, or RUN mode through the mode switch. After the first connection or power on, a password (press CLR and then press MONTR) is required to unlock the programming function.

Memory Clear: In Program mode, press SET, NOT, RESET, and then MONTR to perform a "Clear All" operation, which will erase user programs, PC Setup, and all data areas. If you only want to keep a portion of the area (such as the HR area), press the corresponding key (such as HR) to remove the area from the clear list before pressing MONTR.

Compulsory operation and debugging:

Force Set/Reset: In MONITOR mode, by monitoring a bit address, pressing the SET or RESET key can temporarily force a change in its state. This is very useful when testing output wiring or bypassing input conditions for program logic verification.

Modify timer/counter settings: In monitoring mode, after displaying the timer or counter command, press the CHG key to quickly modify its settings (SV) without modifying the program.

Fault information reading: When the ERR/ALM indicator light flashes or stays on, press FUN and then press MONTR to read the error codes and information stored in the PLC. This is the quickest way to locate the fault.
