ABB ACH550 Inverter Replacement and Troubleshooting Guide

Introduction: When HVAC frequency converters face downtime and malfunctions

In HVAC systems, variable frequency drives (VFDs) are the core equipment for regulating the speed of fans and pumps. ABB's ACH550 series is widely used in commercial buildings and industrial facilities worldwide due to its powerful built-in PID, Modbus/BACnet communication capabilities, and high reliability. However, as the equipment ages, the prototype number may face end-of-life (EOL) or encounter difficult to diagnose faults. Engineers often need to complete replacements or repairs within tight downtime.

This article is based on the official installation, operation, and maintenance manual of the ACH550 series (UH standard type, E-Clipse Bypass type, PCR/PDR with isolating switch type), extracting practical information such as key safety rules, wiring points, fault codes and troubleshooting methods, maintenance cycles, etc., providing a direct reference technical guide for on-site engineers.

Product Series Overview

The ACH550 series is divided into three categories:

ACH550-UH: Standard HVAC driver, power range 1... 550 HP (0.75... 400 kW), rack size R1... R8. Provide two protection levels: IP21/UL Type 1 and IP54/UL Type 12.

ACH550-BCR/BDR/VCR/VDR (E-Clipse Bypass): A complete set of drivers with integrated bypass contactors, with power ranging from 1 to 400 HP. It can automatically switch to power frequency bypass operation in case of frequency converter failure, ensuring continuous operation of the fan/water pump.

ACH550-PCR/PDR (Packaged Drives with Disconnect): A complete set of drives with isolating switches or circuit breakers, with a power of 1... 550 HP, for safe power-off during maintenance.

All models are based on the same control platform, using ACH-CP-B control panel, sharing parameter groups and fault code system.

Key points for safe installation: warnings that must be followed

3.1 Dangerous voltage and discharge time

Even if the motor stops, there are still dangerous voltages present on power terminals U1, V1, W1 (L1, L2, L3) and motor terminals U2, V2, W2 (T1, T2, T3).

After disconnecting the input power, it is necessary to wait for at least 5 minutes for the intermediate circuit capacitor to discharge before opening the cover plate. Measure the voltage between BRK+/UDC+and ground using a multimeter rated at 1000 V DC, and confirm that it is below 30 V.

In bypass type drives, even if the frequency converter is not running, the bypass circuit may still make the motor terminals live.

3.2 Automatic restart risk

If an external command exists, ACH550 will automatically start after power interruption recovery. Before maintenance, the main power supply must be disconnected and locked.

3.3 Heat dissipation and installation space

Leave at least 50 mm (2 inches) of side space and 200 mm (8 inches) of up and down space around all non heat sources.

If it is close to the heat source, the above distance needs to be doubled. The temperature of the radiator may be extremely high, avoid touching it.

3.4 IT Systems and EMC Filters

In ungrounded systems (IT systems) or high impedance grounded systems (>30 ohms), the internal EMC filter must be disconnected:

Rack R1... R4: Remove the EM1 screws (EM3 was originally removed).

Rack R5... R6: Remove F1 and F2 screws.

Otherwise, the EMC filtering capacitor may cause the system to ground potential, which may damage the driver or pose a danger. After disconnecting the filter, the driver will no longer meet EMC standards.

3.5 Lifting and Handling

R1... R6 rack: can only be lifted through a metal chassis, do not lift the plastic cover plate.

R7/R8 rack: Use lifting rings and lifting equipment, do not tilt or transport horizontally (must be upright).

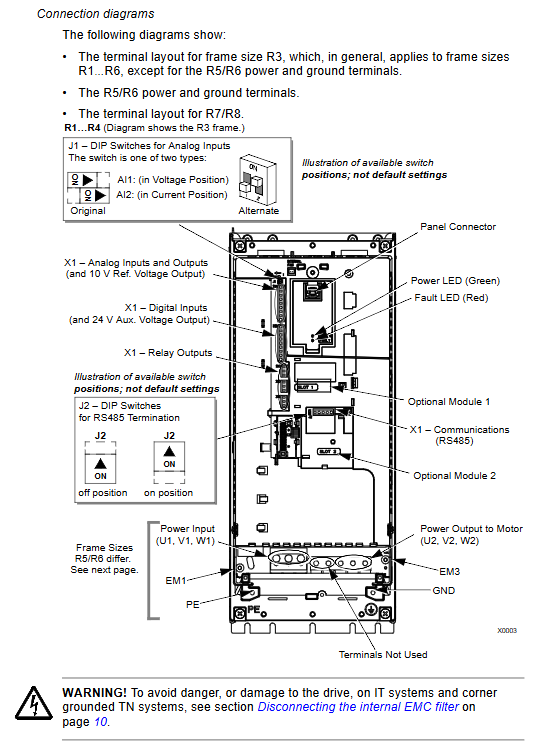

Electrical wiring specifications

4.1 Power and motor cables

The input power cord, motor cable, and control cable must be separately threaded through metal conduits.

The shielding layer of the motor cable must be connected to the PE terminal of the driver.

Do not connect power factor compensation capacitors in motor cables.

For R5 rack, the minimum power wire diameter is 25 mm ² (4 AWG); If R6 racks use cables smaller than 95 mm ² (3/0 AWG), they must be replaced with ring terminals (compression terminals are only suitable for ≥ 95 mm ²).

Terminal torque (partial example):

Rack power terminal torque, ground terminal torque

R1…R2 1.4 N·m (12.4 lb‑in) 1.4 N·m

R3 2.5 N·m (22 lb‑in) 1.8 N·m

R4 6 N·m (53 lb‑in) 5.6 N·m

R5 15 N·m (133 lb‑in) 15 N·m

R6 30 N·m (265 lb‑in) 30 N·m

R7…R8 40 N·m (354 lb‑in) 40 N·m

4.2 Control cable wiring

The shielding layer of digital and analog I/O cables is grounded at the driver end (terminal X1-1).

The shielding layer of RS485 communication cables (terminals X1-28... X1-32) is grounded at X1-28 or X1-32, with a single end grounded.

The control cable should be kept at least 6 mm (1/4 inch) away from the power cable and secured with zip ties.

4.3 Bypass Control Wiring (E-Clipse Bypass)

Internal serial communication uses X1-28... X1-32 and cannot be used for other purposes.

External BMS communication (BACnet, Modbus, etc.) is configured through the bypass control panel and cannot be configured using the ACH550 control panel.
