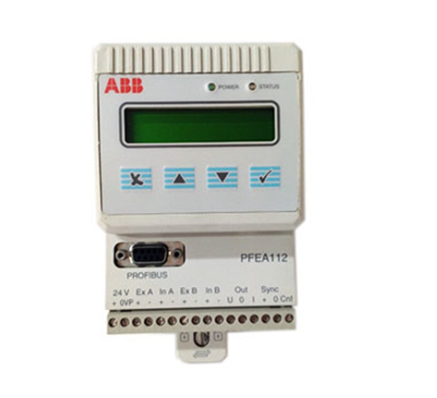

ABB 3BSE050091R20 Tension Electronics PFEA112-20

Wiring specifications: When performing equipment wiring operations, it is necessary to strictly follow the requirements of the product manual. Carefully distinguish between different interfaces such as power supply wiring, sensor wiring, and output control wiring to ensure that the wiring is firm and reliable, and to avoid loosening, short circuits, and other situations. Especially when connecting tension sensors, attention should be paid to the correct connection of signal polarity to prevent abnormal signal transmission or equipment damage caused by wiring errors.

Parameter setting and calibration: Parameter setting and calibration operations are required after the initial use of the equipment or replacement of key components such as tension sensors. According to the actual production process requirements, accurately set key parameters such as tension preset values, signal filtering parameters, and output signal ranges. At the same time, professional calibration tools are used to calibrate the equipment to ensure the accuracy of tension measurement and control. In the subsequent production process, equipment should also be regularly calibrated and maintained to ensure the long-term stability of equipment performance.

Software Upgrade and Maintenance: With the continuous development and updates of technology, ABB may release software upgrade versions for PFEA112-20 to fix known issues, improve equipment performance, or add new features. Users should pay attention to the software update information officially released by ABB and, if conditions permit, upgrade the equipment software in a timely manner. During the upgrade process, it is necessary to strictly follow the steps in the upgrade guide, backup important data in the device in advance, and prevent data loss or device failure caused by accidents during the upgrade process.

Similar model supplement

PFEA111: Compared with PFEA112-20, PFEA111 also has tension control function and can connect two pressure heads. But its biggest difference is that it does not have a DP interface, which limits its integration with other devices or systems that have DP communication capabilities. If the application scenario does not require high communication functionality and the budget is relatively limited, PFEA111 can be a more economical choice.

PFEA113: This model also comes with a DP interface, and the main difference from PFEA112-20 is its stronger tension unit expansion capability, which can connect four pressure heads. This makes PFEA113 advantageous in scenarios where tension monitoring and control dimensions are higher and production processes are more complex, such as large-scale paper production lines or multi material composite processing lines, which can accurately monitor and control tension at more locations simultaneously.
