Product overview

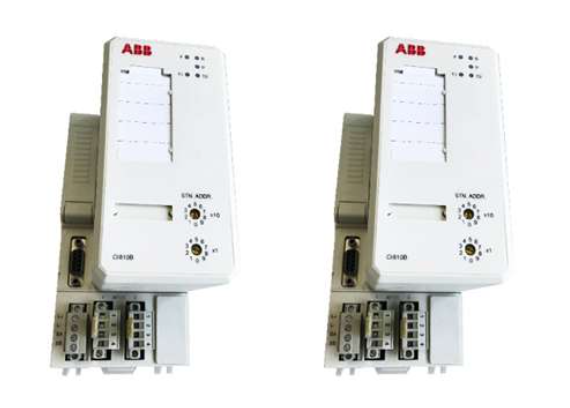

ABB CI810B AF 100 is a fieldbus communication interface module (product ID: 3BSE020520R1), whose core function is to achieve fieldbus communication connection through two AF100 twisted pair modems. As a key interaction node between equipment and bus network in industrial control systems, it supports data transmission and signal interaction between equipment, and is an important component of ABB's industrial automation communication system.

Includes components

1 power connector, model 3BSC840098R1.

One TB807 module bus terminator, model 3BSE008538R1.

Two terminal blocks, model 3BSC840098R1.

Also includes AF100 connector, model 3BSC840105R1.

Technical and Classification Information

Product type: Belongs to Communication-Module.

Category: Refers to multiple control systems and related I/O and communication module classifications, such as multiple subcategories under Control System Products and 800 in Control Systems xA、Advant OCS with Master SW、Advant OCS with MOD 300 SW、Compact Product Suite  The classification of I/O and communication modules under the same system is covered in multiple versions of S800 I/O (4.0, 4.1, 5.0, 5.1).

Physical and other information

Physical parameters: The net height of the product is 250mm, the net width is 158mm, and the net weight is 0.5kg.

Environment related: The WEEE category is small equipment (with no external dimensions exceeding 50 centimeters) and the number of batteries is 0.

Customs related: The country of origin is Estonia (EE), and the HS code corresponds to other devices used for transmitting or receiving voice, image, or other data, including devices used for wired or wireless network communication, except for specific items. It also involves customs tariff code 85389091.

Core functions

Fieldbus communication: Through AF100 twisted pair modem, bidirectional data transmission between industrial equipment and fieldbus network is achieved, supporting real-time interaction of equipment status signals, control instructions and other information.

Module integration adaptation: As a communication intermediate node, it is compatible with S800 I/O series (4.0/4.1/5.0/5.1 versions) and control systems such as Advant OCS and 800xA, enabling communication and collaboration between different devices.

Stable signal transmission: equipped with module bus terminator (TB807) to reduce signal interference, ensure the stability of bus communication and data transmission accuracy.

Working principle

CI810B, as a fieldbus communication interface, converts the electrical signals of industrial equipment into a signal format suitable for bus transmission through AF100 twisted pair modems, and connects to the fieldbus network through terminal blocks and connectors; Simultaneously receiving control signals transmitted through the bus, converting them and transmitting them to connected devices, achieving closed-loop communication of "device bus control system". The module bus terminator (TB807) is used to eliminate signal reflection and ensure signal integrity during long-distance transmission. Software version 1.5 supports the parsing and execution of basic communication protocols.

Key advantages

Strong compatibility: Suitable for multiple ABB control systems (such as 800xA, Advant OCS) and different versions of S800 I/O series, flexibly integrated into various industrial automation architectures.

Signal stability: Equipped with a built-in terminal and twisted pair modem, it effectively resists interference and ensures communication reliability in complex industrial environments.

Easy integration: Equipped with complete connectors, terminal blocks, and other components, it simplifies the installation and wiring process and reduces the difficulty of system integration.

Precautions

Installation environment: It belongs to "small equipment" (size ≤ 50cm) and needs to be installed in a dry, non strong electromagnetic interference industrial environment to avoid the influence of dust and corrosive gases.

Wiring specifications: Strictly follow the model of the supporting components (such as power connector 3BSC840098R1) for wiring, ensure the correct connection between the terminal block and the bus, and prevent abnormal signal transmission.

Software adaptation: The basic software version is 1.5. When upgrading or replacing, it is necessary to confirm compatibility with the control system version to avoid communication protocol mismatch.

Similar model supplement

CI801: ABB is another fieldbus interface module that supports the PROFIBUS protocol and is suitable for scenarios with specific communication protocol requirements. It is different from the AF100 bus type of CI810B.

CI854: A communication module that supports EtherNet/IP protocol, with a focus on high-speed data transmission in Ethernet environments, suitable for industrial scenarios that require high bandwidth communication.
