ProSoft MVI56-PDPMV1 PROFIBUS DPV1 Master Module Complete Guide

Introduction

In modern industrial automation systems, efficient and reliable data exchange between devices from different manufacturers is a core requirement. PROFIBUS (Process Field Bus) is one of the most widely used field buses worldwide, connecting countless PLCs, drivers, I/O stations, and sensors. The MVI56-PDPMV1 module from ProSoft Technology is designed to build a robust and high-performance bridge between the Rockwell Automation ControlLogix platform and the PROFIBUS network.

This article aims to provide users with a comprehensive technical guide on the MVI56-PDPMV1 module. We will systematically organize the complete process from hardware installation, software configuration, network construction to advanced functional applications (such as DPV1 non cyclic communication and email messaging) based on the official user manual, to help engineers and technicians fully understand and utilize the powerful functions of this module.

1. Module Overview and Core Functions

MVI56-PDPMV1 is a single slot PROFIBUS DPV1 master module designed specifically for the ControlLogix platform. It is not only a physical I/O module, but also an intelligent protocol conversion and data processing engine. Its core functions are reflected in the following aspects:

1.1 Hardware and Electrical Characteristics

The module is compatible with the 1756 backplane and can be directly inserted into the ControlLogix rack. Its electrical parameters include: backplane current load of 800 mA @ 5 Vdc and 3 mA @ 24 Vdc, operating temperature range of 0 ° C to 60 ° C, suitable for most industrial field environments. The PROFIBUS port adopts an electrically isolated RS-485 interface, equipped with a 9-pin D-sub female connector, and supports baud rates up to 12 Mbps. The module also includes an RJ45 configuration/debugging port for serial communication with the PC.

1.2 Protocol and Function Support

As the main station of DPV1, MVI56-PDPMV1 fully complies with the IEC 61158 standard and supports the following key functions:

Circular data exchange: Automatically manages I/O data on the PROFIBUS network, supporting up to 1536 bytes of input and 1536 bytes of output.

DPV1 non cyclic communication: supports MSAC1 read-write services, allowing access to parameters, diagnostic, and calibration data of slave devices during normal cyclic data exchange intervals.

DPV1 alarm processing: capable of automatically receiving and processing alarm information sent from the station.

Synchronization and Freeze Commands: Supports Sync and Freeze modes for event driven output synchronization and input locking.

Extended diagnosis: Supports extended diagnostic data provided by the slave station, making it easy to quickly locate faults.

Flexible I/O size: Through FLEX mode, users can customize the size of backplane I/O blocks to optimize network bandwidth for remote rack applications.

2. Hardware installation and safety instructions

Proper hardware installation is the foundation for stable system operation. Before installation, please be sure to read and follow the following safety warnings and operating procedures.

2.1 Safety Warning (Key Information Excerpt)

The manual emphasizes the use of critical safety warnings in hazardous environments (Class I, Division 2), which must be strictly followed:

Explosion hazard - replacement of components: Replacement of components may impair their suitability for Class I, Zone 2 environments.

Explosion hazard - power-off operation: In hazardous areas, the power must be turned off before replacing or wiring modules.

Explosion hazard - live plugging: Do not disconnect equipment without cutting off power or confirming environmental safety.

Power limitation: The device must only be powered by Class 2 output.

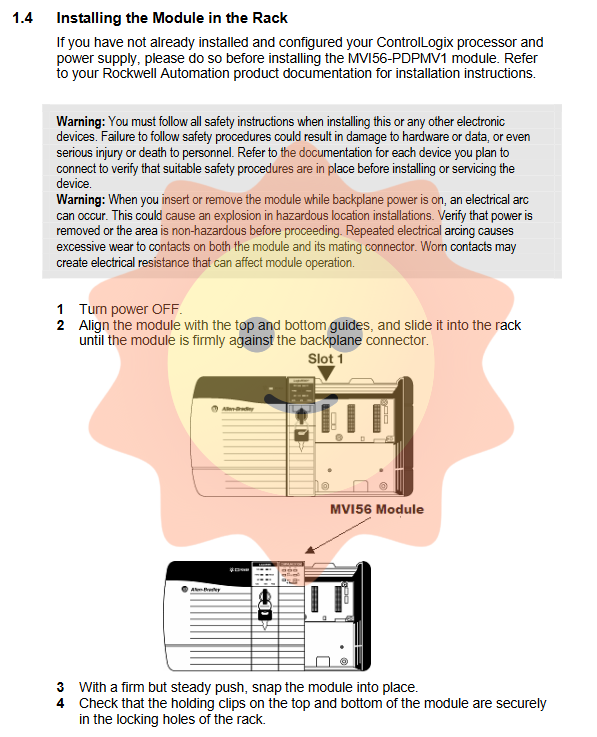

2.2 Installation steps

Power off: Before inserting or unplugging modules, be sure to turn off the ControlLogix backplane power.

Positioning and Insertion: Align the module with the upper and lower rails of the rack, smoothly slide it into the rack until the module firmly contacts the backplane connector. Ensure that the buckle at the top of the module is securely inserted into the locking hole of the rack.

Record slot: Record the slot number where the module is located. This information is crucial in the subsequent RSLogix 5000 software configuration.

Power on: After confirming that the module is securely installed, power on the backplane again.

3. System requirements and software installation

Before starting the configuration, ensure that your PC and workstation meet the minimum system requirements.

3.1 Minimum System Requirements

Hardware: Pentium II 450 MHz processor, 128 MB RAM, 100 MB hard disk space, and graphics card supporting at least 800x600 resolution. Recommend using Pentium III 733 MHz and 256 MB RAM for better performance.

Software:

Operating System: Microsoft Windows XP Professional (SP1/2), Windows 2000 Professional (SP1-3), or Windows Server 2003.

Rockwell Automation RSLogix 5000 (version 2.51 or higher).

Rockwell Automation RSLinx communication software.

ProSoft Configuration Builder (PCB) configuration software.
