Rockwell 1494 Series Isolation Switch Selection and Replacement Guide

In industrial electrical systems, isolation switches and fuse blocks play a crucial role in circuit continuity, overcurrent protection, and safety isolation. The Allen Bradley 1494 series has become the preferred choice for many engineering projects due to its visible blade design, flexible installation methods, and extensive certification system. However, as equipment ages or systems upgrade, engineers often face challenges in accurately selecting, replacing discontinued models, and troubleshooting on-site faults. This article combines the latest technical information of the 1494 series and provides a complete technical solution from five dimensions: product comparison, selection parameters, installation points, replacement process, and common troubleshooting.

Overview of the 1494 Series Product Family

The 1494 series includes various types of isolation switches and fuse blocks, covering a current range of 30   A to 600   A, suitable for industrial heavy-duty, hazardous areas, and control circuit protection.

Model Features Installation Method Fuse Type Shell Grade

1494U visible blade flange switch, saving 30% space, supporting connecting rod or cable operation flange installation J, R, H (optional non melting) Type 3R/4/12/4X

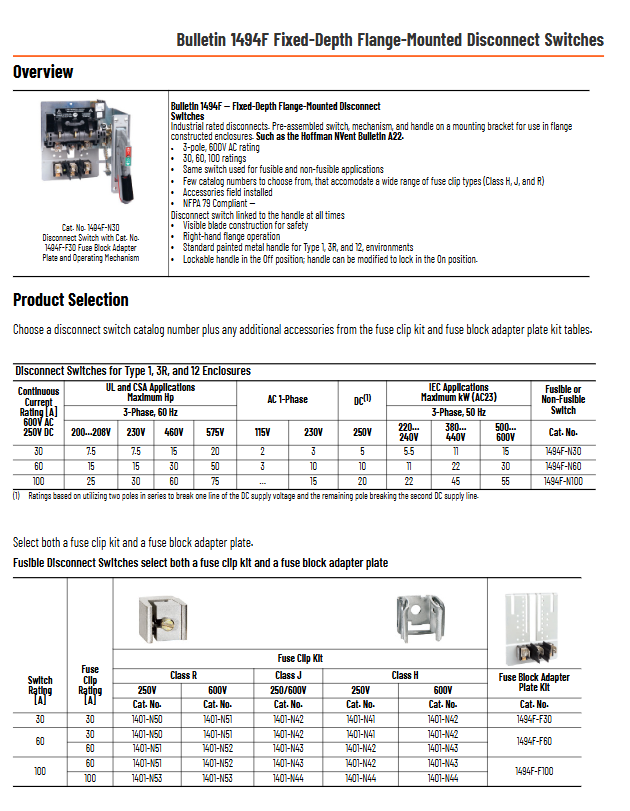

1494F fixed depth flange installation, pre installed switch, mechanism and handle fixed depth flange J, R, H (requires adapter plate) Type 1/3R/12

1494G Heavy Industry and Hazardous Areas (Explosion proof) Side Installation or Flanges J, R, H (Partially Non Fused) Type 3R/7/9, Class I/II

1494H heavy-duty side mounted handle, visible blade side mounted J, R, H Type 1/3R/12

1491 Control Circuit and Power Fuse Block Panel Installation CC, H, J, R Open (IP00)

1494U is a series that has been upgraded in recent years, using a universal mechanism. The same switch can be operated with both cables and connecting rods, greatly simplifying inventory management. Its fuse clip supports J-class or R-class and comes standard with IP20 finger touch protection cover (wire end and load end). Compared to the old 1494F, the width has been reduced by about 30%, providing more space for compact control cabinets.

Detailed explanation of key selection parameters

2.1 Current and Voltage Levels

Rated continuous current: 30, 60, 100, 200, 400, 600 A (600 V AC).

DC rating: 250   V DC and 600   V DC (some models), with 5   A at 250   V DC and 50   A at 600   A (based on two pole series connection).

Horsepower rating: For example, the 1494U-D30 has 7.5 horsepower at 230   V three-phase, 15 horsepower at 460   V, and 20 horsepower at 575   V. When selecting, it is necessary to compare the motor full load current to ensure that the HP rating of the switch is not lower than the motor nameplate value.

2.2 Types of fuses

Non fuse type: only provides switch function, requires additional short-circuit protection upstream.

J-type fuse: high breaking capacity (200 kA), compact size, suitable for 600V systems. 1494U-D30J6 represents a 30   A, J type fuse, 600   V, 3 poles.

R-class fuse: with rejection characteristics to prevent replacement with H-class fuses with low breaking capacity. Special fuse clips (such as 1401-N51) are required.

H-type fuse: economical, but with a breaking capacity of only 10 kA, recommended only for low short-circuit current systems.

Engineering Tip: If the expected short-circuit current of the system exceeds 10 kA, J-class or R-class fuses must be selected, otherwise the 200 kA withstand requirement cannot be met.

2.3 Operation mode and handle

Flange handle: directly installed on the cabinet door panel, suitable for 1494U and 1494F. The handle material can be selected from non-metal (Type 4X), painted metal (Type 1/3R/12), or 304 stainless steel (Type 4/4X). The handle can be padlocked in the OFF position (locking in the ON position requires on-site modification).

Cable operating mechanism: Used when the distance between the switch body and the handle installation is far (such as in a deep cabinet). 1494U provides cables of 3, 4, 5, and 6 feet (approximately 0.9-1.8 meters), with models such as 1494U-C314 (4 feet). The bending radius of the cable must be ≥ 75   mm and must not be squeezed by other components inside the cabinet.

Connecting rod operation: stainless steel connecting rod is used, suitable for medium distance. The connecting rod kit should be selected according to the working depth of the cabinet (such as 1494U-R1200 suitable for 172-483mm depth).

Key points of installation and wiring technology

3.1 Mechanical Installation

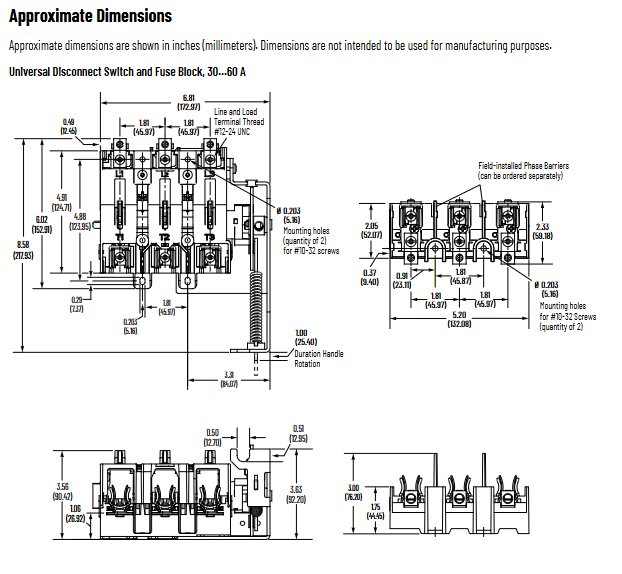

Flange opening: According to NEMA size, the opening size of the 30-60A switch is 6-19/64 × 7-31/32 in, and the installation hole diameter is 7/32 in. The 400A opening reaches 11 × 18-7/32 in.

Tightening torque: 0.5-0.6 N · m for the handle mounting bolt; When connecting the power terminal wire to the terminal block, 30 A is 2.3-2.8 N · m, and 600 A is 31.1-34.5 N · m. The fixed torque between the terminal block and the switch body is 4.5-6.8 N · m (30-60 A) to 20-23 N · m (400-600 A).

Phase barrier: To avoid phase to phase flashover, 1494F-PH2 (30/60 A) or 1494F-PH3 (100 A) should be used for 30-100 A; 200   A using 1494F-PH4; 400A uses 1494F-PH5.

3.2 Wires and Terminal Blocks

Wire specifications: 30-60 A, recommended 14-2 AWG copper wire or 12-2 AWG aluminum wire; 100 A recommends 14-1/0 AWG copper wire; 200   A recommends 6-250   MCM copper/aluminum; 400   A recommends (2) 6-300   MCM copper/aluminum; 600   A recommends (2) 1/0-500   MCM copper/aluminum.

Terminal selection: 1494U-LC36 (30-60   A copper wire), 1494U-LA36 (aluminum wire). For multi motor loads (load side), 1494U-LM31 (30-100   A, supports 6 14-4   AWG wires) can be used.

Torque and temperature: All wires must use a rated temperature of 75 ° C or above, and the current carrying capacity should be selected according to local electrical regulations.

3.3 Auxiliary contacts and electrical interlocking

QuadConnect ™ Contact (2.5   A, C300/R150): Directly indicates the position of the switch blade, 1494U-NOLV (1 normally open) or 1494U-NCLV (1 normally closed). During installation, adapter kit 1495-N36 (one per contact) is required.

Standard auxiliary contacts (10   A, A600/R300): used for 400-600   A switches, models 1495-N81 (normally open), 1495-N9X (normally closed low energy).

Electrical interlock: Early Break type, which cuts off the power supply of electronic devices before the switch is opened to prevent transient voltage damage. 1494U-AE is suitable for 30-100   A, with 2 normally open contacts and 10   A/250   V AC/DC.

Replacement steps from old model to 1494U

Many sites still use 1494F fixed depth switches or early non universal switches. Replacing with 1494U can enhance flexibility and save space. The specific process is as follows:

Check the depth and openings of the cabinet

The flange opening of 1494U is not exactly the same as 1494F and needs to be re cut. The opening size of 30-60 A is 6-19/64 × 8-15/32 in (maximum), while 1494F is 9-3/16 × 4-5/16 in. It is recommended to use an opening template (provided with the switch).

Select operating mechanism

If the original switch uses a connecting rod: measure the working depth of the cabinet (from the flange surface to the switch installation surface), select 1494U-R1200 (172-483mm) or 1494V-RA3 (232-585mm).

If the original switch uses cables: Select the corresponding length of 1494U cable kit (3-6 feet) based on the length of the original cable. Note that the outer sheath of the 1494U cable is more flexible and has a longer bending life.

Replace the fuse clip

Old models may use H-class or R-class fuse clips. 1494U requires ordering an independent fuse clip kit:

30   A J class: 1494U-FC30J; R-class: 1494U-FC30R.

200   Class AJ: 1401-N45; R-class: 1401-N54.

600   A J class: No clamp required, the fuse is directly bolted to the switch terminal; H/R class uses 1491-R621 (3 per 3 poles) and 1495-N69 fuse covers.

Install the handle

The original controller is usually not directly reusable. Choose 1494U-HP1 (non-metallic), 1494U-HM1 (painted metal), or 1494U-HS1 (stainless steel) according to the environment. Note that the handle and switch need to be connected through a square shaft, and the length of the square shaft should match the thickness of the cabinet door panel (usually three length adapters are provided).

Check the grounding and neutral wire

The 1494U switch itself does not include a grounding bus. Grounding plates need to be ordered separately (599-GR1 for 30-60 A, 599-GR2 for 100-200 A, X-320451 for 400-600 A). For a four wire system, a neutral wire kit can be used (such as the 599-NK series of 1494H, but the 1494U requires the use of 1494U-LA series neutral wire connectors to be self built).

Verify electrical clearance

Due to the narrowness of 1494U compared to 1494F, the depth may increase (especially when equipped with an IP20 cover). Ensure that the distance between the switch body and the back wall of the cabinet is at least 25mm to facilitate heat dissipation and cable bending.

Common faults and troubleshooting methods

5.1 Handle unable to rotate or stuck

Reason: Misalignment of the square axis, deformation of the cabinet door panel, and wear of the connecting rod mechanism.

Troubleshooting: Remove the handle and use a screwdriver to directly rotate the square shaft. If the square axis can rotate but the handle cannot, it is due to damage to the internal ratchet of the handle (replace the handle). If the square shaft is stuck, check whether the connecting rod is bent or the bolt is loose. For cable mechanisms, check if the cable has been squeezed or if the bending radius is too small (should be ≥ 75mm).

5.2 Frequent burning of fuses

Reason: Overload, short circuit, mismatched rated voltage of fuse, poor contact and heating.

Troubleshooting:

Measure whether the load current exceeds the rated value of the switch using a clamp meter.

Check if the fuse clip is oxidized or loose (insufficient torque). The contact pressure of the 30-60 A fuse clip can be restored by adjusting the spring plate.

Confirm that the breaking capacity of the fuse meets the short-circuit current of the system (for example, if an H-class fuse is used but the expected short-circuit current of the system is 20 kA, it should be replaced with a J-class).

Check if the fuse cover (IP20) is intact. If it is missing, it may cause foreign objects to enter and cause a phase to phase short circuit.

5.3 Auxiliary contact does not operate or resistance is too high

Reason: Contact oxidation, incorrect installation of adapter, wear of switch blade linkage mechanism.

Troubleshooting:

Disconnect the power supply and measure the contact resistance with a multimeter (normal<0.1   Ω).

Check if the adapter 1495-N36 is securely inserted into the groove on the side of the switch.

Manually operate the switch and observe whether the contacts move synchronously with the blade. For the 1494U, the QuadConnect contacts are directly driven by the shaft. If the action lags, the entire contact module needs to be replaced.

5.4 Abnormal heating of switch

Reason: Loose terminals, small wire specifications, and ambient temperature exceeding 40 ° C.

Troubleshooting:

Use a thermal imaging device to detect the terminal temperature. If it exceeds the ambient temperature of+65 ° C, it needs to be re tightened (according to the recommended torque).

Confirm that the wire is insulated at 75 ° C or above and the current carrying capacity meets NEC Table 310.16.

If installed in a sealed cabinet and the ambient temperature is above 40 ° C, it is necessary to reduce the capacity for use (for every 10 ° C increase, the current should be reduced by 10%).

Certification and Standard Compliance

The 1494 series holds the following key certifications for global project compliance:

UL 98/CSA C22.2 No. 4: Suitable for isolating switches (1494U/G/H).

UL 508: Suitable for industrial control equipment (some models).

Dangerous Place Certification: The 1494G model has passed CSA Class I, Div. 1&2, Groups C, D certification; Class II, Groups E, F, G。

Short circuit withstand: When combined with J-class or R-class fuses, the breaking capacity can reach 200   k   A (600   V AC).

International Marks: CE, CCC, UKCA, RoHS.
