Rockwell 1494 Series Isolation Switch Selection and Replacement Guide

In industrial electrical systems, isolation switches and fuse blocks play a crucial role in circuit continuity, overcurrent protection, and safety isolation. The Allen Bradley 1494 series has become the preferred choice for many engineering projects due to its visible blade design, flexible installation methods, and extensive certification system. However, as equipment ages or systems upgrade, engineers often face challenges in accurately selecting, replacing discontinued models, and troubleshooting on-site faults. This article combines the latest technical information of the 1494 series and provides a complete technical solution from five dimensions: product comparison, selection parameters, installation points, replacement process, and common troubleshooting.

Overview of the 1494 Series Product Family

The 1494 series includes various types of isolation switches and fuse blocks, covering a current range of 30   A to 600   A, suitable for industrial heavy-duty, hazardous areas, and control circuit protection.

Model Features Installation Method Fuse Type Shell Grade

1494U visible blade flange switch, saving 30% space, supporting connecting rod or cable operation flange installation J, R, H (optional non melting) Type 3R/4/12/4X

1494F fixed depth flange installation, pre installed switch, mechanism and handle fixed depth flange J, R, H (requires adapter plate) Type 1/3R/12

1494G Heavy Industry and Hazardous Areas (Explosion proof) Side Installation or Flanges J, R, H (Partially Non Fused) Type 3R/7/9, Class I/II

1494H heavy-duty side mounted handle, visible blade side mounted J, R, H Type 1/3R/12

1491 Control Circuit and Power Fuse Block Panel Installation CC, H, J, R Open (IP00)

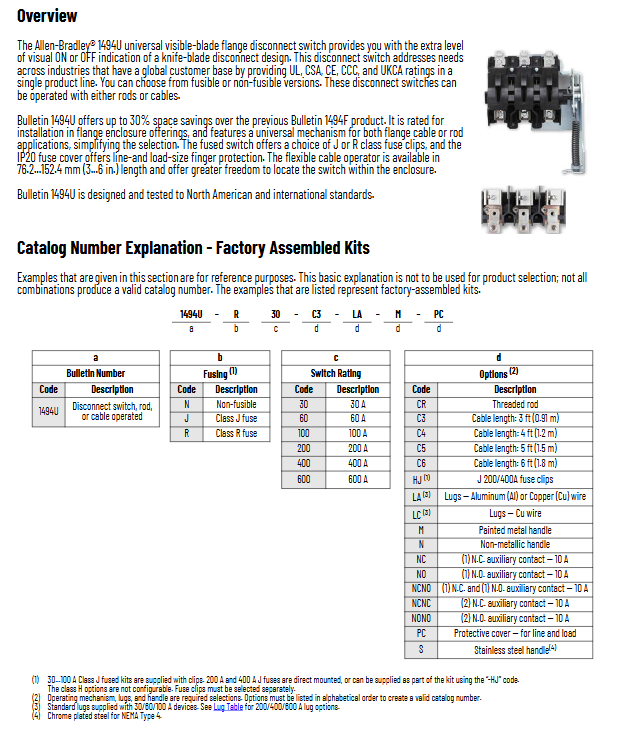

1494U is a series that has been upgraded in recent years, using a universal mechanism. The same switch can be operated with both cables and connecting rods, greatly simplifying inventory management. Its fuse clip supports J-class or R-class and comes standard with IP20 finger touch protection cover (wire end and load end). Compared to the old 1494F, the width has been reduced by about 30%, providing more space for compact control cabinets.

Detailed explanation of key selection parameters

2.1 Current and Voltage Levels

Rated continuous current: 30, 60, 100, 200, 400, 600 A (600 V AC).

DC rating: 250   V DC and 600   V DC (some models), with 5   A at 250   V DC and 50   A at 600   A (based on two pole series connection).

Horsepower rating: For example, the 1494U-D30 has 7.5 horsepower at 230   V three-phase, 15 horsepower at 460   V, and 20 horsepower at 575   V. When selecting, it is necessary to compare the motor full load current to ensure that the HP rating of the switch is not lower than the motor nameplate value.

2.2 Types of fuses

Non fuse type: only provides switch function, requires additional short-circuit protection upstream.

J-type fuse: high breaking capacity (200 kA), compact size, suitable for 600V systems. 1494U-D30J6 represents a 30   A, J type fuse, 600   V, 3 poles.

R-class fuse: with rejection characteristics to prevent replacement with H-class fuses with low breaking capacity. Special fuse clips (such as 1401-N51) are required.

H-type fuse: economical, but with a breaking capacity of only 10 kA, recommended only for low short-circuit current systems.

Engineering Tip: If the expected short-circuit current of the system exceeds 10 kA, J-class or R-class fuses must be selected, otherwise the 200 kA withstand requirement cannot be met.

2.3 Operation mode and handle

Flange handle: directly installed on the cabinet door panel, suitable for 1494U and 1494F. The handle material can be selected from non-metal (Type 4X), painted metal (Type 1/3R/12), or 304 stainless steel (Type 4/4X). The handle can be padlocked in the OFF position (locking in the ON position requires on-site modification).

Cable operating mechanism: Used when the distance between the switch body and the handle installation is far (such as in a deep cabinet). 1494U provides cables of 3, 4, 5, and 6 feet (approximately 0.9-1.8 meters), with models such as 1494U-C314 (4 feet). The bending radius of the cable must be ≥ 75   mm and must not be squeezed by other components inside the cabinet.

Connecting rod operation: stainless steel connecting rod is used, suitable for medium distance. The connecting rod kit should be selected according to the working depth of the cabinet (such as 1494U-R1200 suitable for 172-483mm depth).

Key points of installation and wiring technology

3.1 Mechanical Installation

Flange opening: According to NEMA size, the opening size of the 30-60A switch is 6-19/64 × 7-31/32 in, and the installation hole diameter is 7/32 in. The 400A opening reaches 11 × 18-7/32 in.

Tightening torque: 0.5-0.6 N · m for the handle mounting bolt; When connecting the power terminal wire to the terminal block, 30 A is 2.3-2.8 N · m, and 600 A is 31.1-34.5 N · m. The fixed torque between the terminal block and the switch body is 4.5-6.8 N · m (30-60 A) to 20-23 N · m (400-600 A).

Phase barrier: To avoid phase to phase flashover, 1494F-PH2 (30/60 A) or 1494F-PH3 (100 A) should be used for 30-100 A; 200   A using 1494F-PH4; 400A uses 1494F-PH5.
