SEW MOVIDRIVE ® MDX60B/61B Inverter: Installation, Debugging, and Maintenance Guide

SEW MOVIDRIVE ®  MDX60B/61B Inverter: Installation, Debugging, and Maintenance Guide

Introduction: Core components of modern drive control

In the field of industrial automation and drive technology, as the core of motor control, the performance and reliability of frequency converters directly affect the operational efficiency and stability of the entire system. MOVIDRIVE launched by SEW-EURODRIVE company ®  The MDX60B/61B series frequency converter, with its modular design, powerful communication capabilities, and flexible control modes, has become an ideal choice for driving three-phase asynchronous motors and permanent magnet synchronous motors. This article is based on the official operating manual (version 01/2005), providing a systematic and professional in-depth analysis of the series of frequency converters. The content covers the entire process from safety specifications, hardware structure to installation and debugging, parameter setting, and operation and maintenance, aiming to provide a comprehensive and practical technical reference for engineering design, installation, debugging, and maintenance personnel.

Chapter 1: Safety comes first - a crucial operational prerequisite

Safety is always the primary principle in the operation of any electrical equipment. MOVIDRIVE ®  The MDX60B/61B manual emphasizes the necessity of strictly following safety instructions at the beginning.

Safety Warning and Usage Regulations:

Usage regulation: This frequency converter is designed specifically for driving three-phase squirrel cage asynchronous motors or permanent magnet synchronous motors, and must be fixedly installed in a standard switchgear. It is strictly prohibited to use it beyond the specified range.

Prohibited use environment: It is strictly prohibited to use in explosive environments, environments containing harmful substances such as oil, acid, dust, radiation, and mechanical vibrations and impacts exceeding EN50178 standards.

Safe operating system: The equipment must operate under the supervision of higher-level safety systems (such as safety relays, safety PLCs) and cannot be used independently as safety functional components. Users need to refer to SEW's specialized publication on "secure disconnection".

Installation and Debugging Safety Guidelines:

Only electricians who have received professional training are allowed to work according to standards such as EN60204 and VBG4.

Equipment damage must be reported for repair immediately and cannot be installed or used.

It is necessary to ensure that the power is disconnected and wait for at least 10 minutes (to release the internal capacitor energy storage) before opening the protective cover. The equipment must remain fully enclosed during operation.

The output terminal and motor connection cable may still carry dangerous voltage after the equipment is stopped.

The use of the safety shutdown function (X17 terminal) must strictly follow the dedicated safety documentation.

Operation and maintenance safety instructions:

Clearing or resetting internal faults of the device may cause the motor to automatically restart. If the process does not allow it, it is necessary to disconnect the power supply before handling, and the "automatic reset" (P841) function must be disabled.

Ensure that the output stage is disconnected during maintenance.

Chapter 2: System Overview - Modular Design and Rich Configuration

MOVIDRIVE ®  The MDX60B/61B series offers a variety of sizes from specification 0 to specification 6, with a wide range of power coverage (from 0.55kW to 132kW in the example), and is divided into 400/500V units and 230V units to accommodate different grid and motor requirements.

Core hardware structure:

The structures of various specifications of equipment are similar, but there are slight differences in size and terminal layout, mainly including the following parts:

Power terminal (X1-X4): used to connect the main power supply (L1/L2/L3), motor (U/V/W), braking resistor (R+/R -), and DC bus (- Uz/+Uz).

Control and signal terminal boards (X10, X11, X12, X13, X16, X17): provide binary input/output, analog input (AI1), system bus (SBus), RS485 interface, safety shutdown contacts, etc.

Core component area: includes pluggable memory cards, 7-segment digital display status, DBG60B operation panel interface (X terminal), and DIP switches (S11-S14, used to set analog input type, bus terminal resistance, etc.).

Expansion slot (MDX61B only): Provides encoder slot, fieldbus slot, and expansion slot, with flexible optional DEH11B (HIPERFACE) ®/ Sine/Cosine/TTL Encoder Card, DER11B (Rotary Transformer Card), DIO11B (I/O Expansion Card), and various fieldbus cards (such as Profibus, CANopen, Ethernet, etc.).

Supply scope and options:

The standard supply includes signal and power terminal plugs, memory cards, and shielding clip kits of corresponding specifications. Rich options such as DBM60B (operation panel installation cover), DKG60B (operation panel extension cable), DAT/DAE series conversion adapter (for compatibility with old model devices), etc. greatly facilitate system integration and upgrade transformation.

Chapter 3: Professional Installation - The Foundation for Ensuring Stable Operation

Correct installation is the guarantee for long-term stable operation of equipment, involving mechanical fixation, electrical connection, and EMC compatibility.

Key points for mechanical installation:

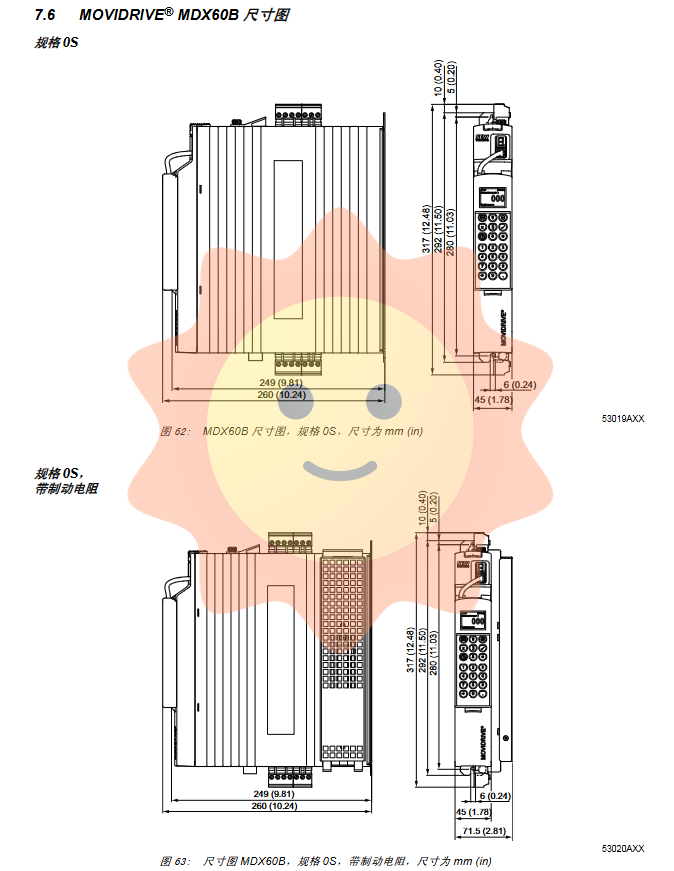

Installation position and gap: It must be installed vertically, with at least 100mm of heat dissipation space reserved above and below, and can be installed side by side. The large-sized equipment (specification 6) is equipped with lifting lugs and load-bearing rods.

Tightening torque: It is necessary to strictly follow the torque requirements of different specifications of terminals (power terminal 0.6 Nm to 20 Nm, control terminal 0.6 Nm) and use original components.

Protective cover: Some specifications provide protective covers, which can increase the protection level after installation (such as specification 2S up to IP20).

Electrical connection specifications:

Cable selection: The cross-sectional area of power and motor wires should be selected according to the rated current. It is recommended to use 0.20-2.5 mm ² single core or 0.25-1 mm ² double core shielded wire for control signal lines.

Grounding and shielding:

Reliable protective grounding (PE) must be ensured.

All cables (except for power supply incoming lines) should use shielded wires, and the shielding layer should be grounded with a large area and low impedance through shielding clamps at the frequency converter end, and the motor end should also be grounded. To avoid forming a grounding loop, it is possible to consider grounding the single end through a Y capacitor.

Strong and weak electrical cables must be laid separately in different cable trays.

Braking resistor connection:

Twisted shielded cables must be used. Except for specific models, external bimetallic relays (F16) or integrated temperature switches (BW... - T type) must be configured for overheating protection.

Warning: When the braking resistor is working, there is high temperature and high DC voltage (about 900V) on its surface and connecting wires. The installation position should be carefully selected (usually located on the top of the cabinet).

EMC compatibility measures:

To meet the Class B radiation limit of EN 61800-3, output reactors (HD...) or output filters (HF...) can be selected, and power filters (NF...) can be installed correctly (close to the frequency converter, with a connection wire shorter than 400mm).

In IT power grid (neutral point ungrounded), insulation monitoring equipment needs to use pulse measurement method, and the effect of power filter will be limited.

Chapter 4: System Debugging - From Parameter Setting to Motor Startup

Debugging is a key step in matching the frequency converter with specific motors and loads.

preparation:

Check the mechanical and electrical installation.

Ensure safety and prevent accidental start-up (such as unplugging X13 plug).

Connection debugging tool: Insert the DBG60B operation panel, or connect with MOVITOOLS installed through UWS21A (RS232) or USB11A converter ® PC with V4.0 or above.

Connect the main power supply and 24V control power supply.

Debugging VFC mode using DBG60B control panel:

Language selection: After powering on, first select the operating interface language.

Enter the debugging wizard: Select "STARTUP PARAMET" from the context menu and choose the parameter group (1 or 2).

Enter key data:

Operation mode selection (such as VFC1).

Motor type (SEW motor or non SEW motor).

Motor nameplate data: rated voltage, rated frequency, connection method. For non SEW motors, it is also necessary to input rated current, power, power factor, and rated speed.

Rated voltage of the main power supply.

TF/TH sensor response settings.

Perform calculation and save: After confirming the data, start automatic calculation, and save the parameters to the frequency converter EEPROM after success.

Speed control debugging (VFC-n-CON): Based on the above, additional settings such as encoder type and resolution, system stiffness, load inertia, and minimum ramp time are required.

Using MOVITOOLS ® Software debugging:

This software provides graphical guides and supports debugging of all operating modes (VFC, CFC, SERVO), with more comprehensive functions, especially suitable for complex applications and IPOSplus ® Programming.

Motor starting method:

Simulation Given: Input analog voltage/current signals through terminal X11 (AI1), and control start stop and speed with binary inputs (enable, direction, quick stop) on X13.

Fixed Given: By combining multiple binary input signals of X13, select fixed speed values (n11, n12, n13, etc.) stored internally.

Manual operation: Control the motor start stop, steering, and speed directly through the DBG60B control panel for easy on-site testing.

VFC&Flying Start: Used for smooth cutting in of rotating motors, requiring precise setting of current compensation parameters (P322).

Chapter 5: Operation Monitoring and Intelligent Maintenance

The device provides rich status display and diagnostic functions.

Running display:

7-segment digital display: displays running status codes (such as "0" not ready, "4" VFC running, "F" fault) and fault/warning codes.

DBG60B operation panel: displays speed, current, status information, parameters, and variable values. Its' user menu 'function allows customization of commonly used parameter lists.

Parameter management:

The equipment has a huge parameter system (P000-P96_), covering all aspects such as set values, slopes, control parameters, motor parameters, monitoring, terminal allocation, communication, etc. DBG60B supports parameter copying function, which can quickly copy the complete parameter set of one device to another device, greatly improving batch debugging efficiency.

Fault diagnosis and handling:

Fault Memory (P080): Stores detailed snapshots of the last 5 faults, including their current status, current, temperature, etc., for easy traceability and analysis.

Fault response classification: divided into "immediate shutdown", "quick stop", and "emergency stop", corresponding to different braking strategies.

Fault reset method: can be powered off and restarted, manually reset through specified binary input signal, or set to automatic reset in software (use with caution).

Detailed fault table: The manual provides fault descriptions, possible causes, and troubleshooting measures from code 00 to 99, which is an authoritative basis for troubleshooting (such as overcurrent, overvoltage, encoder faults, motor overheating, communication timeout, etc.).

The application of memory cards:

The pluggable memory card stores all device parameters and software. When replacing the device, simply insert the original card into the new device (ensuring that the power part and expansion card configuration are the same), and it can quickly resume operation, greatly reducing maintenance time.

Chapter 6: Technical Data and System Integration Options

Overview of Core Technical Parameters:

Environmental temperature: usually 0-50 ° C (100% load), and it needs to be downgraded as the temperature increases.

Protection level: specifications 0-3 are IP20, specifications 4-6 are IP00 (can be increased by adding a cover).

Certification: Possessing international certifications such as CE (Low Voltage Directive&EMC Directive), UL/cUL, C-Tick, etc.

Input/output characteristics: wide voltage input range, adjustable PWM frequency (4/8/12/16 kHz), supporting a wide speed range of -6000~+6000 rpm.

Detailed explanation of key options:

DEH11B/DER11B Encoder Card: Supports HIPERFACE ®、 Multiple encoders such as sine/cosine, TTL, etc. provide+12V power supply, with a maximum cable length of 100m. It can also be used as an incremental encoder for analog output or for master-slave synchronous connection.

DIO11B I/O expansion card: Provides additional analog inputs (AI2), analog outputs (AO1/AO2), binary inputs (DI10-DI17), and outputs (DO10-DO17) to expand control capabilities.

DFC11B CAN bus interface card: provides a second CAN (SBus2) interface with electrical isolation, supporting SEW MOVILINK ® And CANopen protocol.

Braking resistor (BW.../BW... - T): Multiple power and resistance options are available, depending on the specifications of the frequency converter and the braking energy calculation. The - T model has a built-in temperature switch.
