SEW MOVIDYN ® Series servo controller

5/6: Reached positive/negative limit

9: Maintain control activation

b: Not ready

F xx: Fault code (flashing display)

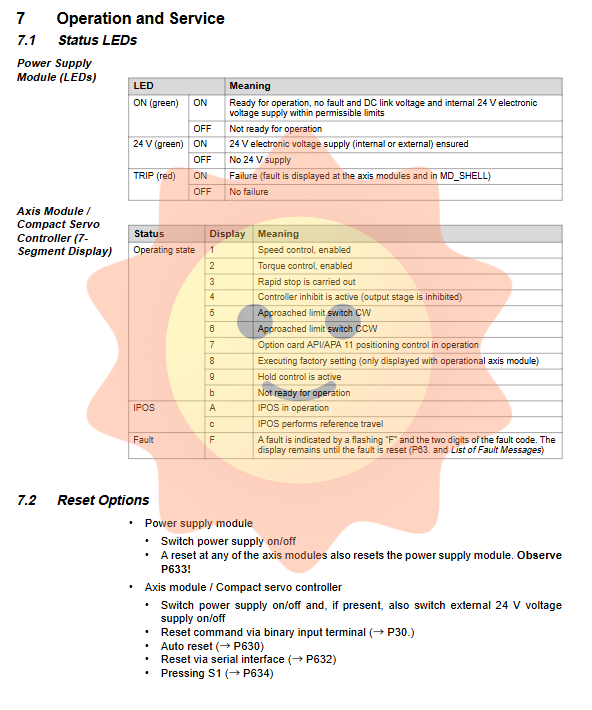

6.2 Fault reset method

Power module: Power off and restart, or reset through any axis module (requires P633 settings)

Axis module/MKS: Power off and restart; Through binary input (P30 configuration reset function); Automatic reset (P630=YES); Serial interface reset (P632=YES); Press the S1 button (P634=ENABLED)

6.3 Analysis of Common Fault Codes

Fault code description, possible causes, and countermeasures

F01 overcurrent motor/cable short circuit, grounding fault, output stage damage eliminate short circuit, if unable to reset, replace module

F03 power module overheating and overload, poor heat dissipation reduce power, improve ventilation

F06 Ground Fault Motor or Cable Short Circuit to Ground Check Insulation Resistance

F07 DC bus overvoltage regeneration energy is too high, brake resistor open circuit check brake resistor wiring, extend deceleration ramp

F08 speed monitoring overload, phase loss, rotating transformer wiring error check load, power phase sequence, and Resolving cable

F14 Rotating Transformer Fault Cable Shielding Defect, Breakage, Short Circuit Inspection Shielding Layer Continuity and Wiring

F27 ES cable missing limit switch not connected and not short circuited. Short circuit X21.7/8 to+24V or reprogram terminal

F31 output short circuit binary output overload (>50mA) check peripheral load

F43 PC control timeout: Communication interruption between PC and axis system. Increase monitoring time or set to 0 in MD_SHELL to close

After the fault occurs, corresponding measures are taken according to the response type (S=immediate shutdown, N=emergency stop ramp, P=programmable). For hazardous applications such as lifting, it is strictly prohibited to enable automatic reset (P630=NO).

Overview of Technical Data

7.1 General Technical Data

Climate category: Complies with EN 60721-3-3, 3K3 level

Protection level: IP20 (EN 60529)

Environmental temperature: 0 ° C~+50 ° C (100% load), if it exceeds 40 ° C, the rating needs to be reduced (3% I-N per K)

Storage temperature: Power on for at least 5 minutes every two years, otherwise it may reduce lifespan

Installation altitude: ≤ 1000 meters without derating; 1000~2000 m, 1% reduction per 100 m

7.2 Power module data (optional)

Model MPB51A027 MPB51A055 MPR51A037

Input current 40 AAC 80 AAC 21 AAC

DC bus voltage 560 VDC (@ 400VAC) same left same left

Rated power 27 kW, 55 kW, and 15 kW

Peak power (5s) 54 kW 110 kW 22 kW (continuous)

Minimum resistance of braking resistor 18 Ω 15 Ω Not applicable

Internal 24V power supply 240 W 240 W 50 W

Weight 7 kg 7 kg 5.5 kg

7.3 Axis module data (optional)

Model MAS51A005 MAS51A015 MAS51A060

Rated output current 5 AAC 15 AAC 60 AAC

Maximum output current (0.3s) 7.5 AAC 22.5 AAC 90 AAC

Weight 3.5 kg 3.5 kg 7 kg

Width (TE) 2 TE 2 TE 4 TE (1 TE=35mm)

7.4 Compact MKS Data

Model MKS51A005 MKS51A015

Input current 4.5 AAC 9 AAC

Rated output current 5 AAC 10 AAC

Minimum resistance of braking resistor 47 Ω 47 Ω

Internal 24V power supply 29 W 29 W

Weight 4.5 kg 4.5 kg

Conclusion

SEW MOVIDYN ®  The servo controller represents a mature design of modular, high-precision drive systems. Through a systematic review of the official manual, it can be seen that the key to successfully applying this series of products lies in:

Strictly follow the mechanical installation specifications, especially the heat dissipation spacing and the conductive connection of the heat sink.

Accurately calculate the 24V power load to avoid system instability caused by internal power overload.

Fully implement EMC compliance measures (input filters, output chokes, dual terminal shielding grounding) to meet CE/UL certification and industrial environment anti-interference requirements.

Correctly connecting the rotary transformer and brake circuit, especially in lifting applications, dual brake cut-off must be used.

Utilize MD_SHELL for parameterized start-up and optimize the stiffness and damping of the speed loop based on actual load inertia.

Proficient in understanding the meaning of fault codes and the reset process, quickly locating problems and restoring production.
