SEW MOVIDRIVE ®  MD-60A Inverter: Professional Technical Analysis from Installation to Startup

In the field of modern industrial transmission and control, SEW-EURODRIVE occupies an important position with its outstanding drive technology. MOVIDRIVE ®  The MD-60A series drive inverters, as its classic product line, are designed specifically for AC asynchronous motors or permanent magnet synchronous motors in industrial and commercial systems. This article is based on the 2001 version of the official operating manual (version: Edition 09/2001, document number: 1053 2617/EN), which deeply analyzes the unit design, installation specifications, wiring configuration, startup process, and technical data of this series of frequency converters. The aim is to provide a detailed and practical technical literature for electrical engineers, system integrators, and maintenance personnel.

Product Overview and Unit Design

MOVIDRIVE ®  The MD-60A frequency converter adopts a modular design and is divided into 5 different physical sizes (Size 1 to Size 5) according to power levels. This design ensures coverage from 0.15 kW small drives to 75 kW large drive applications.

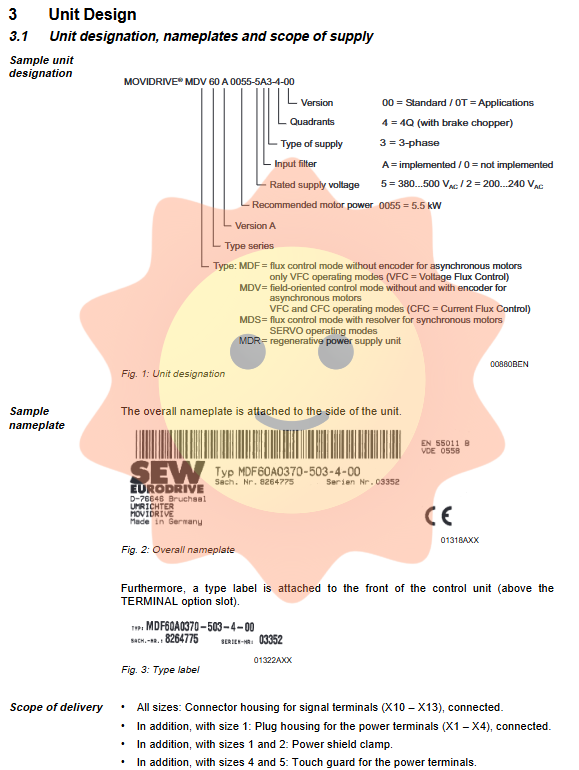

1.1 Unit Naming Rules

According to page 7 of the manual, equipment models such as MD_60A-5A3-4-0 provide key technical features:

MD-60A: Product series code.

5A3 or 2A3: represents the input voltage level (400/500V unit or 230V unit).

Subsequent numbers: such as 0015, representing power level (e.g. 0015 corresponds to 1.5 kW).

1.2 Size Differences and Structural Layout

There are significant differences in the mechanical structure of units of different sizes, mainly reflected in the layout of wiring terminals:

Size 1: Suitable for 0015-0040 of 400/500V units and 0015-0037 of 230V units. This size is equipped with plug-in power terminals (X1-X4) for easy maintenance.

Size 2: Suitable for models such as 0055-0110, with an independent power shielding clip.

Size 3-5: As the power increases (e.g. size 5 corresponds to 0550-0750), the device size significantly increases. For example, size 5 has a width of 280mm, a height of 610mm, and is equipped with a touch guard to ensure safe operation.

All sizes retain a unified control unit structure, including a TERMINAL slot (for DBG11A keyboard or USS21A serial interface), 7-segment code display, and X10 to X13 electronic terminal blocks. The MDV/MDS models are additionally equipped with Sub-D interfaces for X14 (encoder analog/external encoder input) and X15 (motor encoder input).

Safety and Compliance Installation Guidelines

Installation is the first step in the operation of a frequency converter, and Chapter 4 (Installation) of the manual provides extremely strict specifications, especially for UL certification and electromagnetic compatibility (EMC) requirements.

2.1 UL Certification Installation Requirements

For applications that require compliance with UL standards, the following special regulations must be followed:

Cable temperature grade:

MD-60A0015-0300 model: Copper cables with a temperature resistance of 60/75 ° C must be used.

MD-60A0370-0750 model: Copper cables with a temperature resistance of 75/90 ° C must be used.

Terminal torque: The power terminal torque is strictly graded: Size 1 is 0.6 Nm, Size 2 is 1.5 Nm, Size 3 is 3.5 Nm, and Sizes 4/5 is 14 Nm.

Power supply system limitation: only applicable to grounding star points (TN and TT systems). For 400/500V units, the maximum power supply current must comply with the table restrictions (such as the 0015 model being limited to 10000 AAC, 500VAC); UL certification is not applicable for IT systems (ungrounded star points).

2.2 Electromagnetic Compatibility (EMC) and Shielding Installation

Power shield clamp: Sizes 1 and 2 come standard with a power shield clamp. This fixture is used to efficiently fix the shielding layer of motor and brake wires, ensuring that high-frequency interference signals are introduced into the ground wire (PE) through large-area metal contacts, thereby reducing emission interference.

Cable isolation: Power cables and electronic signal cables must be laid separately in different cable trays. If parallel routing cannot be avoided, sufficient spacing must be maintained.

Output Reactor (HD...): In order to maintain the emission limits of Class A or Class B, the manual recommends installing shielded motor cables and HD... output reactors on the motor side. During installation, the three-phase cables must pass through the reactor simultaneously, and the PE line must not pass through.

2.3 Heat dissipation and installation spacing

Minimum gap: To ensure the effectiveness of forced air cooling, at least 100mm of ventilation space must be left at the top and bottom of the equipment. No gap is required on the side, allowing for parallel installation.

Installation direction: The equipment must be installed vertically. It is strictly prohibited to install horizontally, diagonally, or upside down, otherwise it will seriously affect the heat dissipation efficiency and lead to reduced rated operation.

System bus and interface wiring

MOVIDRIVE ®  MD_60A supports multiple communication protocols, among which System Bus (SBus) and RS-485 are the two core networking methods.
