SIEMENS SIMATIC HMI Intelligent Panel

来源: | 作者:FAN | 发布时间 :2025-11-27 | 11 次浏览: | Share:

Automatic backup activated after inserting the system storage card, real-time synchronization of device data, and can be restored by inserting a replacement device in case of failure

Touch screen calibration uses a touch pen to calibrate 5 points, confirm and save within 30 seconds to ensure precise operation


Project commissioning and operation

1. Project transmission and testing

Transmission method:

Manual transmission: Select "Download to device" through WinCC and configure PROFINET/Ethernet channels

Automatic transmission: Used during debugging phase, it is recommended to disable it after commissioning to avoid accidental triggering

Test type:

Offline testing: Communication without controller, verifying interface layout and operational logic

Online testing: Connect the controller to verify measurement value updates, alarm triggering, and communication stability

2. Core operational functions

Numerical input:

Touch sensitive: Pop up on-screen keyboard (alphanumeric/pure numeric), supports range verification

Key press: System key press the phone keyboard logic input, long press to enter numbers

Function key operation:

Global function key: Effective for all projects (such as alarm confirmation)

Local function keys: only effective for the current screen (such as switching between sub screens)

Language switching: Supports up to 32 languages, requires configuration of corresponding operating components, and takes effect immediately after switching


Maintenance and Technical Specifications

1. Daily maintenance requirements

Cleaning: Turn off the power or lock the touch screen, wipe with a cloth dipped in neutral cleaner, and avoid solvents such as compressed air and alcohol

Spare parts replacement: Only use Siemens certified spare parts (such as assembly clips, memory cards), and contact official technical support for any malfunctions

Recycling and disposal: processed by compliant electronic waste recycling enterprises, in compliance with local environmental regulations

2. Key technical parameters (taking TP1500 Comfort V2 as an example)

Project specifications

Display screen with 15 "TFT, 1280 × 800 resolution, 16 million colors, backlight life of 50000 hours

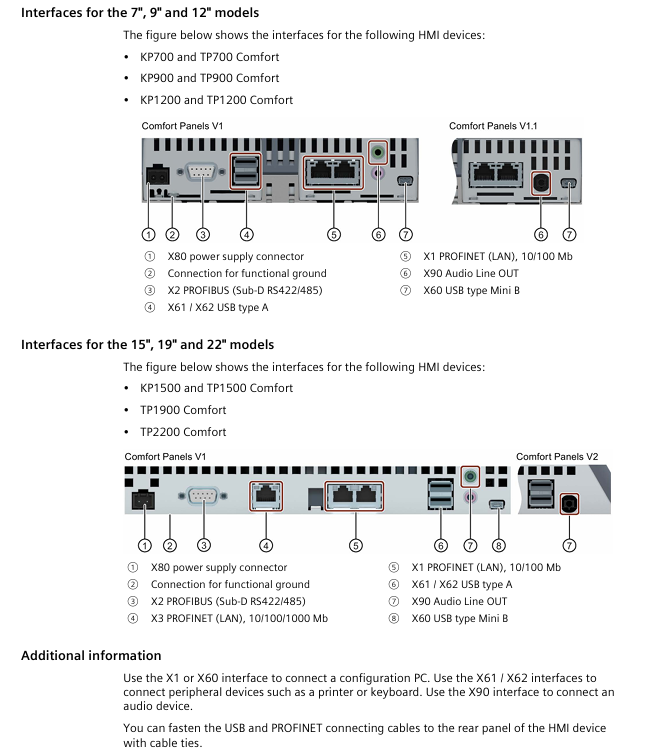

Communication interface 2 x PROFINET (1 x 10/100Mbps, 1 x 10/100/1000Mbps), 1 x PROFIBUS DP

Power supply 24VDC, current 1.7A (load related 1.45-2.1A), power 41W

Working temperature 0-50 ℃ (horizontal), 0-40 ℃ (inclined at 35 ° C)

Protection level: IP65 on the front and IP20 on the back
