Product Overview and Classification

1. Equipment type and size

Equipment type, size specifications, representative model (part number example), operating method

KP (button type) 4 "6AV2124-1DC01-0AX0 only has physical buttons

KP (button type) 7 "/9"/12 "/15" 6AV2124-1GC01-0AX0 (7 ") only has physical buttons

TP (Touch sensitive) 7 "/9"/12 "/15"/19 "/22" 6AV2124-0GC01-0AX0 (7 ") Touch screen only

KTP (composite) 4 "6AV2124-2DC01-0AX0 button+touch screen

2. Differences in hardware versions

Version size range, operating system core differences

Comfort V1 4 "-22" Windows CE 6 with dual audio sockets and Mini-B USB interface

Comfort V1.1 7 "-12" Windows CE 6 with audio output only, Mini-B USB interface

Comfort V2 15 "-22" Windows Embedded Compact 2013 without Mini-B USB interface, performance improvement

3. Core hardware features

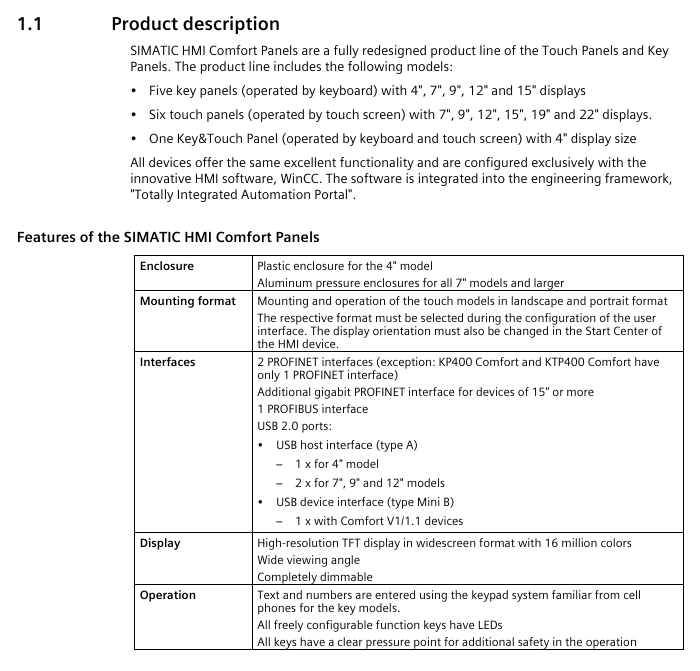

Display screen: 16 million color TFT widescreen, resolution 480 × 272 (4 ") -1920 × 1080 (22"), backlight life 30000-80000 hours

Communication interface:

PROFINET：10/100Mbps（4"-12"）、10/100/1000Mbps（15"-22"）， Support circular topology

PROFIBUS DP: Maximum transmission rate of 12Mbps, RS422/485 interface

USB: Type A (peripheral devices), Mini-B (debugging, V2 not available)

Protection level: IP65 on the front (after installation), IP20 on the back

Safety regulations and usage restrictions

1. Warning level and meaning

Example scenario of warning sign meaning

Danger (DANGER) Failure to take measures may result in death/serious personal injury. When the cabinet is electrified, it may open and come into contact with lethal voltage

Warning: Failure to take measures may result in death/serious personal injury. In explosion-proof areas, live plug and unplug connectors may cause explosions

Caution (CAUTION) Failure to take measures may result in minor personal injury, sharp objects scratching the touch screen

Caution: Failure to take measures may result in property damage, failure to follow the connection sequence, and equipment damage

2. Key safety requirements

Electrical safety: Only supports 24VDC power supply (voltage range 19.2V-28.8V) and must comply with SELV/PELV circuit requirements (IEC/EN 61131)

Use in explosion-proof areas:

Only Ex certified models are available for Zone 2/22 zones

Do not plug or unplug connectors or memory cards with power on

Ensure that the plug is secure against loosening (such as fixing the USB interface with a cable tie)

Environmental restrictions:

Only for indoor industrial use, prohibited for use in residential areas

Avoid high radio frequency interference (such as mobile phones), corrosive gases, and strong electromagnetic radiation

Equipment installation and connection

1. Key parameters for installation preparation

Prepare project requirements remarks

Installation opening size 4 "(KTP400): 122 × 98mm; 7" (TP700): 197 × 141mm, etc. Vertical installation requires exchanging width and height

Material thickness of 2mm-6mm ensures protection level of IP65

The heat dissipation gap should be ≥ 15mm on both sides, ≥ 50mm on the top and bottom, and ≥ 10mm on the back to avoid equipment overheating

Installation tilt angle: horizontal ± 35 °, vertical ± 35 ° (touch only). The 7 "-15" model can be extended to 40 ° under specific conditions

2. Connection sequence and specifications

Equipotential bonding: Use copper/galvanized steel wires with a cross-sectional area of ≥ 16mm ², and the wire between the grounding bar and the equipment should be ≥ 4mm ²

Power connection:

The power plug supports a maximum of 1.5mm ² wire and a torque of 0.5-0.6Nm

Equipped with reverse polarity protection to prevent damage to equipment caused by reverse connection

Controller connection:

Support SIMATIC S7-200/300/400/1200/1500 and third-party controllers (such as Allen Bradley)

PROFINET requires a unique device name to be configured, and PROFIBUS requires a bus address (1-126) to be set

Peripheral device connection:

USB devices (mouse/keyboard/printer): wire length ≤ 1.5m, USB 2.0 or above certification

Audio equipment: Connected through Line Out interface, production environment requires shielded cables

Equipment debugging and configuration

1. Core debugging function

Memory management:

Memory: stores OS, project files, licenses, prohibits circular write access

SD/MMC card: Recommended SIMATIC HMI storage card (≥ 2GB) for data archiving and backup

System memory card: only SIMATIC HMI card (≥ 2GB), supports automatic backup, quick fault recovery

Control panel settings:

Display settings: brightness (25% -100%), screen orientation (horizontal/vertical), touch screen calibration

Network settings: IP address (static/DHCP), PROFINET device name, NTP time synchronization

Security mode: Password protected control panel to prevent unauthorized modifications

2. Service and maintenance functions

Key points of functional operation

Backup/restore supports WinCC or ProSave tools, backup file format *. psb, including project, recipe, license

OS updates require external storage media or configuration PC, and automatic backup must be disabled before updating to avoid data loss
