XYCOM 1547 Heavy-Duty Industrial PC without Integrated Display

来源: | 作者:FAN | 发布时间 :2025-07-16 | 169 次浏览: | Share:

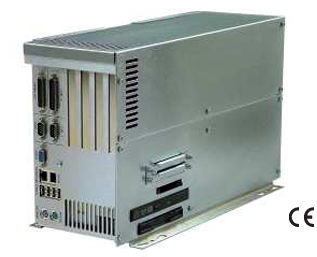

XYCOM 1547 Heavy-Duty Industrial PC without Integrated Display
Xycom Automation's newest generation of industrial PCs are designed and tested for the tough environments required for plant floor use. Our standard PC configurations meet the strict specifica tions required for use in hazardous locations and Europe's CE mark.Based on CPU boards designed specifically for industrial automation,these systems provide the capabilities required by demanding appli cations. With an installed base of over 300,000 systems, our indus trial PC products are successfully applied in manufacturing and process environments world-wide.

Higher Performance,Lower Power

The 1547 utilizes an Intel mobile processor providing superior processing power while utilizing half the wattage of a comparable Pentium 4 processor. The
optional Pentium M 2.0 GHz processor(2 M Cache & 533 MHz system bus)outperforms a desktop Pentium 4,2.4 GHz (512 K Cache & 533 MHz bus)while utilizing less than half the wattage.
The increased processing power with less heat generation makes the 1547 ideal for most factory automation applications requiring a NEMA enclosure. Less wattage input into the system results in less temperature rise in the enclosure. With less temperature rise the maximum ambient operating temperature is more
easily maintained, possibly without the need for expensive enclosure cooling devices.

Superior Video

Performance
The on-board 4X AGP graphics controller defaults to 4 MB system RAM to allow resolutions up to 1280 x 1024. In addition the 1547 automatically shares up to 32MB system RAM to allow full 32-bit color depth and fast 3D rendering.
Fits Your Needs
The 1547 can be configured many different ways.  With four available expansion slots many cost effective,industry standard options are easily integrated. The optional dual hard drive,externally accessible CompactFlash, or RAID-enabled configuration provides the storage solution you require. Additionally the CD-ROM can be upgraded to CD-R/W or DVD-R/W providing even more storage and backup options.

Meets High Standards

To survive on the plant floor the 1547 meets FCC, UL, cUL, and European CE mark requirements for industrial automation equipment. Xycom Automation Industrial PCs lead the industry in reliability, service, and support with an optional five year warranty available.
SERVICEABILITY
With the cover removed expansion cards are easily installed in the 1547 without cumbersome cables to contend with.

EASILY REPLACEABLE HARD DRIVE

The 1547 unit has incorporated a simple to access hard drive mount. Simply loosen 2 captive screws and extract the hard drive. No cables to install or connect. Simply plug in the new drive. Optional dual hard drives or RAID-enabled configura tions are also available
STORAGE OPTIONS
The 1547 offers several data storage options. The standard unit contains a single Serial ATA hard drive.Dual hard drives are optional, as is a RAID-enabled configuration. Also, the externally accessible TypeI/II CompactFlash can be ordered with the operating system pre-loaded for a solid state alternative. The 1547 offers a read-only CD-ROM, a CD-R/W with DVD-Read capability, a DVD-R/W, or a floppy for your choice of removable media drives. In addition, the 4 USB 2.0 ports can be utilized to add many commercially available external devices
