Xycom 5019T-SER Operator Interface Screen Monitor

来源: | 作者:FAN | 发布时间 :2025-07-16 | 138 次浏览: | Share:

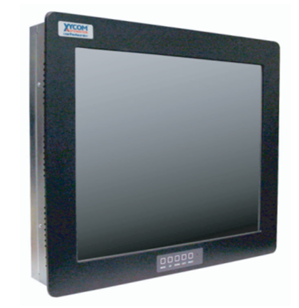

Xycom 5019T-SER Operator Interface Screen Monitor
Xycom Automation’s new 5019T (19") is the latest addition to the high performance, yet cost-effective, 5000 Series of Industrial Flat Panel monitors. With its two-year warranty and state-of-the-art electronics, the 5019T delivers superb display quality up to 1280 x 1024 (SXGA) resolution with a color depth of 16 million colors and analog resistive touch screen with serial or USB interfaces. The latest generation scaling capability assures high quality, full size
images for all standard VESA modes up to SXGA @ 75Hz. Options include 24V DC input power and stainless steel front bezels. The 5019T is certified for NEMA 4/4X/12 environments and meets UL Hazardous Location Class I & II, Division 2 requirements.

Superb Display Quality

The 5019T (19") delivers superb display quality up to 1280 x 1024(SXGA) resolution with a color depth of 16 million colors and touchscreen with either RS-232 or USB interface. Options include 24V DC input power and stainless steel bezel.

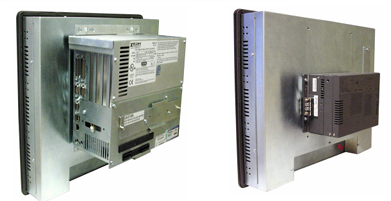

Convert Your 5019 to a Computer Workstation
The 5019T is designed to allow a Xycom 1300 Thin-CLIENT or 1506 Node PC to be mounted on the rear of the monitor. Just bolt the node to the back of the monitor, attach the cables, and your 5019T becomes a computer workstation.

Fits Your Needs

Other features include Hazardous Location - UL Class I & II, Division 2 compliance; 100mm VESA arm mount provision; and front panel controls, with rear "lock-out" switch,for convenient set up and adjust ment. Special mounting clips make the installation of the flat panel monitor quick and simple.
The 5019T offers VGA video input and Digital Video Input (DVI). All units are shipped with 10-foot VGA and serial cables (DVI cables must be ordered separately). A field wireable input power receptacle is provided for connection to AC power


FEATURES

• 2 year warranty on all 5000 Series monitors
• State-of-the-art TFT SXGA color LCD and converter card supporting resolutions up to 1280 x 1024 @ 75Hz,16 million colors
• Sophisticated scaling engines produce excellent full screen images in all common VESA modes automatically
• Analog resistive touch screen and driver software with choice of RS-232 or USB interface
• Analog Video (VGA) & Digital Video Input (DVI)

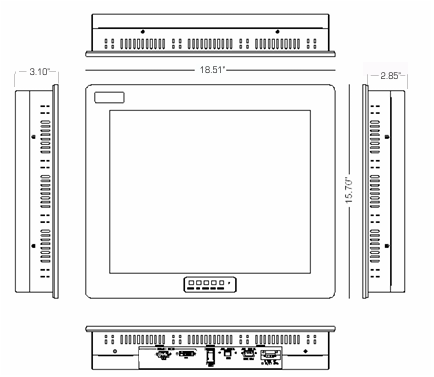

• Shallow mounting depth - only 2.85 inches deep
• Provision on the back of the monitor for a 100mm VESA mounting arm, or for mounting a 1300 Thin CLIENT or 1506 Node PC
• Simple installation using mounting clips - no studs
• 24V DC input power option
• Optional stainless steel bezel
• Up to 50' cables (VGA & Serial touchscreen only)- DVI Cables limited to 10' (3m) maximum- USB Touchscreen Cables limited to 16' (5m) maximum
• Ships standard with 10' VGA, 10' Serial RS-232, & USB Cables
• Front panel OSD controls, with rear lock-out switch
• NEMA 4/4X/12 front panel
• UL listed for Hazardous Locations:
Class I, Division 2, Groups A, B, C, D;
Class II, Division 2, Groups F and G;
Temp. Code: T4A
DISPLAY SPECIFICATIONS
Model 5019T
Display Size
(Active Area H x W) 14.82” (376.32 mm) x  11.85” (301.056 mm)
Resolution
(1 pixel = R+G+B dots) SXGA: 1280 x 1024
Display Colors 16 million
Brightness 300 Nit Typical
Contrast Ratio 700:1 Typical
Horizontal Viewing Angle 80° Typical
Vertical Viewing Angle 80° Typical
Backlight Life 50,000 Hours

Order Number

19-inch NEMA 4/4X/12 SXGA (1280 x 1024), 16-million color Class I Div 2, Class II Div 2, color panel mount monitor with analog resistive touch screen and AC power input. Includes 10' VGA cable and 10' RS-232 & USB touchscreen cable, wireable AC input  power receptacle, mounting hardware and documentation.
Description
3000-CBL-03V 3’ (1 m) coaxial VGA cable; connects monitor to standard VGA card
3000-CBL-10V 10’ (3 m) coaxial VGA cable; connects monitor to standard VGA card
3000-CBL-25V 25’ (7.5 m) coaxial VGA cable; connects monitor to standard VGA card
3000-CBL-50V 50’ (15 m) coaxial VGA cable; connects monitor to standard VGA card
CBL-SER03MF 3’ (1 m) serial communication cable, male to female
CBL-SER10MF 10’ (3 m) serial communication cable, male to female
CBL-SER25MF 25’ (7.5 m) serial communication cable, male to female
CBL-SER50MF 50’ (15 m) serial communication cable, male to female
CBL-USB-03AB 3’ (1 m) USB cable, type A to B
CBL-USB-10AB 10’ (3 m) USB cable, type A to B
CBL-USB-16AB 16’ (5 m) USB cable, type A to B
CBL-DVI-10MM 10' (3m) DVI video cable, connects monitor to DVI VGA card
