ABB 1TGE120011R1000 motor and feeder control unit

ABB 1TGE120011R1000 motor and feeder control unit

Product core positioning and basic information

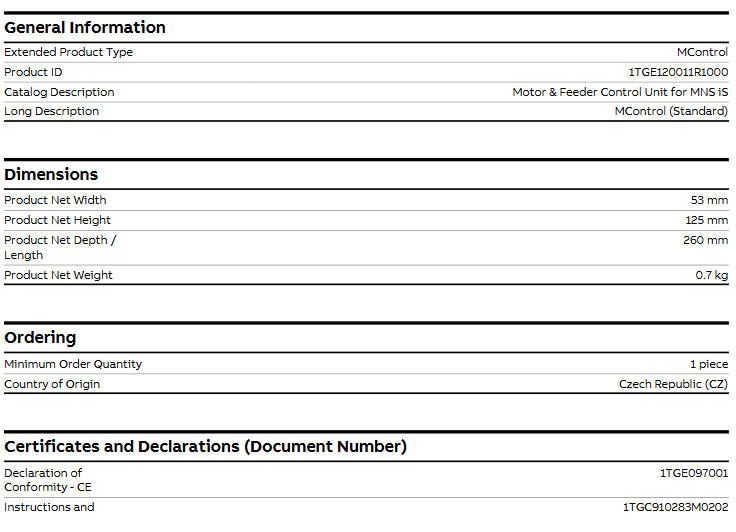

Product Name: MControl Motor&Feeder Control Unit

Adaptation System MNS iS (Low Voltage Motor Control Center Related Systems, Belonging to the IEC Low Voltage Product Category)

Product type: Standard type MControl（Extended Product Type：MControl；Long Description：MControl (Standard)）

Product ID/Model 1TGE120011R1000

Product Classification: Low Voltage Products and Systems - Low Voltage Systems - IEC Low Voltage Motor Control Centers - MNS iS

WEEE (Electronic Waste) is not within the scope of WEEE control (Product Not in WEEE Scope)

Physical specifications and weight

The control unit is compact in size, lightweight, and suitable for the spatial installation requirements of industrial equipment

Product net width: 53mm

Product net height: 125mm

Product net depth/length: 260mm

Net weight of product: 0.7kg

Compliance certification

CE conformity declaration: The corresponding document number is "1TGE097001", indicating that the product complies with the relevant standards of the EU CE certification and can be used in compliance with the EU and regions that recognize the CE mark.
