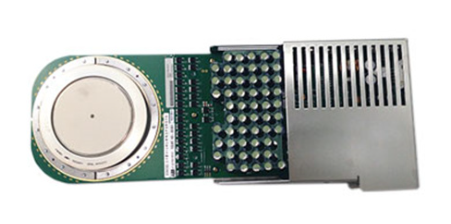

ABB 5SHX08F4502 IGCT thyristor module

ABB 5SHX08F4502 IGCT thyristor module

Product Overview

ABB 5SHX08F4502 is an integrated gate commutated thyristor (IGCT) module, which is a key component for achieving high-performance power control in the fields of industrial automation and power systems. It cleverly integrates the advantages of IGBT (Insulated Gate Bipolar Transistor) and IGCT technology, and performs excellently in voltage and current processing, switching speed, and power management, providing reliable and efficient solutions for harsh industrial application scenarios.

Technical principles and core characteristics

Advantages of IGCT technology: IGCT, as an advanced power semiconductor device, combines the high voltage and high current carrying capacity of thyristors with the fast turn off characteristics of transistors. The 5SHX08F4502 module utilizes IGCT technology and can operate stably under high voltage and high current conditions. For example, in high-voltage direct current transmission (HVDC) systems, it can withstand voltages of up to thousands of volts and currents of hundreds of amperes, ensuring efficient power transmission and precise control. It can also achieve fast shutdown with shutdown times as low as microseconds, greatly improving system response speed, effectively reducing switch losses, and enhancing power conversion efficiency.

High power density design: This module adopts a compact high power density design, integrating powerful power processing capabilities in a limited space. By optimizing the internal circuit layout and heat dissipation structure, higher power output per unit volume has been achieved. Compared to traditional thyristor modules, its power density can be increased by 30% -50%, which has significant advantages in space limited industrial equipment and power devices. For example, in subway traction converters, it can meet high-power requirements with a smaller volume, while reducing the overall weight of the equipment and lowering installation and maintenance costs.

Efficient heat dissipation mechanism: equipped with advanced heat dissipation system, the module adopts special heat dissipation materials and heat dissipation structure design inside. For example, using a ceramic substrate with high thermal conductivity and an optimized heat sink fin structure can quickly dissipate the heat generated during module operation. Under full load operation, the module junction temperature can be controlled within a safe range, ensuring long-term stable operation, extending the module's service life, and improving system reliability. According to testing, under the same working conditions, its junction temperature can be reduced by 10-15 ℃ compared to ordinary modules.

Performance parameters

Voltage and current parameters: With a rated voltage of up to 4500V, it can meet the needs of various high-voltage application scenarios; The rated current is 800A, capable of driving high-power loads. In some large industrial motor drive systems, it is easy to cope with high current surges during motor start-up, ensuring smooth motor start-up and operation.

Switching frequency: The switching frequency can reach 50kHz, suitable for applications that require high switching speed, such as high-frequency induction heating equipment. In such devices, high switching frequency can make the heating process more precise and efficient, improving heating quality and production efficiency.

Conduction voltage drop: The conduction voltage drop is relatively low, with a typical value of 1.8V. A lower conduction voltage drop means that when the current is conducting, the power loss of the module itself is smaller, which helps to improve the energy utilization efficiency of the entire system. Taking an application scenario with a current of 1000A as an example, compared with similar products with high conduction voltage drop, it can save about 0.5-1 kWh of electricity per hour.

Application Fields

Industrial automation: Used in industrial automation production lines to control high-power motors such as water pumps, fans, compressors, etc. Taking the control of large-scale fans in a steel plant as an example, the 5SHX08F4502 module is used to accurately control the speed and operating status of the fan motor, achieving real-time adjustment of air volume according to production needs, while ensuring production process requirements and reducing energy consumption. According to actual case statistics, using this module for fan control can reduce energy consumption by 15% -20%.

Power system: In the field of high-voltage direct current transmission in the power system, as a key converter device, it achieves efficient conversion between alternating current and direct current, ensuring long-distance and high-capacity transmission of electricity. Meanwhile, in the Static Var Compensator (STATCOM), it is used to regulate the reactive power of the power grid, stabilize the grid voltage, and improve the quality of electrical energy. In the STATCOM project of a certain city's power grid, the use of this module reduced the voltage fluctuation range from ± 5% to within ± 2%, effectively improving the stability of the power grid.
