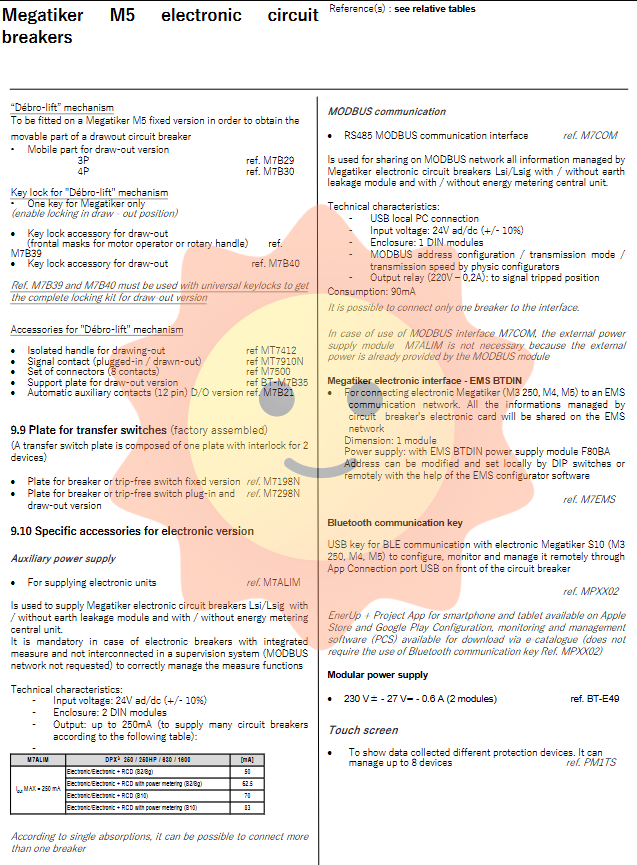

BTicino Megatiker M5 electronic circuit breaker

MODBUS communication interface

Model: M7COM

Input voltage: 24V AC/DC (± 10%)

Installation method: 1 DIN module

Function: Share circuit breaker data to MODBUS network

Features: Built in external power supply, no need for additional M7ALIM

Bluetooth communication key

Model: MPXX02

Function: Configure, monitor, and manage through the mobile app (EnerUp+Project)

Touch screen display unit

Model: PM1TS

Function: Display electrical parameters of up to 8 protective devices

Installation method: Panel or cabinet door installation (96 × 96 mm)

8. Mechanical accessories

Padlock: M7055, used to lock in the "off" position

Interphase insulation partition: M7695 (12 × 2 pieces)

Terminal protective cover: M7935 (3P), M7936 (4P)

IP20 terminal cover: M7C13 (3P), M7C14 (4P), M7X39 (external neutral wire)

9. Mechanical interlocking

Fixed interlocking board: M7198N

Insertion/extraction interlocking board: M7298N

10. Universal key lock

Support locking of rotating handle, electric operating mechanism, insertion mechanism, and extraction mechanism:

Lock cylinder type and model

Randomly encoded flat key M7K01

Fixed code EL43525 M7K02

Fixed code EL43363 M7K03

Randomly encoded star key M7K04

Release curve

The M5 electronic circuit breaker provides multiple trip curves for system coordination and design.

1. Long delay trip curve (Li/Lsi/Lsig)

Display the inverse time characteristic of overload protection (L)

Tr adjustable range: 3s to 30s (7-speed)

Curve varies with Ir and Tr settings

2. Short delay trip curve

Display the delay characteristics of short-circuit protection (S)

Tsd adjustable range: 0 to 500 ms

Optional I ² t=K or t=K characteristics

3. Instantaneous release curve

Fixed instantaneous trip value: 15kA (500-1250A)/20kA (1600A)

Ensure rapid response to extremely high short-circuit currents

4. Through the energy curve (I ² t)

Display the allowable conduction energy under different expected short-circuit currents

A lower I ² t value means better protection for downstream equipment

5. Peak current cut-off curve

Display the peak current that the circuit breaker can limit in the event of a short circuit fault

Intuitively reflect the current limiting performance of circuit breakers

Compliance and Certification

The Megatiker M5 series products comply with the following standards and regulations:

Product standard: IEC/EN 60947-2

International certifications: IECEE CB certification, LOVAG certification

Regional certification: CCC (China), EAC (Eurasian Union)

Ship certification: Lloyd's Register, RINA, Bureau Veritas Marine

Environmental directives: REACH, RoHS, WEEE (RAEE)

Environmental Product Declaration: PEP Ecopassport is available

The product label clearly indicates manufacturer information, model code, standard compliance, breaking capacity level (identified by color), barcode and other information for easy on-site identification and traceability.

Application scenarios and selection suggestions

1. Typical applications

Main incoming distribution: main incoming cabinets for factories, commercial buildings, and data centers

Large scale power distribution: Distribution circuits for large equipment

Generator protection: Generator set outlet protection

Transformer protection: Main protection on the low voltage side of the transformer

ATS system: main switch in the automatic switching system of main and backup power supply

2. Key selection points

Rated current: Choose specifications from 500A to 1600A based on the load current

Breaking capacity: Select F/N/H/L level based on system short-circuit current

Protection type: Choose Li, Lsi or Lsig, do you need ground fault protection

Measurement requirement: Is it necessary to integrate power measurement function

Communication requirements: Do you need MODBUS communication and remote monitoring

Installation method: fixed or pull-out

Attachment requirements: auxiliary contacts, shunt release, electric operation, rotating handle, interlock, etc

Environmental conditions: Temperature, altitude, humidity need to be considered for capacity reduction
