ABB electronic timer CT-APS.22

ABB electronic timer CT-APS.22

Basic characteristics of the product

Function: Single function delay shutdown timer with 2 conversion contacts (2 c/o contacts).

Power supply voltage: Supports 24-48 V DC and 24-240 V AC.

Time Range: 10 time ranges are available, covering 0.05 s to 300 h. The time range can be pre selected by rotating the switch, and the front-end potentiometer has a direct reading scale for fine adjustment.

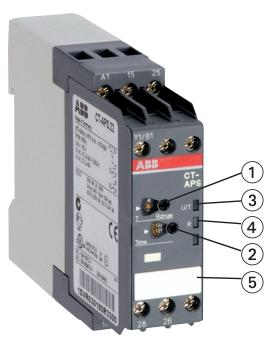

Status indication: 2 LED indicator lights, green LED (U/T) displays the control power supply voltage application and timing status (flashing during timing), yellow LED (R) displays the output relay power status.

Size: Width 22.5 mm, compact design.

Protection function: Optional sealable transparent cover (COV.01) to prevent unauthorized changes to time values; Integrated Tag Label (MAR.01).

Certification: Passed UL 508, CAN/CSA C22.2 No.14, GL, GOST, CB scheme, CCC and other certifications, with CE and C-Tick marks.

Working mode and function

Delay shutdown function: Continuous control of power supply voltage timing is required. When the control inputs A1-Y1/B1 are closed, the output relay is immediately powered on; When the input is disconnected, there is a delay and the green LED flashes; After the delay is over, the output relay will be powered off and the green LED will remain on. If the input closes again before the delay ends, the delay will reset and the output relay status will remain unchanged; When the control power supply is interrupted, the output relay will be powered off and reset with a delay.

Terminal description: The first conversion contact is 15-16/18, the second is 25-26/28, the control power is connected to A1-A2, and the control input is A1-Y1/B1.

Technical Parameter

Input circuit:

Control power supply voltage tolerance: 24-48 V DC is -15...+10%, 24-240 V AC is -15...+10%.

Typical current/power consumption: 16 mA at 24 V DC, 60 mA at 24-48 V DC (as needed), 36 mA at 115 V AC (as needed), etc.

Frequency range (AC): 47-63 Hz.

Power failure buffer time: 24 V DC minimum 15 ms, 230 V AC minimum 20 ms.

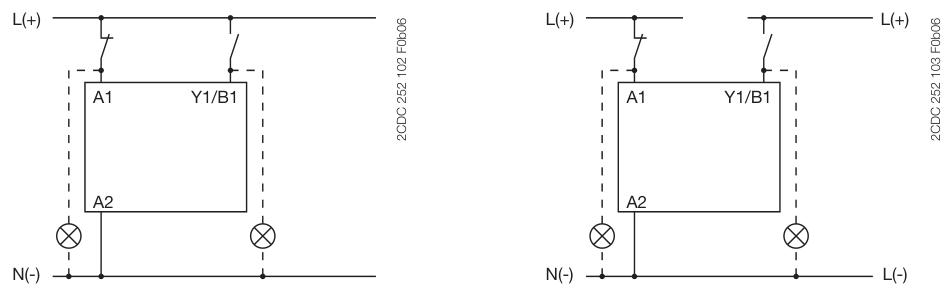

Control circuit: The control input is voltage dependent trigger, anti reverse polarity, non polarized, switchable parallel load, maximum cable length of 50 m (100 pF/m), minimum control pulse length of 20 ms, control input current of 1.2 mA at 24 V DC and 8 mA at 230 V AC.

Timing circuit: Recovery time<80 ms, repeatability accuracy (constant parameter) Δ t<± 0.2%, accuracy within voltage tolerance Δ t<0.004%/V, accuracy within temperature range Δ t<0.03%/° C.

Output circuit: rated working voltage of 250 V, minimum switching voltage/current of 12 V/10 mA, AC rated working current (IEC/EN 60947-5-1) AC12 (230 V, resistive) 4 A, AC15 (230 V, inductive) 3 A, DC rated working current DC12 (24 V, resistive) 4 A, DC13 (24 V, inductive) 2 A; mechanical life of 30 × 10 ⁶ switching cycles, electrical life (AC12230 V, 4 A) 0.1 × 10 ⁶ times; The maximum rated value of the short-circuit protection fuse is 6 A for normally closed contacts and 10 A for normally open contacts.

General data: Duty cycle 100%, dimensions (width x height x depth) 22.5 × 78 × 100 mm, weight 0.128 kg, installation position arbitrary, minimum distance from other equipment not required during normal operation, installed on DIN rail (IEC/EN 60715), enclosure/terminal protection level IP50/IP20.

Electrical connection: Screw connection, wire specification (fine stranded wire with wire end sleeve) 2 × 0.75-2.5 mm ² (2 × 18-14 AWG), wire stripping length 7 mm, tightening torque 0.6-0.8 Nm.

Environment and Isolation Data

Environmental data: working environment temperature -25...+60 ° C, storage environment temperature -40...+85 ° C, withstand 6 × 24-hour cycles of humidity and heat (55 ° C, 95% RH); The tolerance to vibration, impact and other environmental factors meets relevant standards.

Isolation data: rated insulation voltage of output circuit 300 V, input/output circuit 500 V; power frequency withstand voltage test (routine/type) 2.0 kV (50 Hz, 1 s)/2.5 kV (50 Hz, 1 min); Basic insulation (input/output) 500 V, protective isolation 250 V; pollution level 3, overvoltage category III.

Standards and Compatibility

Compliant with product standards such as IEC 61812-1, EN 61812-1+A11, as well as directives such as EMC, low voltage, RoHS, etc.

In terms of electromagnetic compatibility, both anti-interference and interference emission comply with relevant standards and level requirements.
