YOKOGAWA DLM3034HD/DLM3054HD High Definition Oscilloscope

Search function: Based on rectangular area, waveform area, polygon area or parameter setting search conditions, supports AND/OR logic, and displays a list of detected waveforms and timestamps.

Playback function: Play back historical waveforms at a specified speed (x1/60 to x10), supporting playback starting from the earliest/latest waveform.

8. Data storage and output

(1) Printing and screen saving

Output target: Built in printer (option), USB printer, network printer, file (PNG/BMP/JPEG format), supports simultaneous output of multiple targets (Multi mode).

Print settings: Print mode (with/without menu), color (color/black and white/grayscale), whether to include setting information, file saving supports automatic naming (serial number/date) and custom file name.

(2) Data saving and loading

Save data types: waveform data (binary/ASCII/ASCII with time information), set data (saved to file or internal memory # 1- # 3), screen image, waveform area data, snapshot data, automatic measurement data, serial bus analysis results, FFT data, histogram data, timestamp list.

Storage devices: internal storage (Flash_Sem), USB storage devices, network drives, supporting file renaming, copying, protection settings, loading data supports waveform, settings, waveform area and other types.

9. Other functions

System settings: AUTO SETUP, DEFILT SETUP, SNAP SHOT to save current waveform, Calibration, Remote Control, system configuration (such as touch screen settings).

Network functions: Supports TCP/IP, FTP server, email sending (sending email notifications when triggered), network drive, network printer, SNTP time synchronization.

Synchronization operation (DLMsync, option): Supports multiple oscilloscopes to work synchronously, expand channels, or increase sampling rates.

Precautions

Safe operation: In DC50 coupling mode, the input impedance is 50 Ω and the maximum input voltage is small, so caution should be exercised during operation; The demagnetization and zeroing of the current probe require disconnecting the conductor to avoid damaging the equipment.

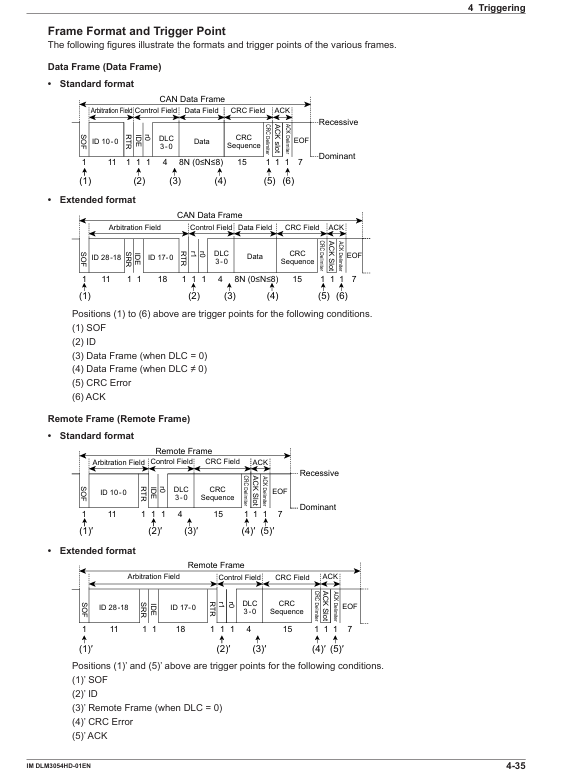

Performance limitations: Long record lengths may result in slower calculation and measurement speeds; Partial functions (such as serial bus triggering and user-defined calculations) are optional and require confirmation of instrument configuration.

Data management: When automatically naming files, attention should be paid to the storage device format (FAT16/FAT32/exFAT) to limit the number of files and avoid duplicate file names causing save failures.

Software compatibility: The Yokogawa IS8000 software can be used to analyze waveforms on a PC, which needs to be obtained through the official website; CANdb files need to be converted to. sbl files in order to be used for symbol display.
