Eaton XV-102 HMI Installation and Troubleshooting

Eaton XV-102 Human Computer Interface: A Complete Guide from Installation Specifications to On site Troubleshooting

In industrial automation sites, human-machine interface (HMI) is the core bridge between operators and control systems. Eaton's XV-102-L series touch screens are widely used in the field of machine and system manufacturing due to their compact design, rich communication interfaces, and wide temperature operating range. However, proper installation, standardized electrical connections, and troubleshooting of the system are key to ensuring long-term stable operation of the equipment. This article is based on the official technical information of the XV-102 series hardware, providing on-site engineers with a complete operation guide from unboxing to troubleshooting.

Safety and selection preparation before installation

Before installing XV-102, it is necessary to first confirm that the equipment meets the expected usage environment and safety requirements. This series of touch screens is only allowed to be used in non hazardous areas (or ATEX Zone 22) and is strictly prohibited from being used for personal safety related protective functions.

1.1 Personnel Qualifications and Safety Standards

Installation, wiring, and maintenance work must be carried out by qualified electrical professionals. Before operation, the power supply of the equipment must be disconnected and measures must be taken to prevent reconnection (such as padlocks, markings). At the same time, operators should release body static electricity by touching grounded metal objects to avoid damaging the static sensitive components inside the equipment.

1.2 Installation location and environmental conditions

XV-102 adopts a plastic shell, with a front panel protection level of IP65/NEMA 4X (indoor use only) and a back panel protection level of IP20. Attention should be paid during installation:

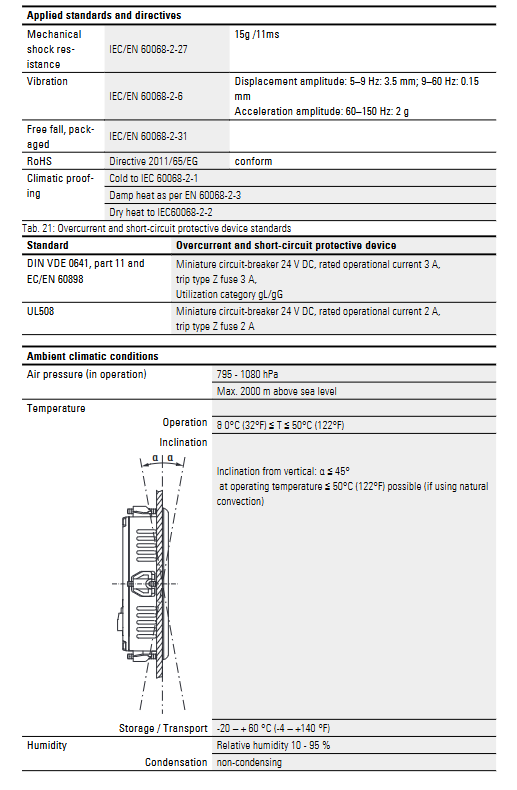

Environmental temperature: Operating temperature from 0 ℃ to 50 ℃ (32 ° F to 122 ° F); Storage/transportation temperature -20 ℃ to+60 ℃.

Humidity: Relative humidity of 10% to 95%, no condensation.

Altitude: up to 2000 meters.

Avoid UV rays: Plastic shells will become brittle when exposed to direct sunlight for a long time, so sunshades should be installed or light sources should be avoided.

Heat dissipation: The device adopts natural convection passive heat dissipation, and a ventilation gap of at least 30mm should be reserved around it, without blocking the air vents.

Mechanical installation: drilling and fixing

XV-102 supports horizontal or vertical installation, but the SD card slot is located on the side. If the card slot is facing downwards during vertical installation, it may cause the card to slide out. This direction should be avoided.

2.1 Installation hole size

According to different screen sizes, the opening sizes are as follows (in millimeters, with a tolerance of ± 1):

3.5 "Model: Width 123 x Height 87

5.7 "Model: Width 157 x Height 117

7.0 "Model: Width 197 x Height 122

The installation panel thickness requirement is 2mm~5mm (0.08 "~0.2"), flatness ≤ 0.5mm, and roughness Rz ≤ 120. If the panel strength is insufficient, reinforcement ribs must be added, otherwise the IP65 sealing effect cannot be guaranteed.

2.2 Fixed method

Use the randomly attached snap fastener to secure the screw (internal hexagon M4 × 25, galvanized). Fixed steps:

Insert the device into the opening from the front.

Hook the buckle into the opening on the side of the shell and rotate the screw to make it contact the inner wall of the panel.

Install all buckles in diagonal order (4 for 3.5 inches, 6 for 5.7 inches, and 8 for 7.0 inches).

Tighten the screws alternately with a torque of ≤ 0.1 Nm (0.86 lb in) to ensure even compression of the sealing gasket.

Attention: If the screw torque is too high, it will damage the housing, and if it is too low, it will not meet IP65. After installation, check if the sealing gasket fits snugly around.

Electrical Connection: Power and Grounding

3.1 Power Requirements

XV-102 requires 24 VDC SELV/PELV safety extra low voltage power supply. The power parameters are as follows:

Effective voltage range: 19.2 V~30.0 V (-20%/+25%)

Absolute limit (including ripple): 18.0 V~31.2 V

When powered by batteries: 18.0 V~31.2 V (-25%/+30%), allowing 35 V to last<100 ms

Capable of withstanding voltage drops of ≤ 10 ms (compliant with IEC 61131-2)

power waste:

3.5 "basic model: maximum 5 W; increases 2.5 W when connecting USB devices

5.7 "/7.0" basic model: maximum 7 W; increases 2.5 W when connecting USB devices

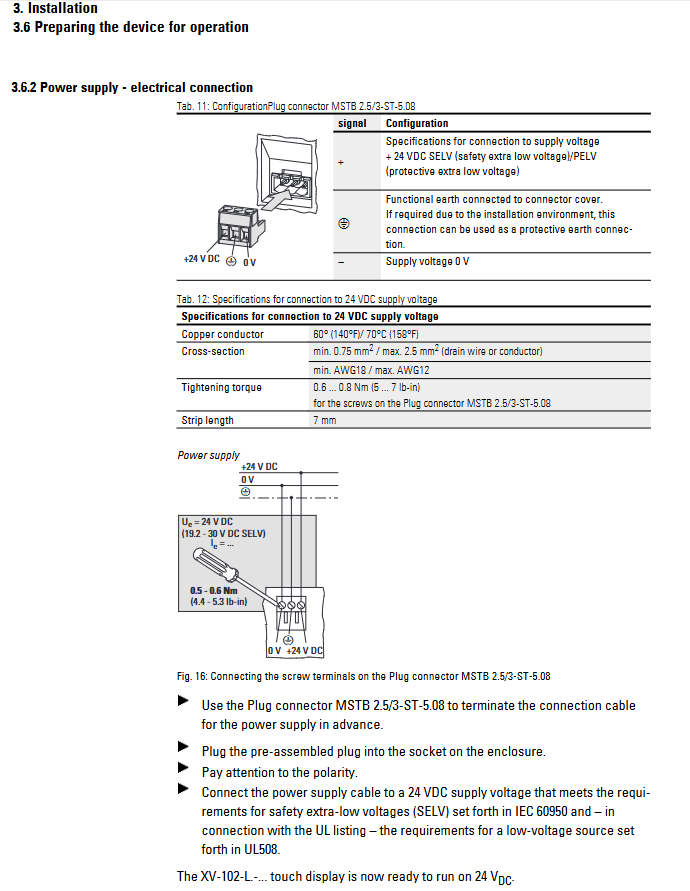

Wiring terminal: The accompanying plug-in terminal model is MSTB 2.5-3-ST-5.08, and the wiring requirements are:

Copper wire, temperature resistant to 60 ℃/70 ℃

Wire diameter: 0.75 mm ²~2.5 mm ² (AWG18~AWG12)

Stripping length: 7 mm

Terminal screw torque: 0.6~0.8 Nm (5~7 lb in)

Polarity: The terminal identification "+" is connected to 24V, and "-" is connected to 0V. The device has built-in anti reverse protection, but long-term reverse connection may still cause damage and should be avoided.

3.2 Functional Grounding

The power supply part of the device is not isolated, and the functional grounding (FE) is only connected to the connector housing, not 0V. The plastic housing itself is not charged. To meet EMC requirements, it is recommended to connect the FE terminal to the central grounding point through a short and low impedance wire. In ship applications, additional power filters (such as Eaton XT-FIL-1 or XT-FIL-2) must be used to meet EMC Class B.

Interface configuration and wiring specifications

The interface configuration of XV-102 depends on the specific model (distinguished by the "L3/L4/L5/L6" in the order number). All models come standard with one Ethernet port and one USB Host port. Optional interfaces include RS-232, RS-485, and CAN.

4.1 USB interface

Type: USB 2.0 Host, A-port, not isolated

Output capacity: 500 mA (full power)

Usage: Only used for maintenance work (such as uploading/downloading programs, data backup), not recommended for long-term connection of commercial peripherals in industrial sites (their EMC immunity may be insufficient)

Cable: Shielded cable, maximum length 5 meters

4.2 Ethernet interface

RJ45， 8 needles, CAT5e/6，10/100 Mbps

LED indicator light: green constant light indicates LINK has been established, yellow flashing indicates data transmission

Shielded twisted pair (STP) must be used

Mechanical protection: Avoid strong vibration or pulling on the RJ45 plug, otherwise it may damage the connector or affect communication

4.3 RS-232 serial port (COM1)

Interface: 9-pin SUB-D male, non isolated, UNC nut for locking

The relationship between maximum baud rate and line length:

2.5 m → 115200 bit/s

5 m → 57600 bit/s

10 m → 38400 bit/s

15 m → 19200 bit/s

30 m → 9600 bit/s

Shielded cables must be used, and the shielding layer should be connected to the connector housing with low impedance

4.4 RS-485 serial port (COM2)

Interface: 9-pin SUB-D male, not isolated

Characteristic impedance: 120 Ω (allowing 108~132 Ω)

Maximum line length: 1200 meters

Supporting baud rates: 9600/19200/38400/57600/115200 bit/s

Bus topology: Each segment can have up to 32 nodes, and each end must be connected to a 120 Ω terminal resistor (between pins 3 and 7). No more than two terminal resistances are allowed. The use of repeaters can expand the number of nodes and line length.

Shielded twisted pair cables should also be used, with the shielding layer grounded.

4.5 CAN interface

Interface: 9-pin SUB-D male, non isolated, in compliance with CiA standards

Pin allocation: Pin 2 (CAN_L), Pin 7 (CAN_S), Pin 3 and Pin 6 are interconnected internally (CAN-GND and GND)

Cable requirements:

Impedance 120 Ω (108~132 Ω)

Capacitance<60 pF/m

The wire diameter is selected according to the wire length: 100m → 0.25 mm ², 250m → 0.34 mm ², 500m → 0.75 mm ²

Maximum baud rate and line length:

25 m → 1000 kbit/s

50 m → 800 kbit/s

100 m → 500 kbit/s

250 m → 250 kbit/s

500 m → 125 kbit/s (can also be set to 100 kbit/s by software)

1000 m → 50 kbit/s

2500 m → 20 kbit/s

5000 m → 10 kbit/s

Both ends of the bus must be connected with 120 Ω terminal resistors (between pins 2 and 7). No external device power supply is provided.

4.6 Cable Shielding and EMC

To meet the EMC requirements of industrial environments, all communication cables must use shielded cables. Separate ferrite magnetic rings (such as Wirth STAR-RING or STAR-GAP) can be installed within 20 cm of the device connector to further suppress interference. In addition, all screws or clips of plug-in connectors should be tightened to improve shielding continuity.

The Use and Data Protection of SD Cards

XV-102 provides an SD/SDHC card slot (compliant with SDA 2.0 specifications). SD cards can be used for extended storage or data recording.

5.1 Insertion and Removal

Insert: Push the SD card into the slot until you hear a "click" lock sound. The card has anti reverse insertion design, do not forcefully insert it.

Remove: Push inward until the card pops out, then pull it out. The SD card must be inserted or removed when the device is powered off, otherwise it may result in data loss or card damage.

5.2 Data Protection Precautions

The write life of the internal memory, SD card, and USB flash drive of the device is limited, and frequent small data write operations should be avoided.

If a voltage drop occurs during the writing process, it is highly likely to cause file system damage or data loss. Therefore, before turning off the device power, ensure that no program is performing write operations on the SD card.

Common faults and solutions

The following table summarizes the most common fault phenomena and troubleshooting strategies of XV-102 during on-site use:

Possible causes and solutions for the fault phenomenon

The device cannot start (black screen) without 24V power supply. Check the input wiring and measure the power supply voltage; Confirm that the power switch is closed

Touch without response or inaccurate response, touch not calibrated; Touch function disabled, enter system settings to recalibrate touch screen; Check the touch enable options in the software

Communication failure (RS-485/CAN) missing terminal resistance; Cable too long or impedance mismatch; Confirm that a 120 Ω resistor has been connected to both ends of the bus due to poor shielding grounding; Check if the wire length exceeds the specifications; Use shielded cables and ground them correctly

The Ethernet LINK light is not on, and the network cable is disconnected or has poor contact; The other party's device has not been powered on to replace the network cable; Check the power supply of the switch or PLC

SD card cannot recognize card format and is not supported; poor contact; Card damage using FAT32 format; Re plug and unplug; Replace genuine SD/SDHC card

The device frequently restarts or crashes, and the power supply voltage fluctuates beyond the allowable range; Measure whether the 24V voltage is stable when the ambient temperature is too high; Check if the temperature inside the cabinet exceeds 50 ℃; Improve ventilation

Maintenance and battery replacement

XV-102 is designed for maintenance free use, but the following tasks may need to be performed:

Clean the touch screen: Use a clean, soft, and slightly damp cloth to wipe it. It is strictly prohibited to use sharp objects (such as knives, screwdrivers) or corrosive cleaning agents to prevent scratching the resistance touch surface or liquid infiltration into the equipment.

Touch calibration: If the touch response deviates, it can be recalibrated through the system menu.

Real time clock battery: Equipped with a built-in lithium battery (model CR1025 or BR1225), it can usually maintain clock data for about 10 years (25 ℃) under power-off conditions. The battery cannot be replaced by the user. If replacement is required, the manufacturer or authorized center must be contacted. Incorrect operation of the lithium battery inside the device may cause an explosion, and it is strictly prohibited to open the casing by oneself.

Transportation, storage, and disposal

Transportation: Always use the original packaging to avoid strong vibrations or mechanical impacts. The internal components of the equipment are sensitive to impact.

Storage: Comply with environmental conditions of -20 ℃~+60 ℃ and no condensation. If the device is moved from a cold environment to a warm environment, condensation may occur and it must wait for complete drying before being powered on.

Disposal: Waste equipment must be professionally recycled in accordance with local electronic waste regulations. The shell material is halogen-free PC-GF, and the lithium battery needs to be separately removed and treated as hazardous waste.
