Industrial Control System Upgrade and Diagnosis: Deep Practice of CV Series PLC Platform

In the long river of industrial automation, upgrading and maintaining control systems is the cornerstone of ensuring the continuous and efficient operation of production lines. Faced with the challenges of technological iteration and spare parts discontinuation, how to safely and efficiently migrate the old C-series PLC system to the more powerful CV series platform, and master an effective fault diagnosis method, is a task that every automation engineer must overcome. This article will explore in depth the system upgrade and diagnostic practices based on the CV series PLC from three dimensions: system compatibility, memory and instruction planning, and professional diagnostic techniques.

From C Series to CV Series: A Systematic Migration Project

Migrating mature C-series control systems to CV series is not a simple hardware replacement. This is a system engineering project that requires careful planning, with the core of understanding the differences between the two series in architecture, memory allocation, and instruction set, and developing a detailed 'compatibility roadmap'.

1. Hardware compatibility: selection of core components

Not all C-series units can continue to be used in CV series systems. Successful migration begins with a precise evaluation of the hardware. CPU、 The core components such as power supply and backplane must be replaced with CV series dedicated models, which is the foundation for building a new system. For example, the CV500/CV1000/CV2000 series CPUs offer local I/O capacities ranging from 512 points to 2048 points, and support mixed programming of SFC (Sequential Function Diagram) and ladder diagram, which is unmatched by early C-series CPUs.

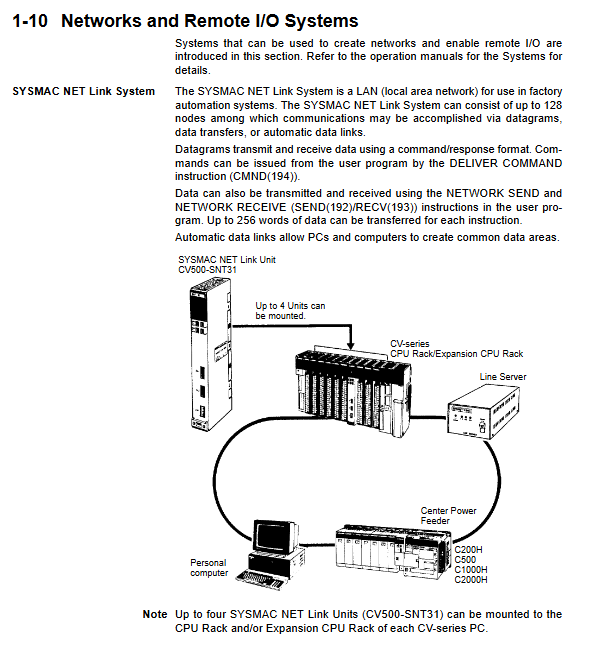

However, in order to maximize the protection of existing investments, many I/O units and some special I/O units can continue to be used. 16 point, 32 point, and even 64 point ordinary I/O units have good backward compatibility. However, it should be noted that specific models of ASCII units such as C500-ASC03 are not compatible. In addition, the units of the SYSMAC BUS remote I/O system can continue to be used, but more advanced SYSMAC BUS/2 systems must use CV series dedicated master station units.

2. Memory Planning: Understanding New Data Boundaries

The CV series introduces a more complex and refined memory structure than the C series. Before performing program conversion, it is necessary to re plan your data memory. Here are several key memory areas and their application points:

CIO (Core I/O) area: This is the bridge between PLC and the physical world for interaction. In the CV series, the CIO area is subdivided into multiple sub areas such as I/O area, workspace, SYSMAC BUS/2 area, link area, and hold area. When upgrading, it is necessary to remap the IR (internal relay) and SR (special relay) addresses in the original C-series program to the corresponding CIO area addresses in the CV series. For example, the hold function in the original program should be mapped to the hold area from CIO 1200 to CIO 1499.

DM (Data Memory) and EM (Extended Data Memory) areas: The DM area is the main data storage area, and CV1000 and above models provide a 24K word DM area. For applications that require processing large amounts of data, the CV1000/CV2000 series supports optional EM units, providing up to 256K words (divided into 8 banks) of expandable storage space. This is a huge advantage that allows engineers to store recipe data, historical records, etc. in separate banks, dynamically switching through EMBC (171) instructions, greatly optimizing data management.

Index and Data Register: The CV series introduces IR0-IR2 and DR0-DR2, powerful tools that the C series does not have. They support indirect addressing, automatic increment, and decrement addressing. When upgrading complex data processing algorithms, utilizing these registers can greatly simplify the program and improve execution efficiency. For example, processing an array containing 100 elements using IR for indirect addressing is much more elegant and efficient than writing 100 MOV instructions.

The Evolution of Instruction Sets and the Art of Programming Optimization

The instruction set of the CV series has been greatly expanded and optimized based on the C series, and mastering these new instructions is the key to unleashing the performance of the new platform.

1. Say goodbye to the "middle" command: innovative input comparison

In C-series programming, a common pattern is to first use a CMP (Compare) instruction, and then trigger subsequent actions based on status flags (such as 25505, 25506). This requires additional instructions and intermediate bits.

The CV series (especially CVM1 version 2) introduced a revolutionary "input comparison command". These instructions can be directly concatenated in the conditions of the ladder diagram, making the program logic more intuitive.

For example, to achieve an output that lights up when the value of D00100 is greater than D00200, in the C series, it may be necessary to:
