1. Introduction to Baldor FlexDrive II Systems

The Baldor FlexDrive II and Flex+Drive II series represent a pinnacle in high-performance AC servo driver technology[cite: 345]. Designed for versatility in industrial automation, these drivers integrate seamlessly with various motion control architectures, providing precision torque, speed, and position control[cite: 369].

These units are characterized by their integration with Mint™ technology, Baldor’s proprietary motion control language[cite: 389]. Whether utilized in a single-axis configuration or as part of a multi-drop RS485 network, the FlexDrive II offers robust features like preset moves and local PLC tasks to reduce the load on primary controllers[cite: 363].

2. Technical Specifications & Power Requirements

Understanding the power architecture is critical for a safe installation. The FlexDrive II series supports both single-phase and three-phase AC inputs depending on the "Package Size"[cite: 353].

Power Input Configurations

• Single-Phase (Sizes A, B, C, D): Ideal for smaller precision applications[cite: 353].

• Three-Phase (Sizes E, G, H): Designed for heavy-duty industrial loads requiring higher current output[cite: 353].

• Logic Supply: Supports a customer-supplied external 24VDC control supply to maintain logic and communication even when main AC power is disconnected[cite: 353, 367].

Environmental Constraints

To ensure long-term reliability, the driver must be mounted in an environment that meets specific temperature and air quality standards[cite: 367]. Vertical mounting is mandatory to facilitate natural convection, and specific clearance dimensions (refer to manual section 3.2.2) must be maintained to prevent overheating[cite: 353].

3. Feedback and I/O Interfacing

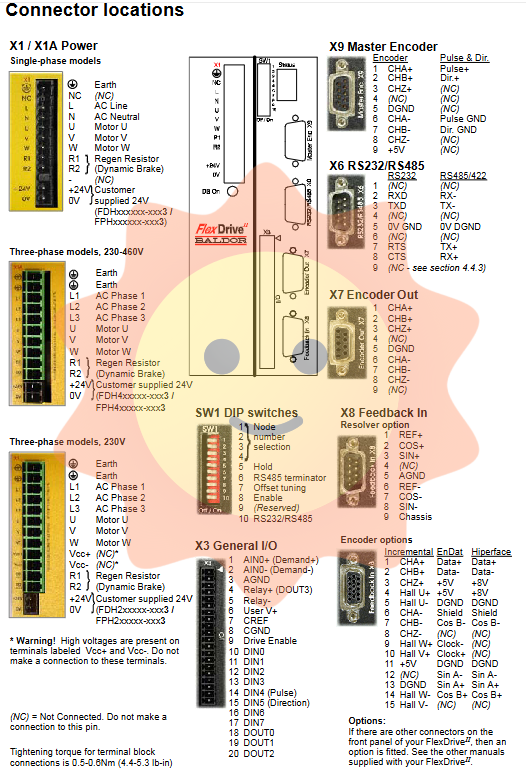

The FlexDrive II is highly adaptable, supporting a wide array of feedback devices via the X8 connector[cite: 353].

Digital and Analog I/O (X3 Connector)

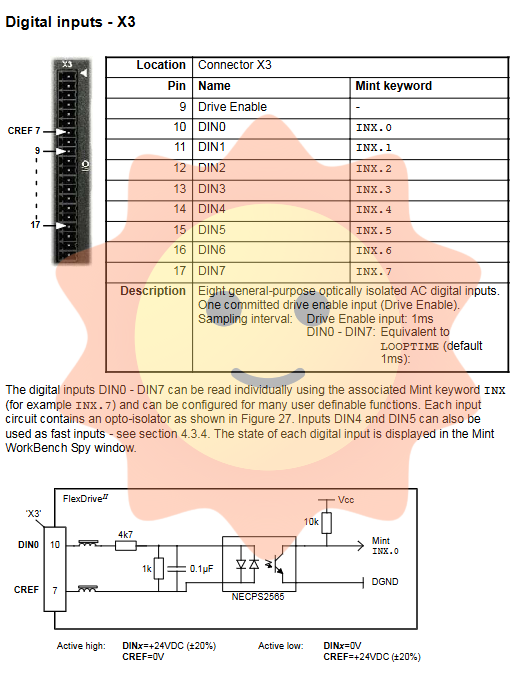

The X3 interface provides the primary point for external command signals. It includes a 14-bit analog input for demand signals, several digital inputs, and a relay output for status or fault monitoring[cite: 353, 367]. Note that digital inputs DIN4 and DIN5 can be specially configured for pulse and direction or high-speed capture tasks[cite: 361].

4. Software Commissioning via Mint WorkBench

The primary tool for configuring the FlexDrive II is the Mint WorkBench software suite[cite: 363]. This PC-based interface allows for deep parameter access and real-time system monitoring.

The Commissioning Wizard

The integrated Commissioning Wizard guides the engineer through the essential setup steps: motor selection, feedback configuration, and initial drive enablement[cite: 363]. It is highly recommended to perform a "Test Move" within the software before allowing the system to be controlled by an external PLC[cite: 363].

Fine-Tuning & PID Adjustment

For high-dynamic applications, the Fine-Tuning Tool provides a graphical interface to adjust the Proportional, Integral, and Derivative (PID) gains for the current, velocity, and position loops[cite: 363, 369]. Proper tuning minimizes overshoot and ensures stability across the entire speed range.

5. Troubleshooting and Fault Diagnosis

The FlexDrive II features a 7-segment status display that provides immediate feedback on system health[cite: 363].

• Steady Digit: Indicates the current operation mode or that the drive is enabled[cite: 363].

• 'E.' followed by a number: This indicates an error code. Common errors include over-voltage, over-current, or feedback failure[cite: 363].

• SupportMe Feature: Mint WorkBench includes a "SupportMe" utility that generates a comprehensive diagnostic report, including parameter settings and recent error logs, which can be sent to Baldor technical support for rapid resolution[cite: 363].
