1. Introduction to MotiFlex e100 Architecture

The Baldor MotiFlex e100 is a versatile, high-performance AC servo drive engineered for the demanding requirements of modern industrial automation. As a core component of the Baldor motion control suite, it provides a unified platform for controlling both rotary and linear motors with exceptional precision.

The e100 series is distinguished by its "e-suffix," signifying its deep integration with real-time Ethernet technologies. Unlike traditional analog or pulse-based drives, the MotiFlex e100 acts as a sophisticated node within an intelligent automation network, capable of handling complex multi-axis synchronization while maintaining local control loops.

2. Ethernet POWERLINK Integration

A standout feature of the MotiFlex e100 is its native support for Ethernet POWERLINK. This open-standard, real-time protocol allows the drive to communicate with a Motion Coordinator (such as the NextMove e100) at microsecond cycle times.

3. Hardware Installation & Physical Specifications

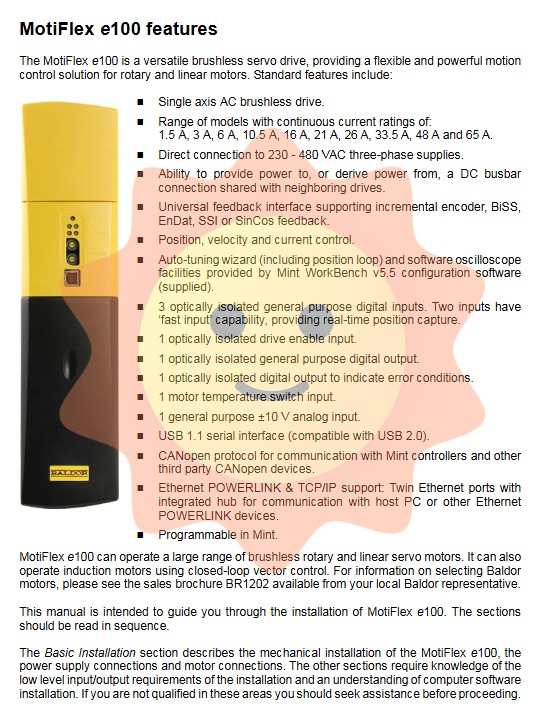

Proper mechanical installation is the foundation of system reliability. According to the MN1943 manual, the MotiFlex e100 must be installed in a clean, dry, and controlled environment (Pollution Degree 2).

Mechanical Mounting

Drives must be mounted vertically on a flat, solid, non-flammable surface. This ensures that the internal heat-sink and cooling fans (where applicable) can effectively manage thermal dissipation. Minimum clearance requirements are essential: typically 100mm (4 inches) at the top and bottom to allow for adequate airflow.

Environmental Standards

The MotiFlex e100 is designed to comply with international standards including CE and UL. It operates effectively within a temperature range of 0°C to 45°C without derating. For installations at higher altitudes or in warmer cabinets, specific derating factors must be applied to the output current.

4. Electrical Wiring & Power Connections

Electrical safety and EMI/EMC compliance are paramount. The e100 series supports a wide range of input voltages, typically 115V to 460V AC, depending on the specific model.

Power Stages

• AC Input (L1, L2, L3): Three-phase input is recommended for optimal power balance, though some smaller frames support single-phase operation.

• DC Bus (UDC+, UDC-): Allows for shared bus configurations where energy can be exchanged between motoring and regenerating drives, improving energy efficiency.

• Control Power (24V DC): A separate 24V supply keeps the logic and communication active even if the main high-voltage power is disconnected.

Motor Feedback Interface

The MotiFlex e100 is highly flexible, supporting various feedback types via its universal encoder interface:

5. Commissioning with Mint WorkBench

The configuration of the MotiFlex e100 is performed via Mint WorkBench. This Windows-based software provides a comprehensive suite of tools for setup, tuning, and programming.

The Autotune Wizard

One of the most powerful features of Mint WorkBench is the Autotune Wizard. It automatically identifies motor inertia and load characteristics to calculate optimal PID (Proportional, Integral, Derivative) gains. This significantly reduces commissioning time for complex mechanical systems.

Motion Programming

Beyond basic drive parameters, the MotiFlex e100 can run Mint v5 programs locally. This allows for distributed intelligence, where the drive can handle specific logic, homing routines, or safety limits independently of the master controller.

6. Diagnostics and Troubleshooting

Effective diagnosis is facilitated by the multi-color Status LED and the Mint WorkBench "Spy" window.

Common Fault Indicators

• Overcurrent: Often caused by short circuits in the motor cable or incorrect tuning gains.

• Overvoltage: Occurs during rapid deceleration if a regeneration resistor is not properly sized or connected.

• Communication Timeout: Indicates a loss of synchronization on the Ethernet POWERLINK network.

The SupportMe tool within Mint WorkBench is the first line of defense, generating a detailed snapshot of the drive's state for technical support analysis.
